Digital Clamp Meter | AC Auto-Ranging 400 Amp | Non-Contact Voltage Testing | Backlit LCD Display | by Wattmaster
The Digital Clamp Meter is designed for accurate AC current measurement up to 400 Amps, featuring a non-contact voltage tester and a backlit 2000 count LCD for easy reading in low light. Ideal for electricians and trained personnel, this meter is perfect for electrical testing in residential, commercial, and light-industrial environments, ensuring safety with its CAT III 600 V rating and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter | AC Auto-Ranging 400 Amp | Non-Contact Voltage Testing | Backlit LCD Display | by Wattmaster
Brand: Wattmaster
SKU: A-CL120
Alternatively Known As: Auto-Ranging Clamp Meter, AC Clamp Meter, Digital Current Clamp Meter, NCVT Clamp Meter
Technical Specifications
- AC Current Measurement: up to 400 A
- Voltage Measurement: 600 V AC/DC
- Resistance Measurement: up to 20 MΩ
- Display: 2000 count backlit LCD
- Jaw Size: 1.6 inches (4.1 cm)
- Accuracy: ±1.0% + 3 digits
- Safety Rating: CAT III 600 V, Class 2, Double Insulation
- Drop Protection: 6.6 feet (2 meters)
- Functions: AC current, NCVT, AC/DC voltage, resistance, continuity
- Power: 3 x AAA batteries included
- Dimensions (H x L x W): 38mm x 215mm x 89mm
- Weight: 0.314 kg
Key Features
- Auto-ranging digital clamp meter for AC current and NCVT via clamp

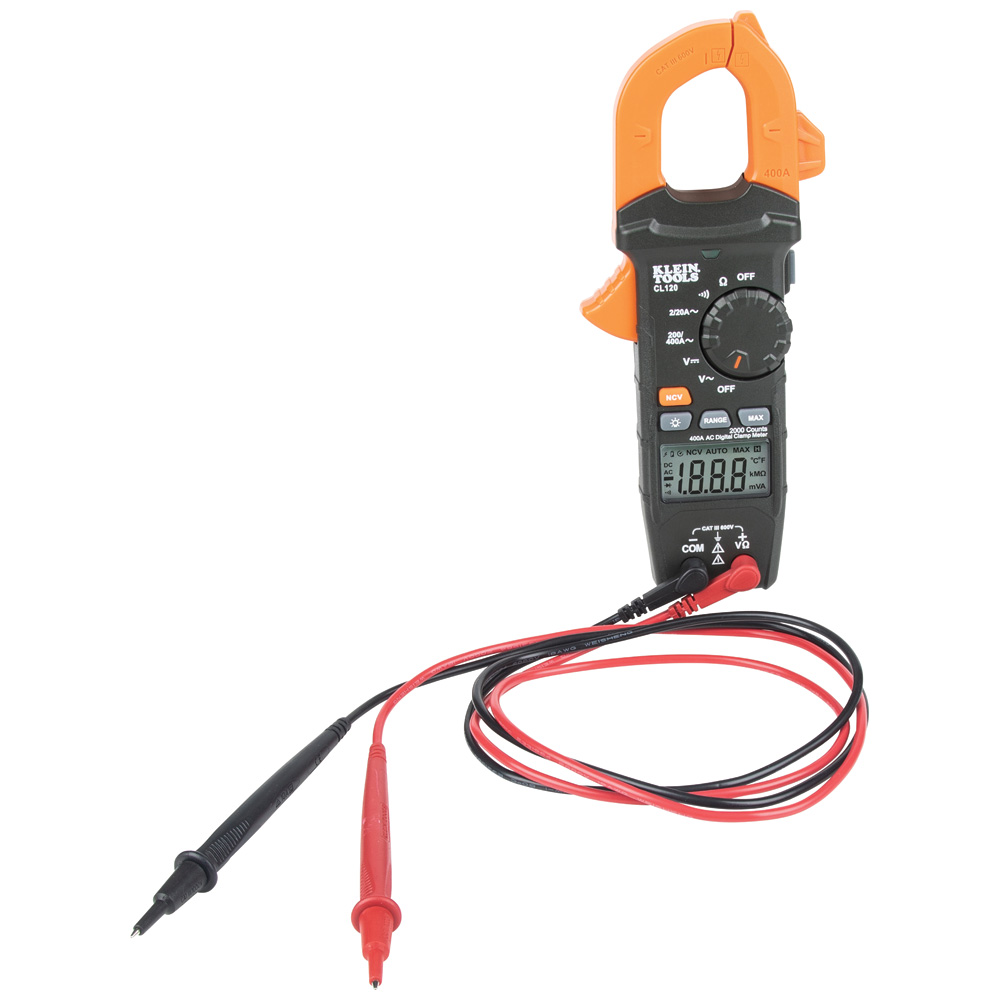

- Measures AC/DC voltage, resistance, and continuity via test leads
- Non-contact voltage tester integrated into clamp jaw

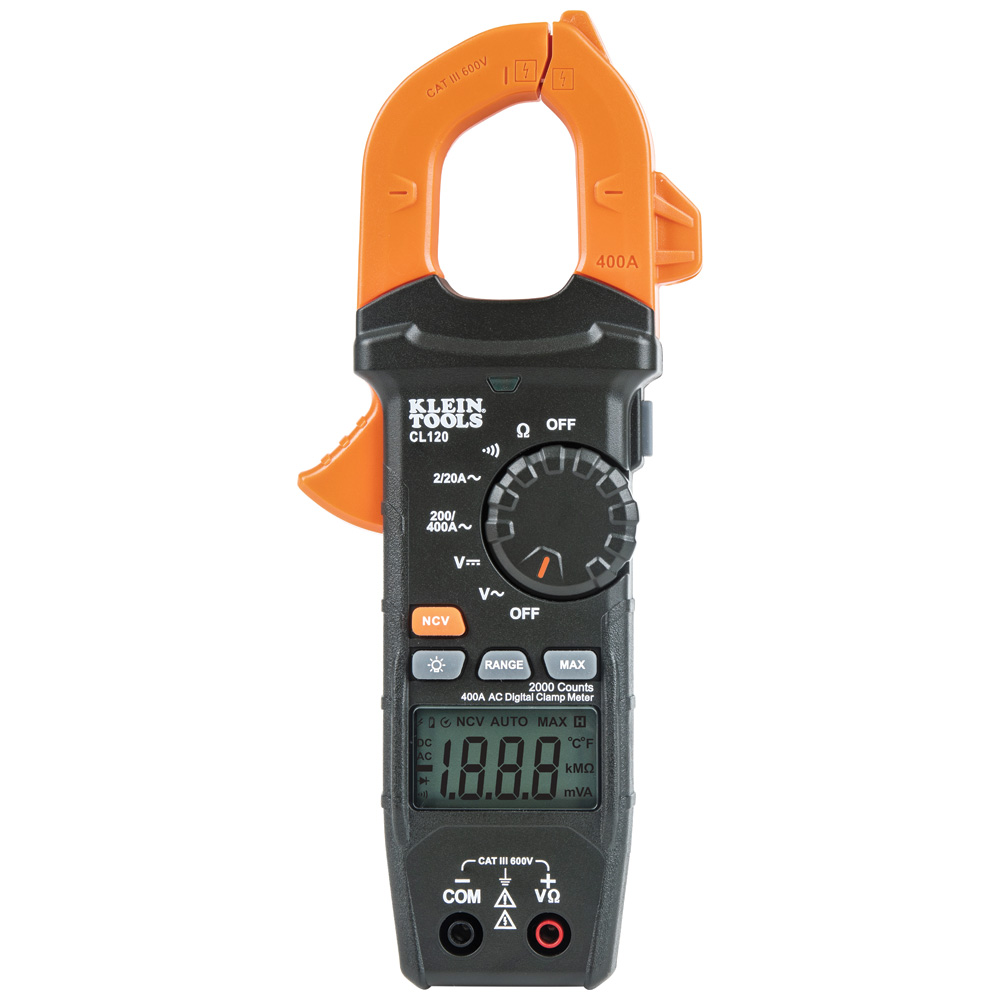

- Backlit 2000 count LCD for easy viewing in low light
- Auto power-off after 10 minutes to conserve battery life
- Durable design with 6.6' (2 m) drop protection
- Test lead holder and optional magnetic hanger for hands-free operation

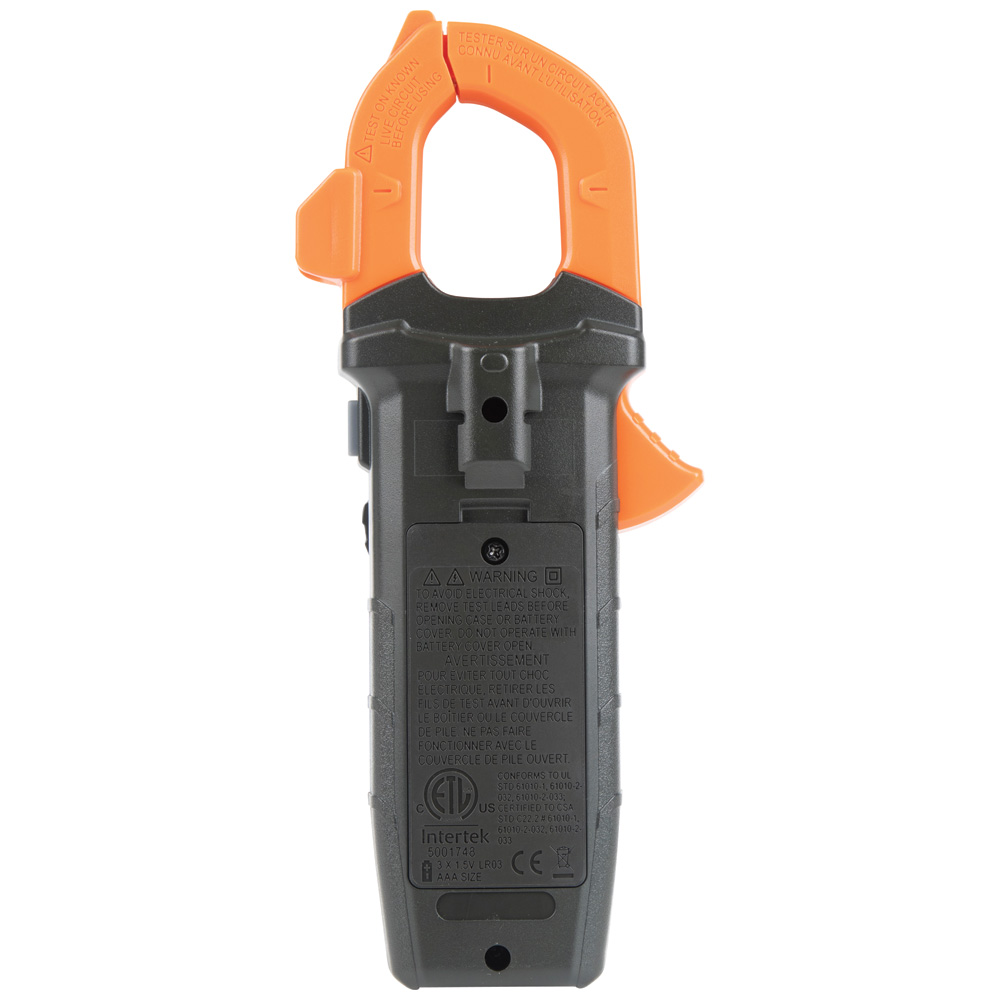

- Low-battery indicator and easily accessible battery compartment
- CAT III 600 V, Class 2, Double Insulation safety rating

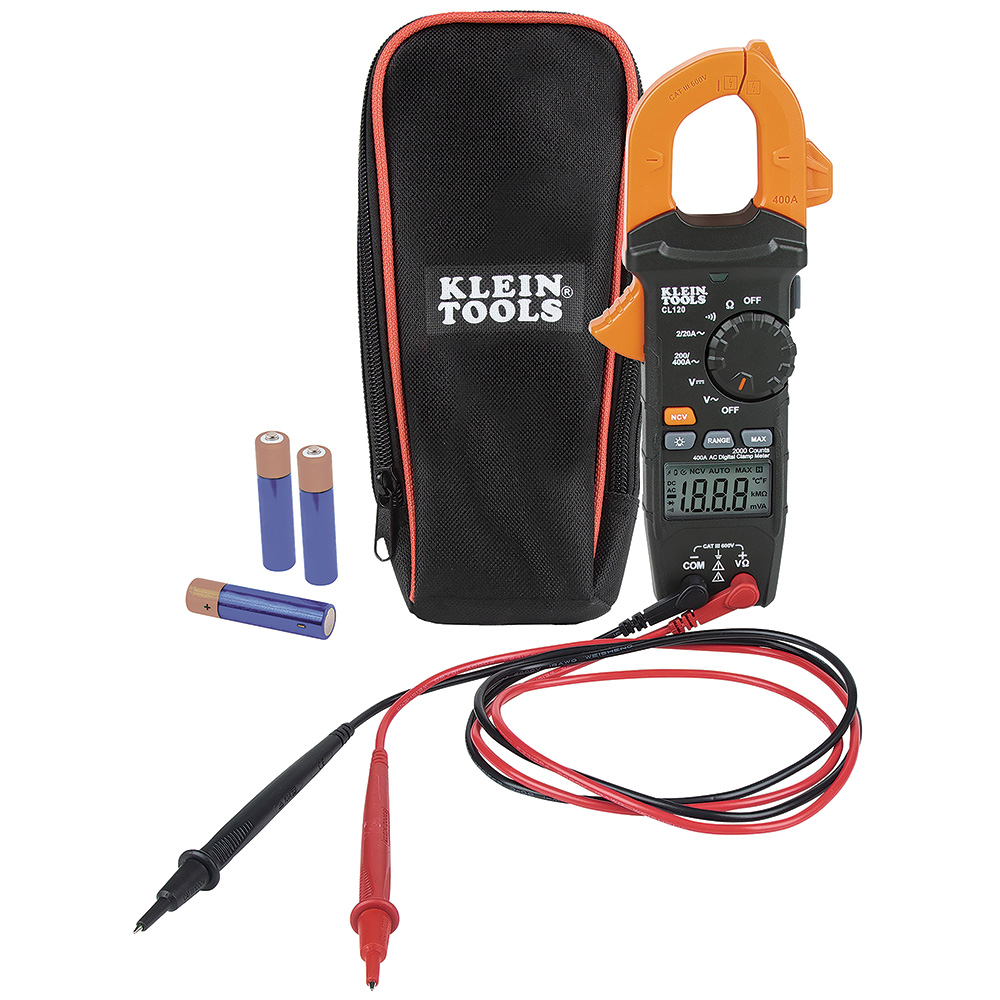

- Includes carrying case, test leads with CAT III/CAT IV safety caps, instructions, and 3 x AAA batteries
Professional Installation Requirements
- No professional installation required; designed for use by electricians and trained personnel following safety instructions.
Applications

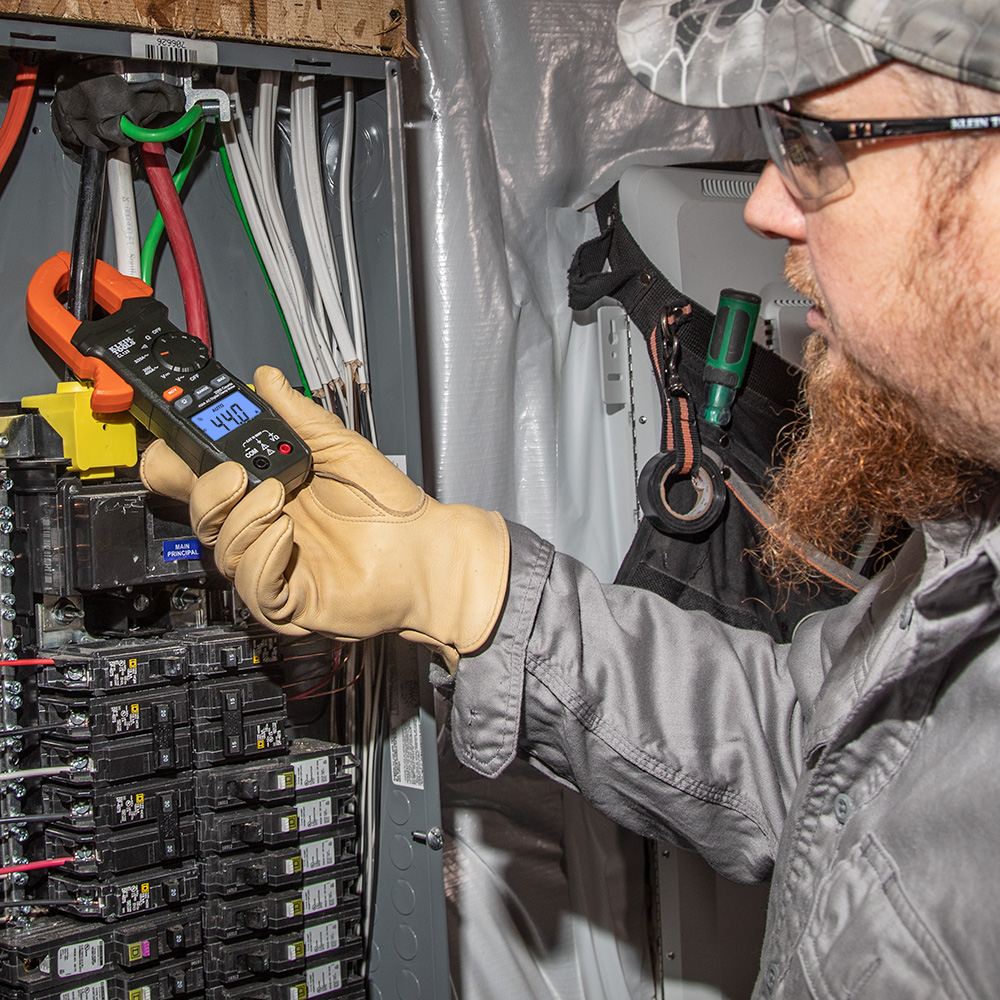

- Electrical testing and measurement in residential, office, and light-industrial environments

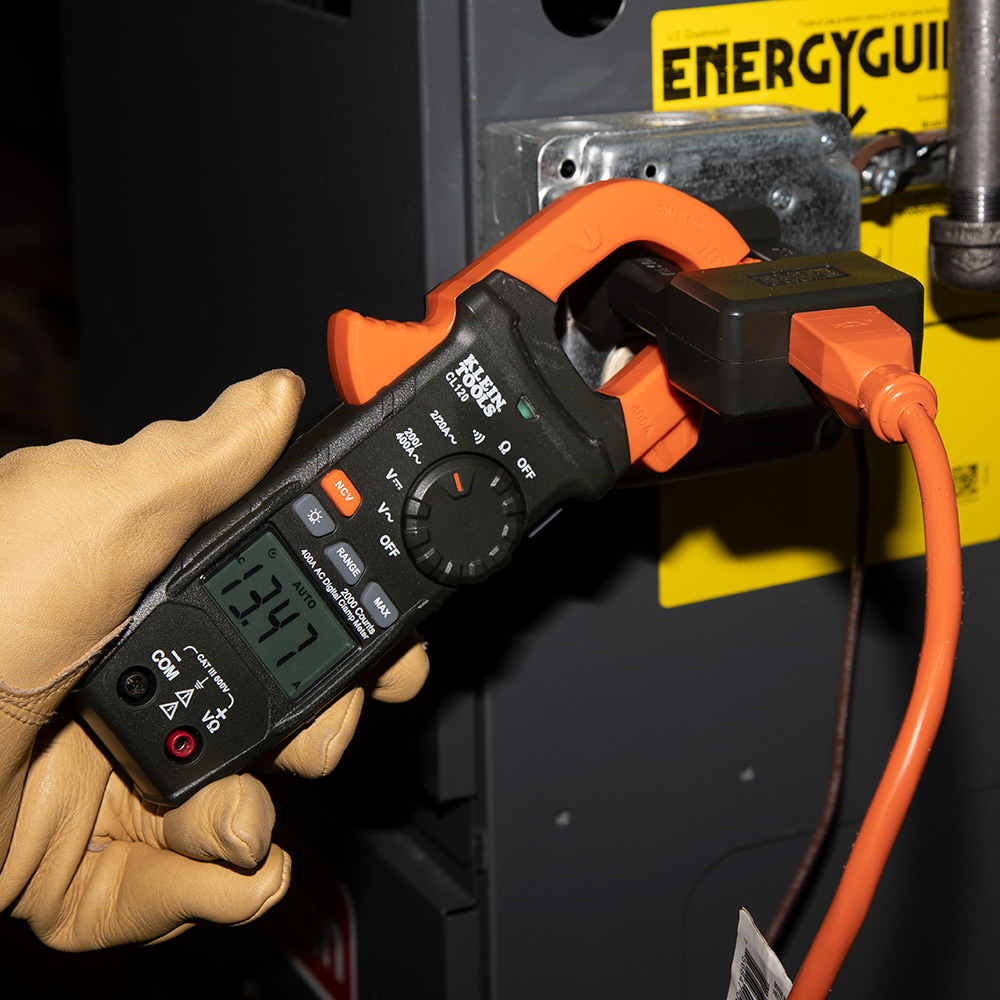

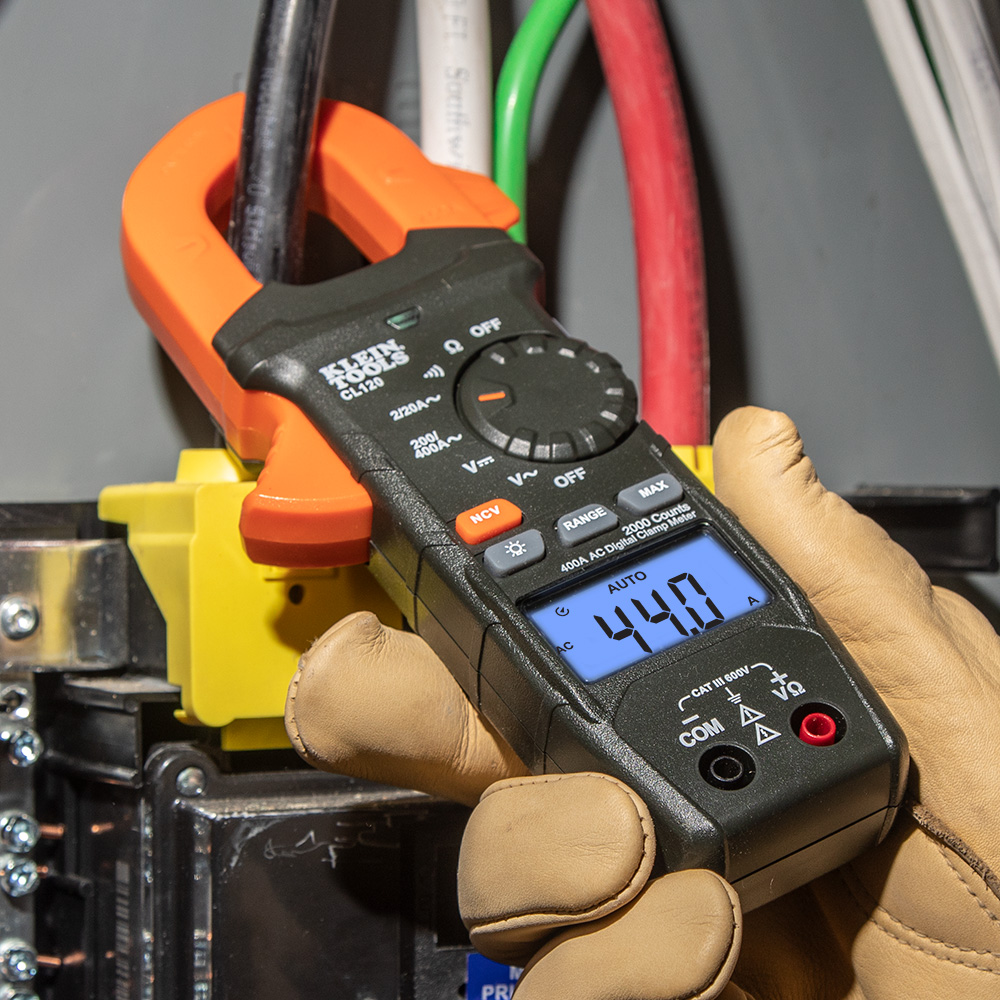

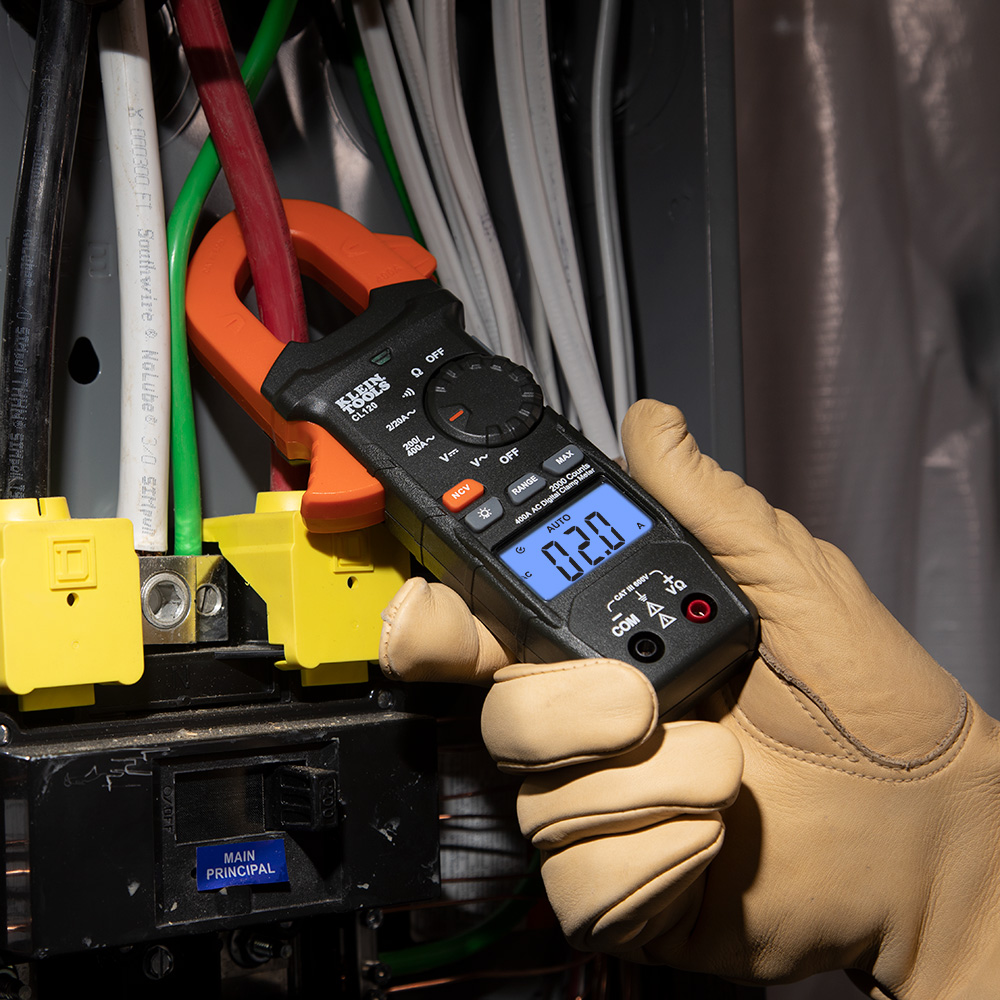

- Measuring AC current and non-contact voltage testing (NCVT)

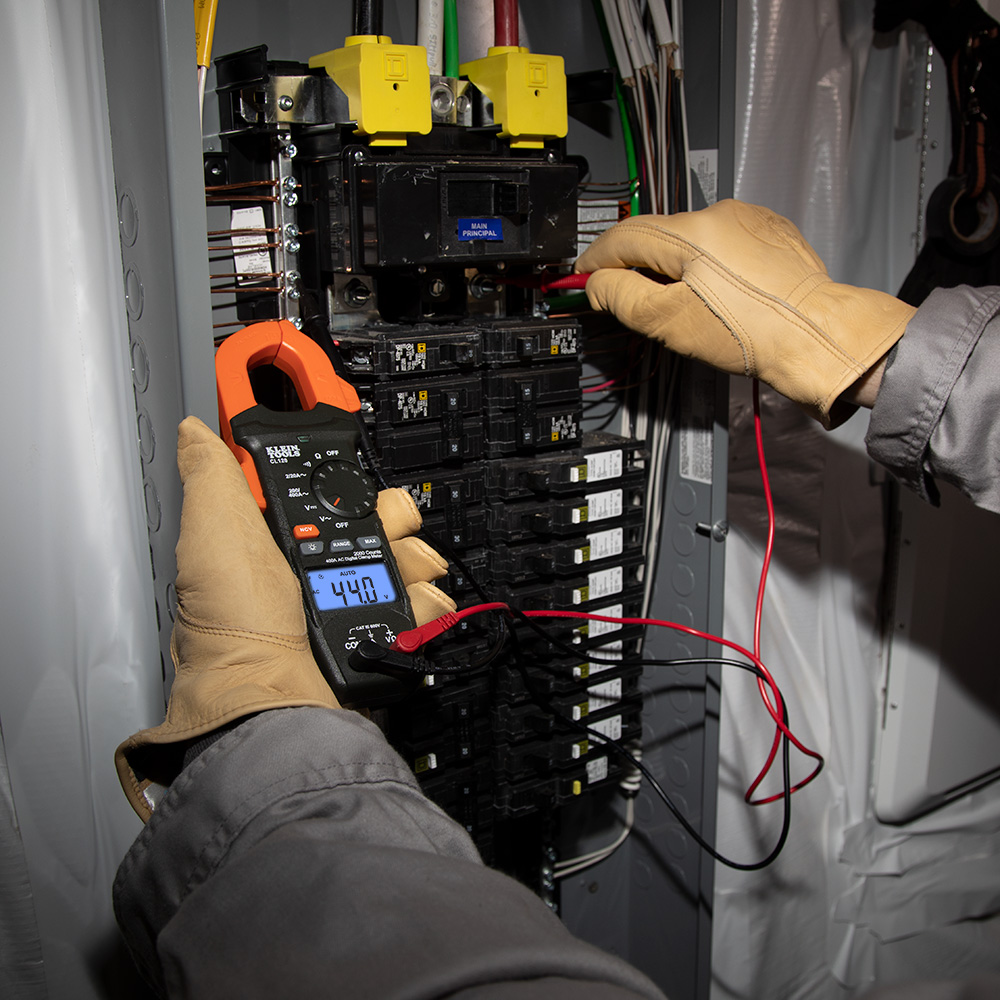

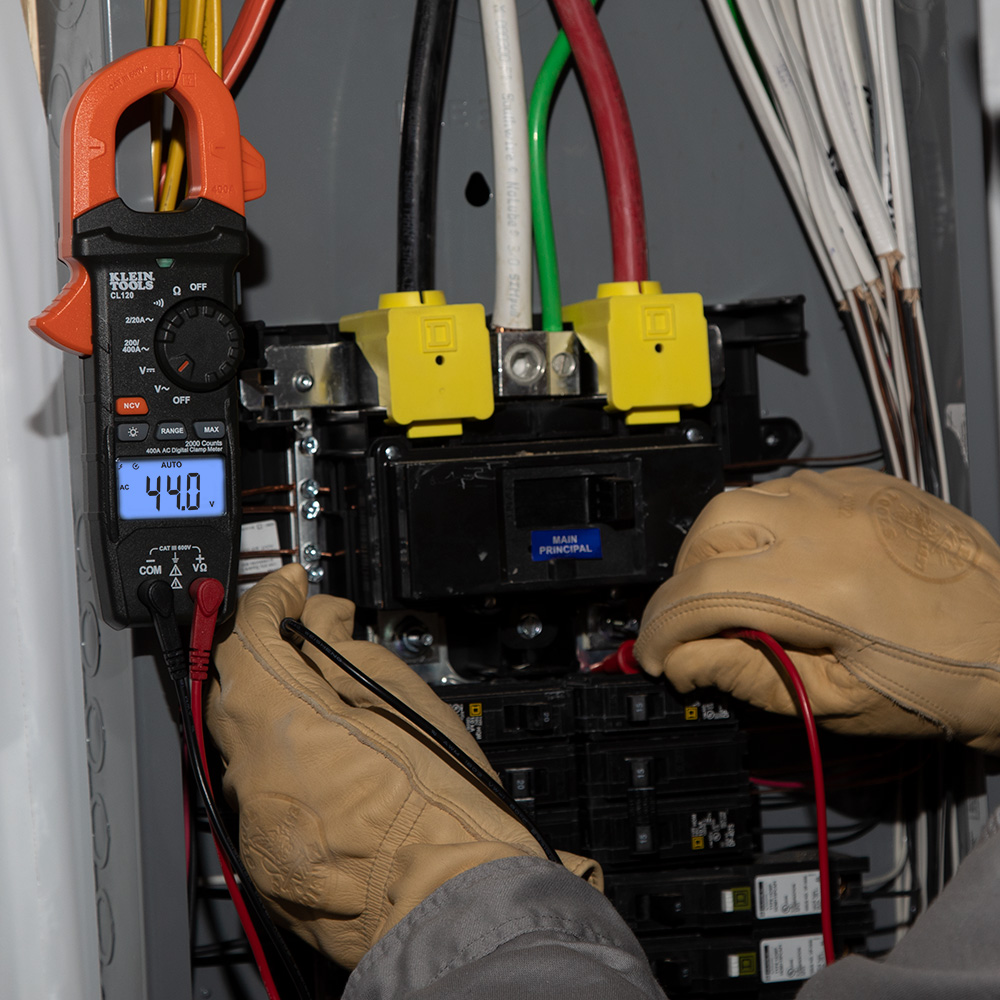

- Measuring AC/DC voltage, resistance, and continuity via test leads
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Auto power-off feature conserves battery life, reducing battery waste
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Digital Clamp Meter AC Auto-Ranging 400 Amp is available now for immediate purchase. Ideal for electrical testing in residential, commercial, and light industrial applications.
