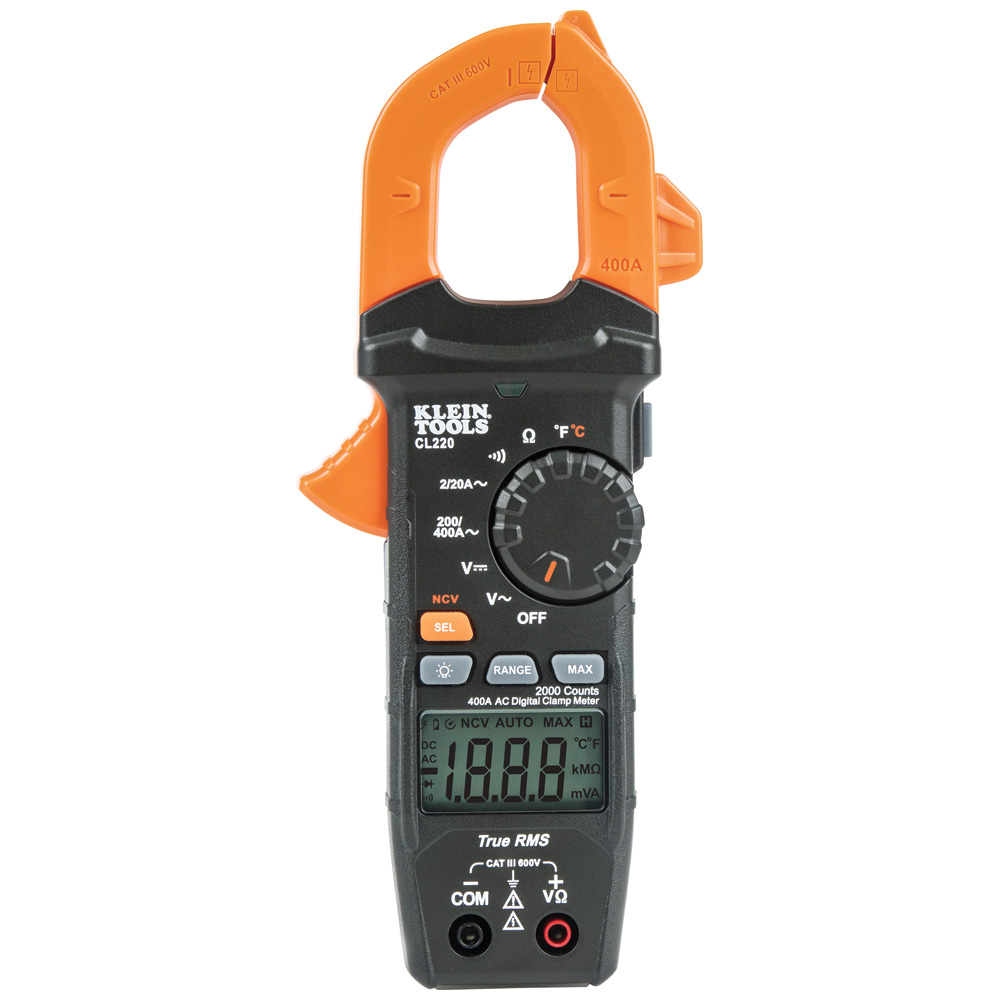

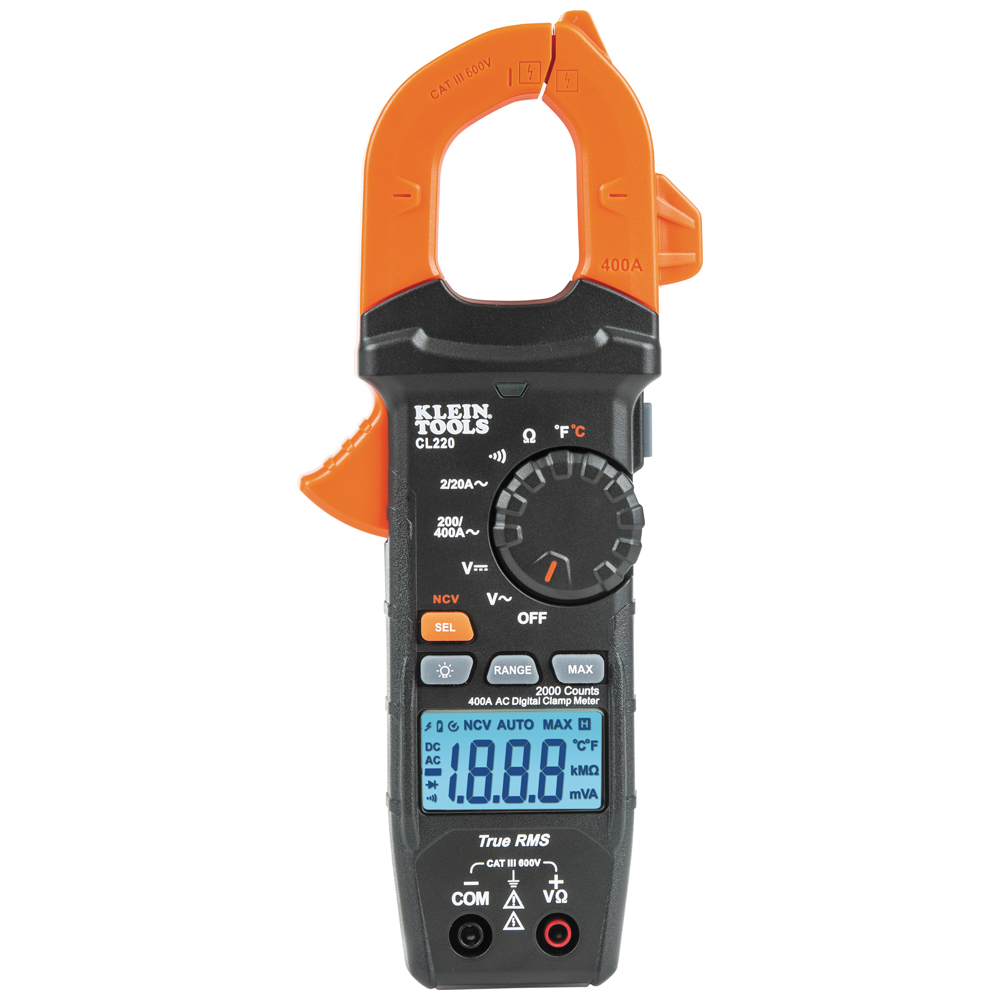

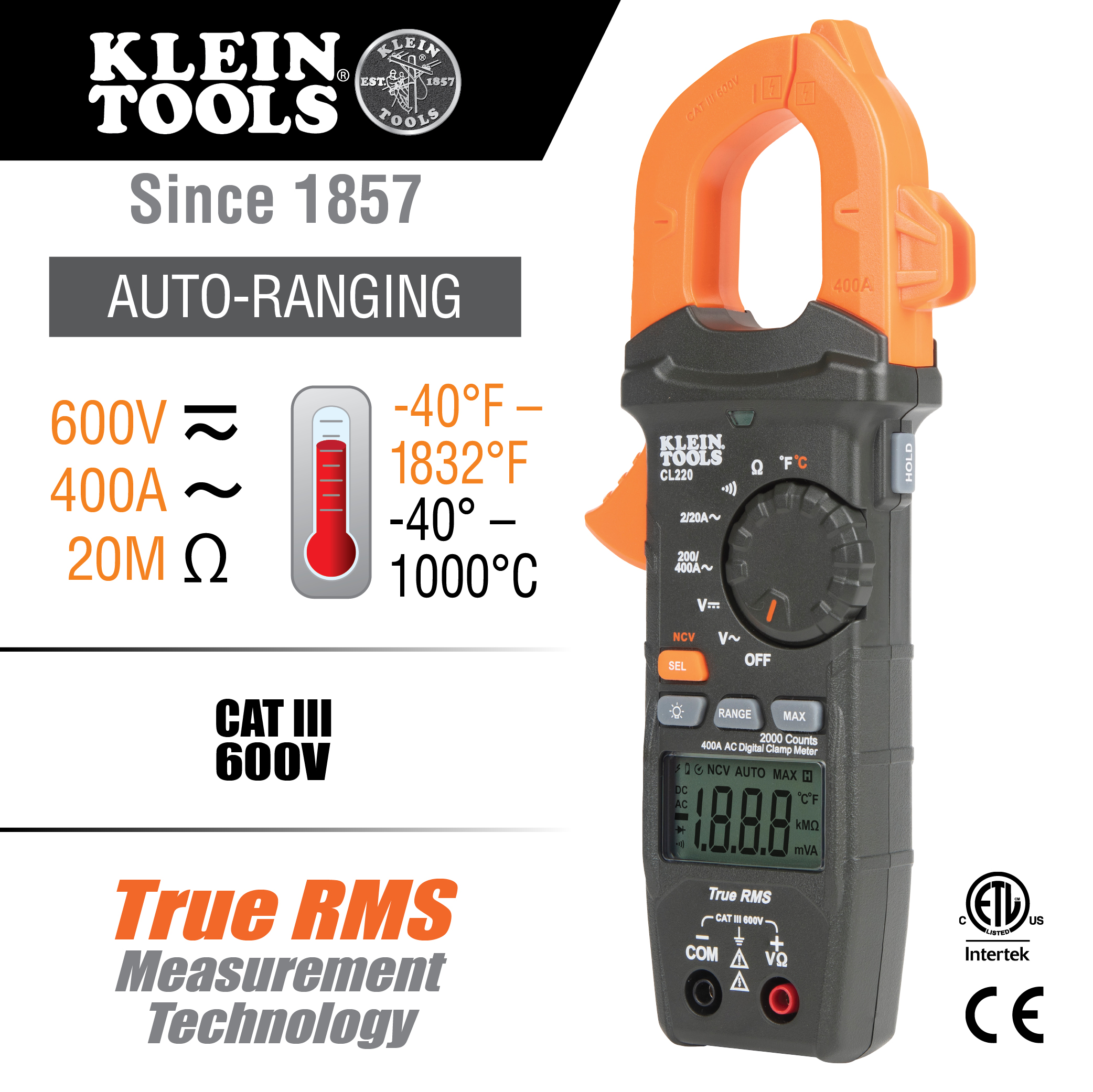

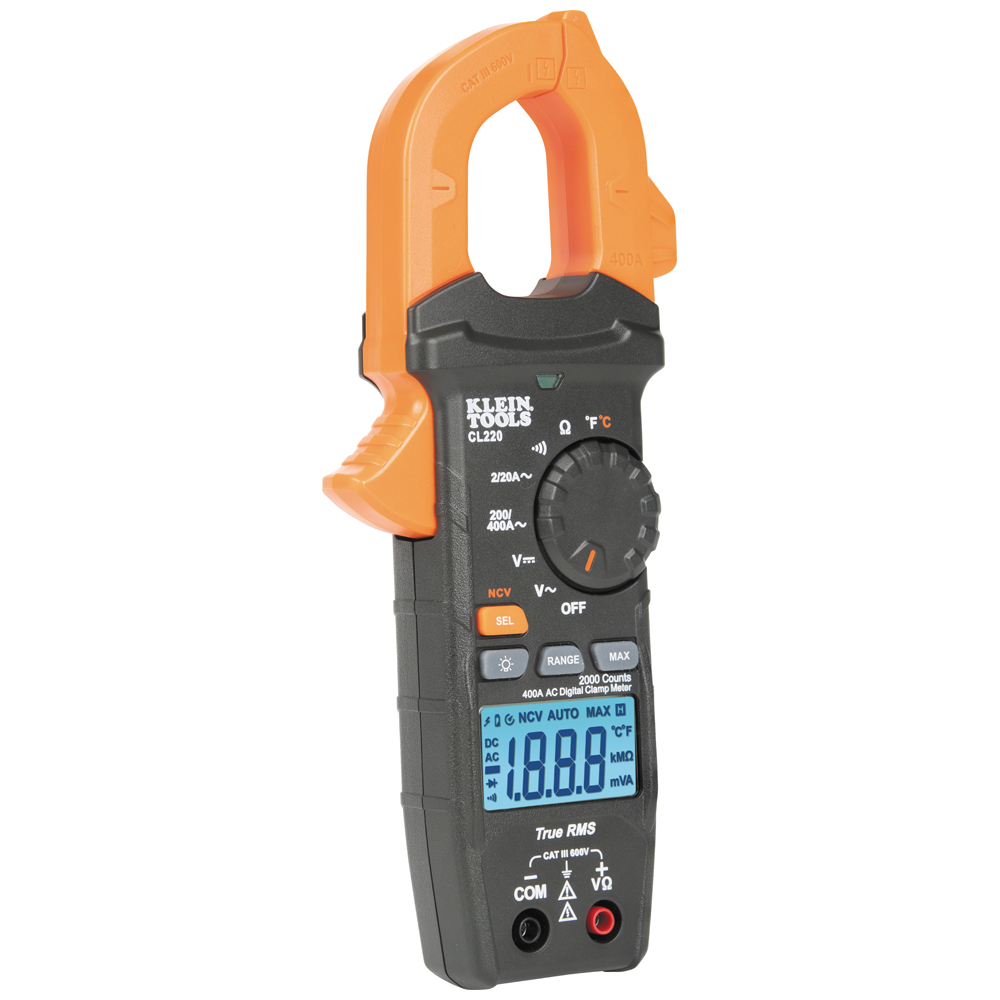

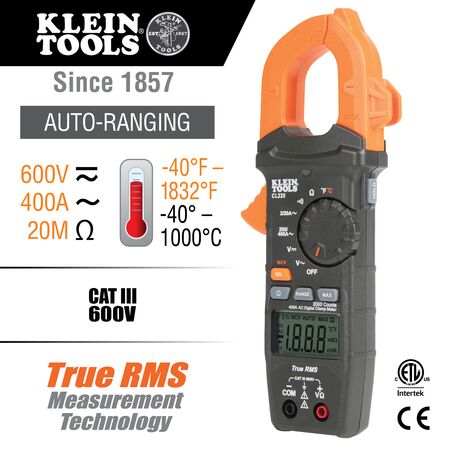

Digital Clamp Meter | AC Auto-Ranging 400 Amp | Non-Contact Voltage Tester | Backlit LCD | @Each by Wattmaster
The Digital Clamp Meter is designed for accurate AC current measurement up to 400 Amps, featuring a non-contact voltage tester and a backlit LCD for easy reading in low light. Ideal for electrical testing and troubleshooting in residential and light-industrial environments, this meter also measures AC/DC voltage, resistance, and temperature, making it a versatile tool for qualified personnel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter | AC Auto-Ranging 400 Amp | Non-Contact Voltage Tester | Backlit LCD | @Each by Wattmaster
Brand: Wattmaster
SKU: A-CL220
Alternatively Known As: Digital Clamp Meter, Auto-Ranging Clamp Meter, TRMS Clamp Meter, AC Clamp Meter with Temperature, Non-Contact Voltage Tester
Technical Specifications
- AC Current Measurement: up to 400 A
- Voltage Measurement: AC/DC up to 600 V
- Resistance Measurement: up to 20 MΩ
- Temperature Range: -40 °F to 1832 °F (-40 °C to 1000 °C)
- Jaw Size: 1.6 inches (4.1 cm)
- Display: 2000 count backlit LCD
- Safety Rating: CAT III 600 V, Class 2, double insulation
- Drop Protection: 2 meters (6.6 feet)
- Power: 3 x AAA batteries
- Dimensions (H x L x W): 38mm x 215mm x 89mm
- Weight: 0.314 kg
Key Features
- Measures AC current and NCVT via clamp, AC/DC voltage, resistance, continuity via test leads, and temperature with thermocouple
- Non-contact voltage tester integrated into clamp jaw
- Backlit LCD for easy viewing in low light
- Auto-ranging True RMS measurement technology for accuracy

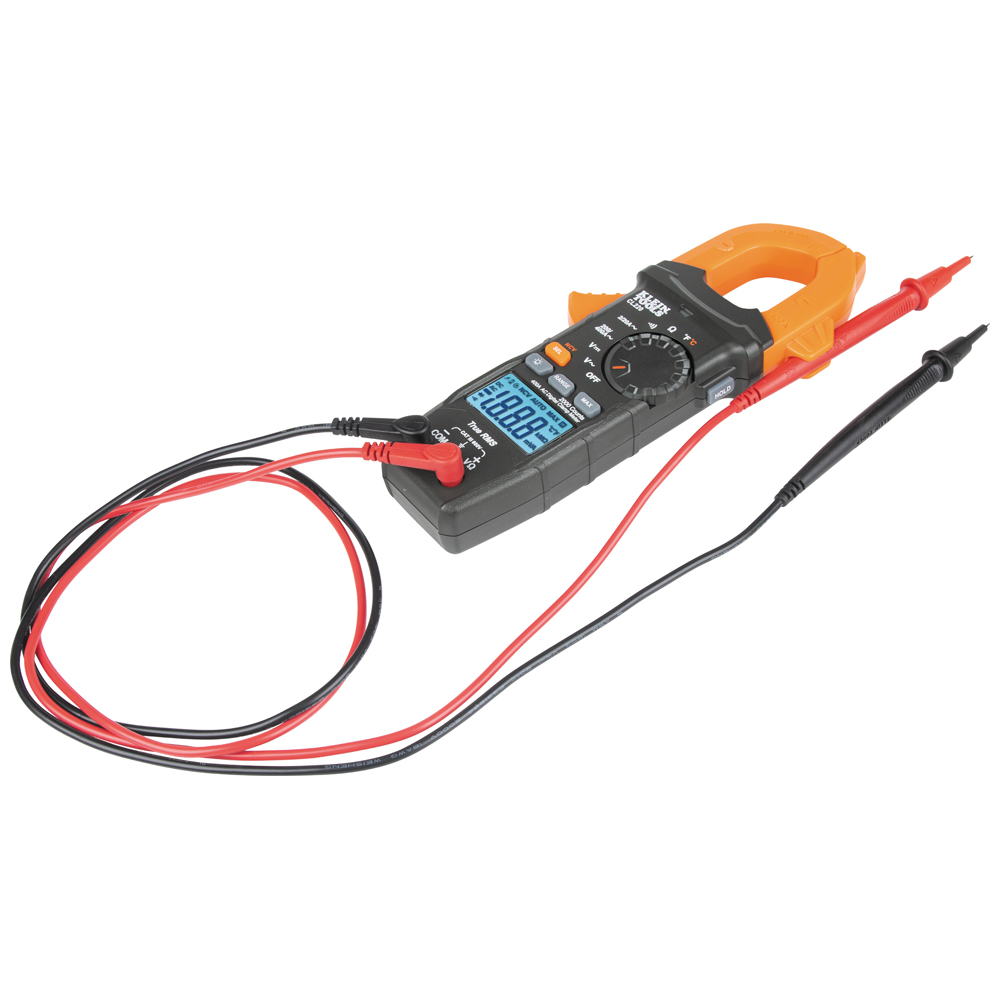

- Test lead holder and optional magnetic hanger for hands-free operation
- Auto power-off after 10 minutes to conserve battery life
- CAT III 600 V, Class 2, double insulation safety rating
- Built to withstand 2 m (6.6 ft) drop
Professional Installation Requirements
- No professional installation required; recommended for use by qualified personnel familiar with electrical safety practices.
Applications

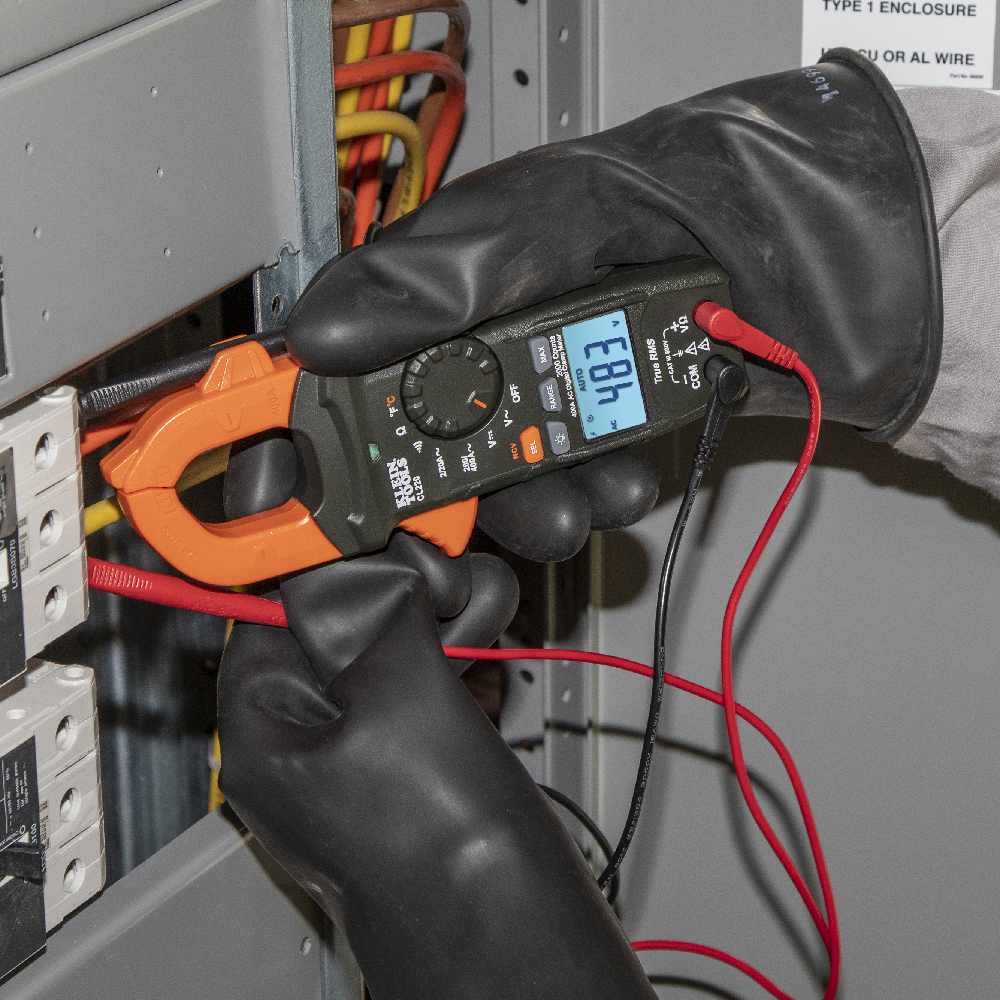

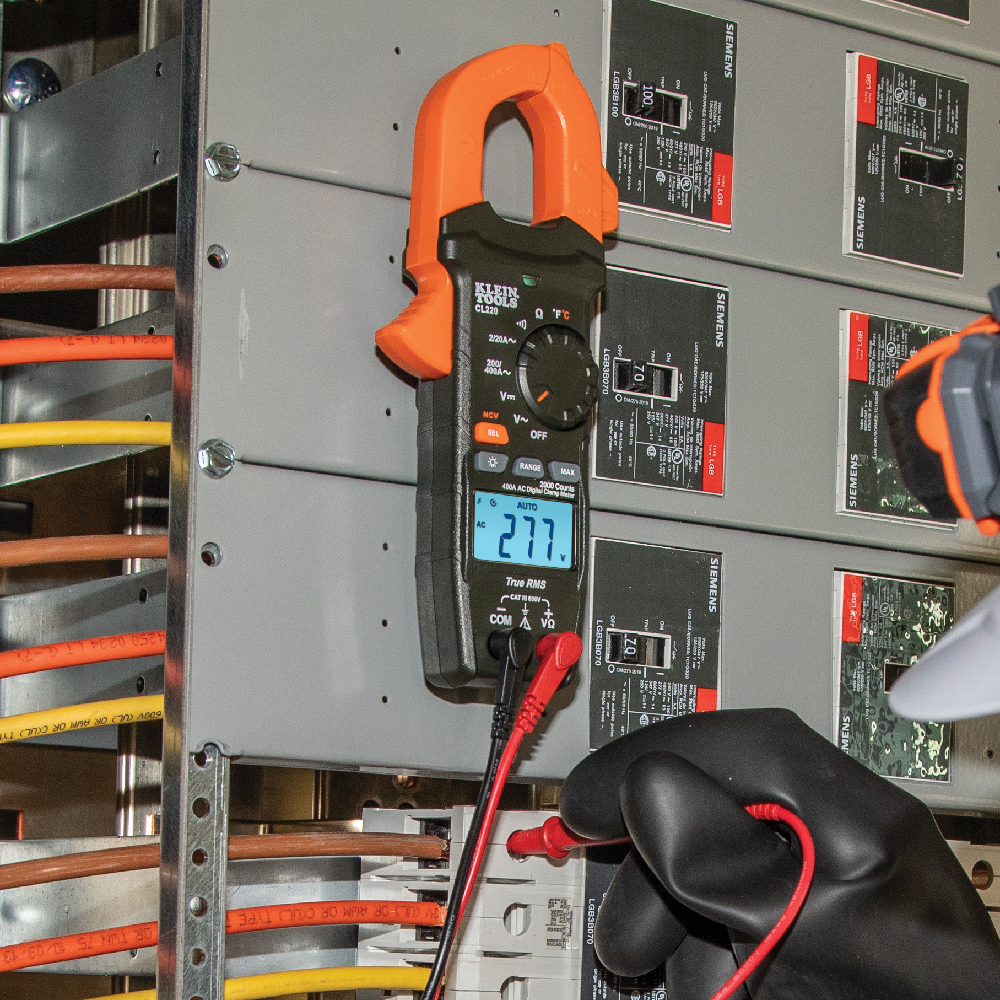

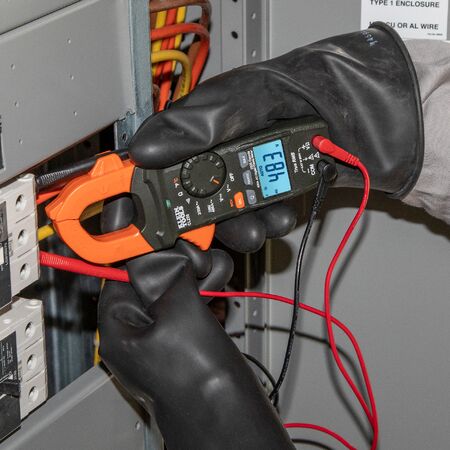

- Electrical testing and troubleshooting in residential, office, and light-industrial environments

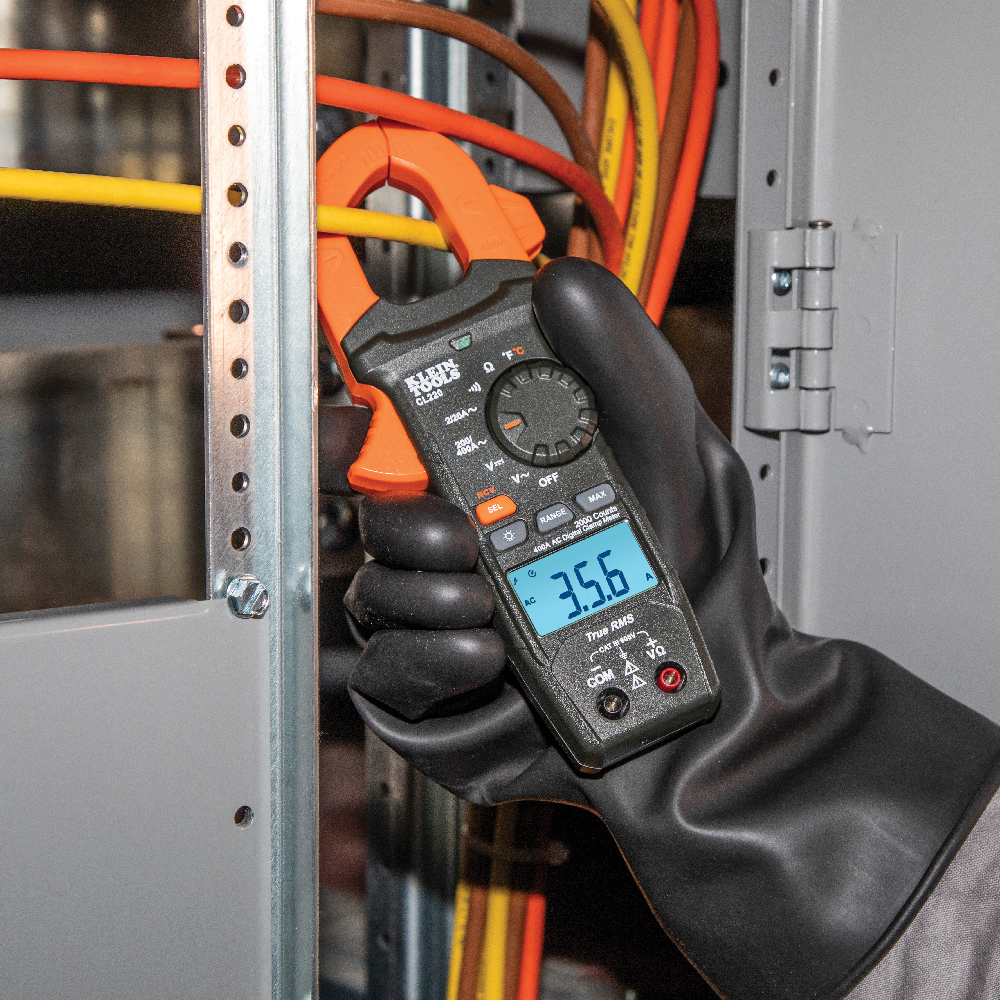

- Measuring AC current and non-contact voltage testing
- Measuring AC/DC voltage, resistance, continuity, and temperature
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power-off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details not specified; typically includes manufacturer warranty against defects.
Available Now
The Wattmaster Digital Clamp Meter CL220 is available for immediate purchase, ideal for electrical testing and measurement in residential, commercial, and light industrial applications.
