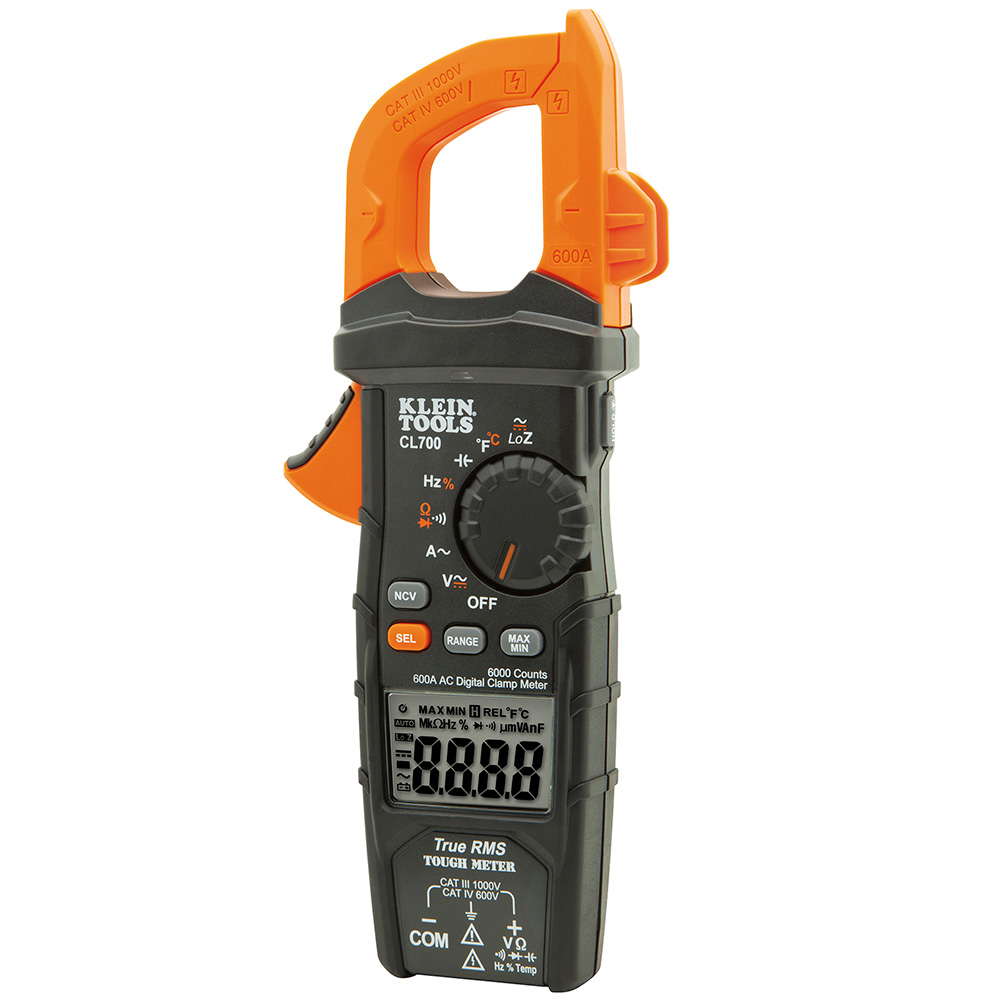

Digital Clamp Meter | AC Auto-Ranging TRMS | Low Impedance Mode | CAT IV 600V Safety Rating | by Wattmaster
The Digital Clamp Meter with AC Auto-Ranging TRMS and Low Impedance (LoZ) mode is perfect for electrical testing and troubleshooting. Designed for professionals, it measures AC current up to 600A, AC/DC voltage, resistance, and more, ensuring accurate readings in residential and light-industrial environments. With a CAT IV 600V safety rating and durable design, this meter is built to withstand the rigors of daily use while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter | AC Auto-Ranging TRMS | Low Impedance Mode | CAT IV 600V Safety Rating | by Wattmaster
Brand: Wattmaster
SKU: A-CL700
Alternatively Known As: TRMS Clamp Meter, Digital Clamp Meter with LoZ, AC Current Clamp Meter, Electrical Clamp Meter, Low Impedance Clamp Meter

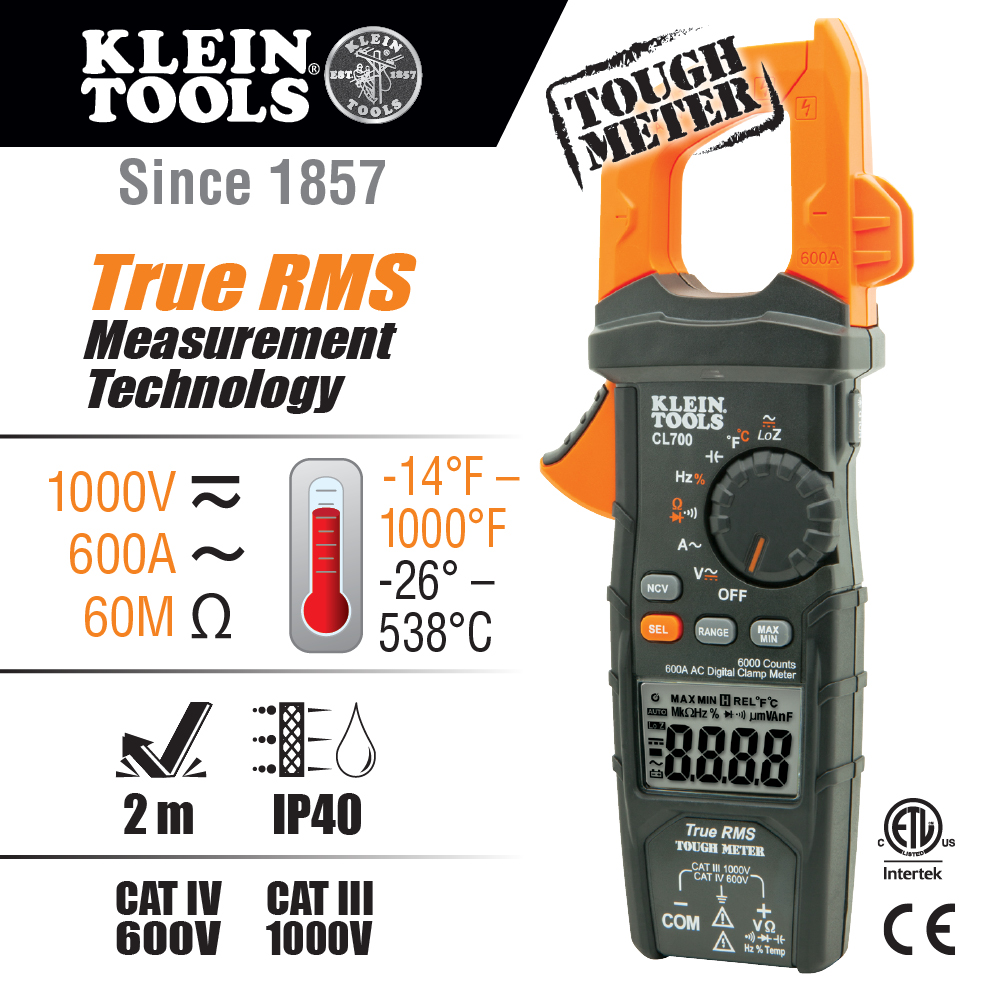

Technical Specifications
- AC Current Measurement: up to 600A
- Voltage Measurement: 1000 V AC/DC
- Resistance Range: up to 60 MΩ
- Frequency Range: 1 Hz to 500 kHz
- Capacitance Range: up to 6000 µF
- Temperature Range: -26 °C to 538 °C (-14 °F to 1000 °F)
- Display: 6000-count LCD
- Jaw Size: 3.5 cm (1.38 inches)
- Ingress Protection: IP40
- Safety Rating: CAT IV 600 V, CAT III 1000 V, Class 2 double insulation
- Operating Temperature: 0°C to 40°C
- Operating Altitude: up to 2000 m
- Dimensions (H x L x W): 39mm x 231mm x 97mm
- Weight: 0.335 kg
Key Features
- Automatically ranging true root mean squared (TRMS) technology for accurate AC current measurement
- Clamp measures AC current; thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency, capacitance, and test diodes
- Low Impedance (LoZ) mode to identify and eliminate ghost or stray voltages
- CAT IV 600V, CAT III 1000V safety rating with double insulation
- Durable design withstands 2 m (6.6 ft) drop
- Low-battery indicator and accessible battery compartment
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
Professional Installation Requirements
- Professional use recommended; users should have electrical knowledge and follow safety instructions. Do not measure resistance or continuity on live circuits. Verify meter operation before use.
Applications

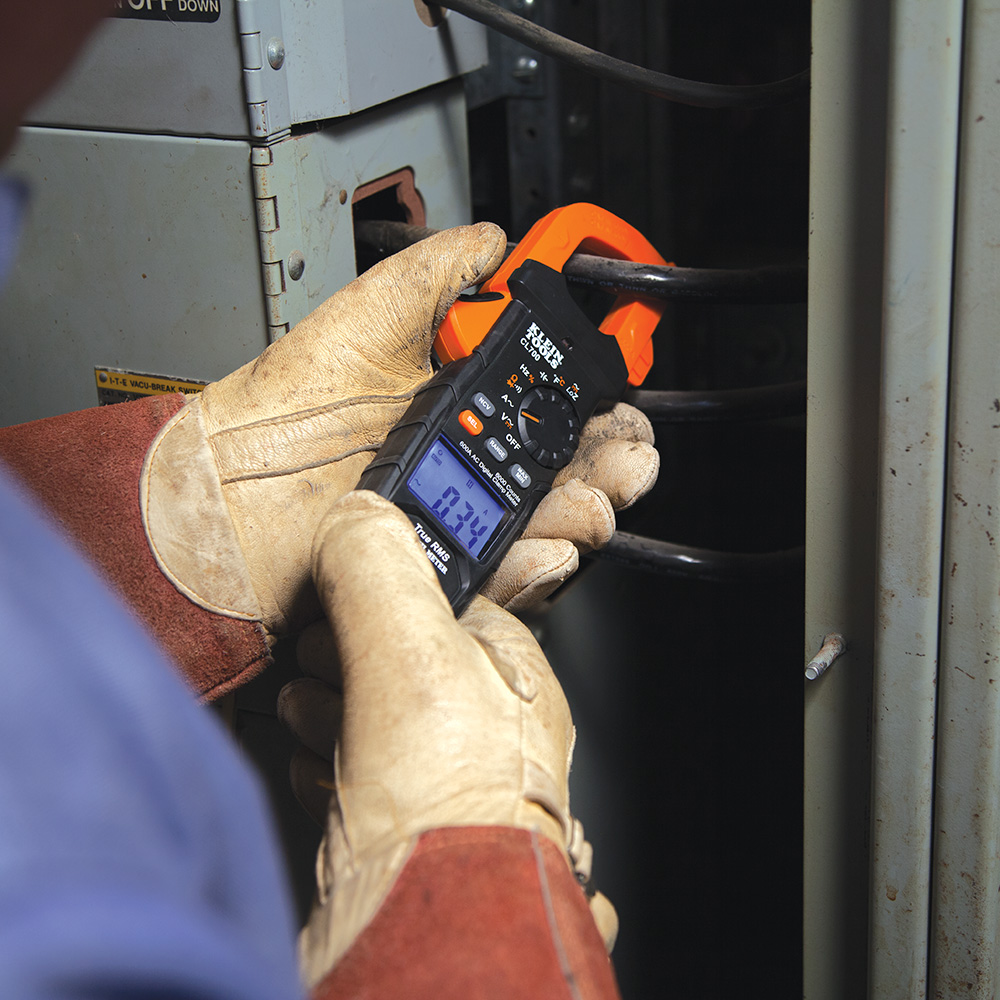

- Electrical testing and troubleshooting in residential, office, and light-industrial environments
- Measuring AC current, AC/DC voltage, resistance, continuity, frequency, capacitance, and temperature
- Identifying and eliminating ghost or stray voltages using Low Impedance (LoZ) mode
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Accurate measurements reduce the need for repeated testing, saving energy and resources
- Durable design extends product lifespan, reducing electronic waste
Warranty Information
Warranty details are typically provided by the manufacturer; please refer to Wattmaster or Klein Tools official warranty policy.
Available Now
The Wattmaster Digital Clamp Meter AC Auto-Ranging TRMS with Low Impedance Mode is available for immediate purchase, ideal for electricians and professionals requiring precise electrical measurements.
