Digital Clamp Meter Toolkit | 400A AC True RMS | 1000V Voltage Measurement | 99.99mF Capacitance by Majortech
Digital clamp meter toolkit featuring a 400A AC true RMS clamp meter and 1000V voltage measurement—ideal for electrical diagnostics and solar installations. Built for professionals, it includes essential tools for accurate measurements and efficient troubleshooting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter Toolkit | 400A AC True RMS | 1000V Voltage Measurement | 99.99mF Capacitance by Majortech
Brand: Majortech
SKU: TKE1210
Alternatively Known As: Digital Clamp Meter Toolkit, Electrical Clamp Meter Set, Solar Electrical Toolkit, Multimeter Clamp Meter Kit
Technical Specifications
- AC Current Range: 40.00A to 400.0A, Resolution: 10mA, Accuracy: ±(2.5% + 8 digits)
- DC Voltage Range: 4.000V to 1000V, Resolution: 1mV, Accuracy: ±(1.0% + 3 digits)
- AC Voltage Range: 4.000V to 1000V, Resolution: 1mV, Accuracy: ±(1.2% + 5 digits)
- Resistance Range: 400.0Ω to 40.00MΩ, Resolution: 0.1Ω, Accuracy: ±(1.5% + 2 digits)
- Frequency Range: 10Hz to 100kHz, Resolution: 1Hz, Accuracy: ±(1.0% + 5 digits)
- Capacitance Range: 99.99nF to 99.99mF, Resolution: 0.01nF, Accuracy: ±(3.0% + 5 digits)
- Temperature Range: -20 to 1000°C, Resolution: 0.1°C, Accuracy: ±(3.0°C + 3 digits)
- Duty Cycle Range: 20.0% to 80.0%, Resolution: 0.001, Accuracy: ±(1.2% + 10 digits)
- Dimensions (H x L x W): 300mm x 100mm x 350mm
- Weight: 1.2 kg
Key Features
- 400A AC True RMS Clamp Meter with 4000 count backlit LCD display
- CAT III 600V and CAT II 1000V safety ratings
- Measures DC and AC voltage up to 1000V
- Capacitance measurement up to 100mF
- Temperature measurement from -20°C to 1000°C
- INRUSH current measurement and VFD voltage value
- Non-Contact Voltage Detector (NCV)
- Continuity buzzer and diode test
- Peak mode and data hold functions

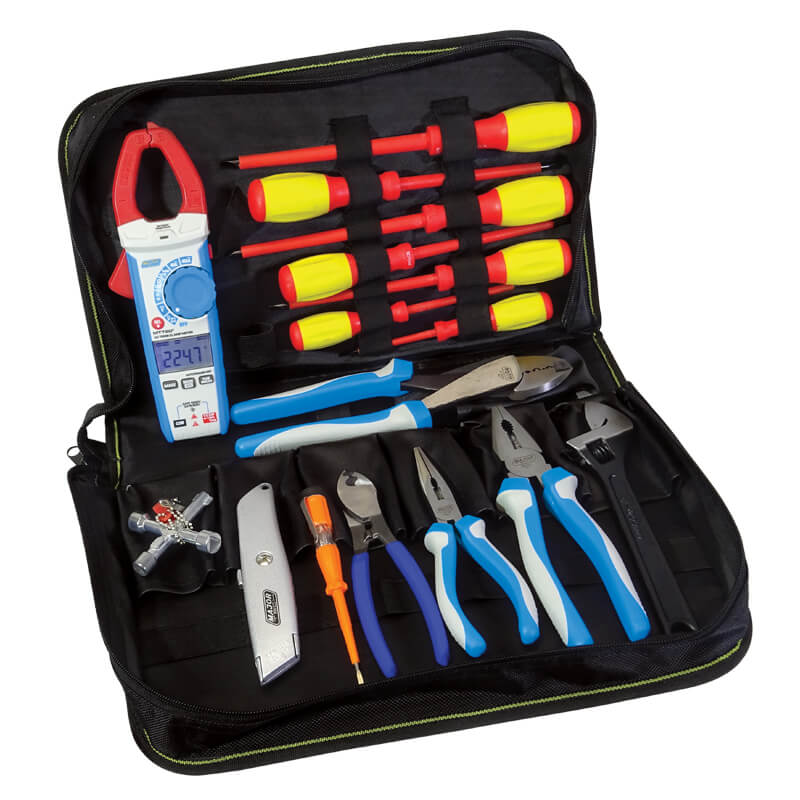

- Includes universal key, combination pliers, long nose pliers, neon screwdriver, cable shears, utility knife, crimping pliers, adjustable spanner, and 7-piece 1000V insulated screwdriver set
Professional Installation Requirements
- Professional use recommended; electrical measurements should be performed by qualified electricians to ensure safety and accuracy.
Applications
- Electrical measurements and diagnostics
- Solar industry electrical installations and maintenance
- General electrical and electronic troubleshooting
- Industrial and residential electrical work
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables accurate electrical measurements to optimize energy use and reduce waste
- Supports maintenance of solar power systems for sustainable energy generation
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The Majortech Toolkit with Digital Clamp Meter MT720 is available now for immediate purchase. Ideal for solar industry professionals and electrical technicians requiring a comprehensive measurement and hand tool set.
