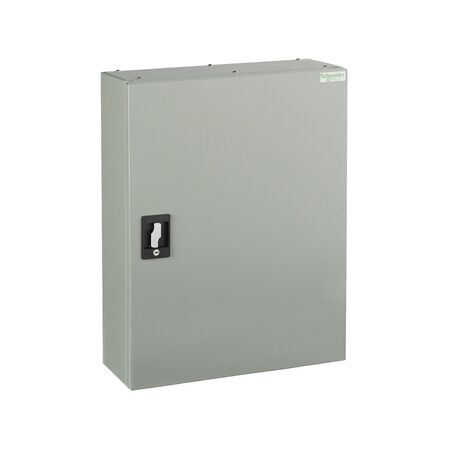

Distribution Board 24 Poles | 250A Main Switch | IP42 Rated | Grey by Clipsal
Distribution board with 24 poles and a 250A main switch—ideal for residential, commercial, and industrial applications. Built for robust distribution, with IP42 protection and a sleek grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MB Isobar standard distribution board, 24 poles, 250A main switch, 18mm, IP42, grey
Brand: Clipsal
SKU: MB224CM2
Alternatively Known As: Acti9 Distribution Board, Clipsal Isobar DB, 250A Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Enclosure mounting: Surface
- Dimensions (H x L x W): 750mm x 235mm x 580mm
- Weight: 39 kg
Key Features
- 24 poles with a 250A main switch for robust distribution.
- IP42 rated for protection against solid objects and water.
- Compliant with EU RoHS directive and free of toxic heavy metals.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, manufacturing facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Compliant with environmental regulations and free of substances of very high concern.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Isobar Standard Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
