DB, elite, 30/12Pole,160A ISO-DIN-SS, 1200x600x250mm

Distribution Board 30/12 Pole | 160A | IP66 Stainless Steel | 1200x600x250mm by Hager

BRAND: :hager

SKU: JPE3012S16DS

$3,721.20 List price: $4,758.20

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

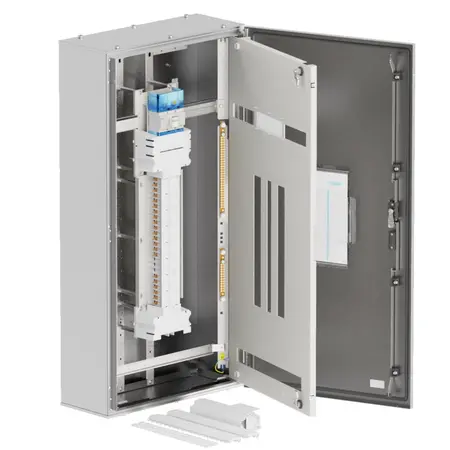

Distribution board with 160A rated current and IP66 protection—ideal for industrial and commercial power distribution. Built for durability with stainless steel construction, accommodating 42 phases and 40 modules.

Description
Attachments

Product Name/Title: DB, elite, 30/12Pole,160A ISO-DIN-SS, 1200x600x250mm

Brand: Hager

SKU: JPE3012S16DS

Alternatively Known As: Hager Electrical Enclosure, Hager Panelboard, Hager Distribution Board

Technical Specifications

Number of accessible phases: 42
Rated current: 160 A
Mounting: Surface mounting
Number of modules: 40
Material: Stainless steel
Impact resistance: IK05
Ingress Protection (IP) class: IP66
Locking type: 3-point lever, Key lock
Dimensions (H x L x W): 1200mm x 250mm x 600mm
Weight: 50 kg

Key Features

Rated current of 160A for high-capacity electrical distribution.
IP66 rating for protection against dust and water ingress.
Constructed from durable stainless steel for longevity.
42 accessible phases with a capacity for 40 modules.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in factories and manufacturing plants
Commercial: Electrical supply for office buildings and retail spaces
General: Suitable for any installation requiring robust electrical enclosures

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager DB Elite 30/12 Pole 160A ISO-DIN-SS is available now for immediate purchase. Ideal for industrial and commercial electrical distribution.

JPE3012S16DS (JPE3012S16DS, 178 Kb) [Download]

reach_declaration_JPE3012S16DS1.pdf (reach_declaration_JPE3012S16DS1.pdf, 103 Kb) [Download]

(6LE009745B_Performa_Elite_EN_02-2024_Leaflet_web.pdf, 16,870 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
