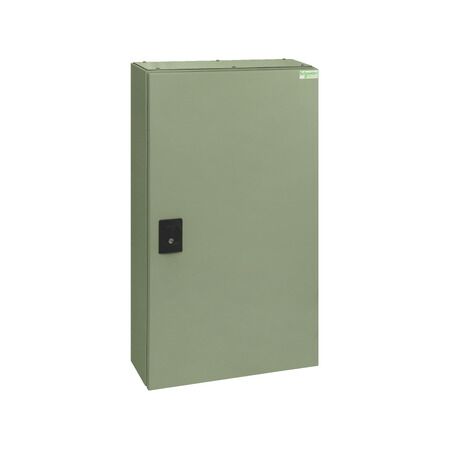

Distribution Board 48 Poles | 250A Main Switch | IP42 Rated | Grey by Clipsal
Distribution board with 48 poles and a 250A main switch—ideal for commercial and residential electrical systems. Built for robust distribution, with IP42 protection and a sleek grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MB Isobar standard distribution board, 48 poles, 250A main switch, 18mm, IP42, grey
Brand: Clipsal
SKU: MB248DM2
Alternatively Known As: Acti9 Distribution Board, Clipsal Isobar DB, 250A Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure type: Standard
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 1000mm x 235mm x 580mm
- Weight: 50 kg
Key Features
- 48 poles with a 250A main switch for robust electrical distribution.
- IP42 rated for protection against solid objects and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Large buildings, industrial facilities
- Residential: High-demand electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MB Isobar Standard Distribution Board is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
