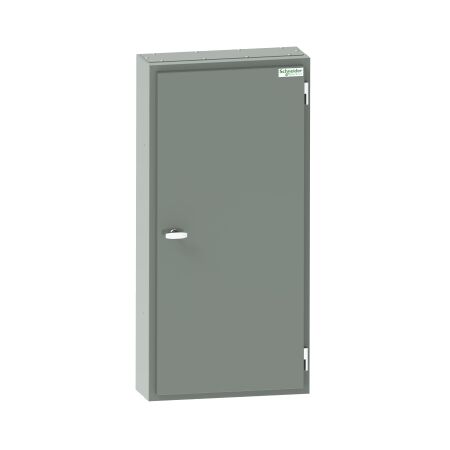

Distribution Board 54 Poles | 160A Main Switch | IP56 Weatherproof | Grey by Clipsal
Distribution board with 54 poles and 160A main switch—ideal for commercial and industrial facilities. Built for robust electrical distribution, with IP56 weatherproof rating for outdoor installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MD Isobar standard distribution board, 54 poles, 160A main switch, 18mm, IP56, grey
Brand: Clipsal
SKU: MD254EM1
Alternatively Known As: Acti9 Isobar DB, Clipsal Distribution Board, MD Isobar Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Number of poles: 54 x 18 mm
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Dimensions (H x L x W): 1200mm x 225mm x 580mm
- Weight: 63 kg
Key Features
- 54 poles with a 160A main switch for extensive circuit management.
- IP56 rated for protection against dust and water ingress.
- Weatherproof enclosure suitable for outdoor installations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- General: Any location requiring robust electrical distribution
Standards & Compliance
- Complies with relevant Australian standards for electrical distribution.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 MD Isobar Standard Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications, ensuring reliable electrical distribution.
