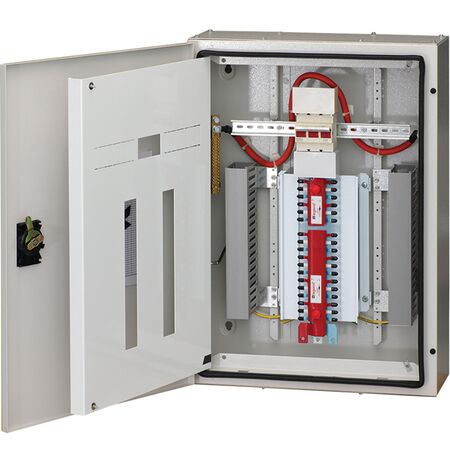

Distribution Board IP42 12P+72P | 250A Main Switch | Split Chassis by Legrand
Distribution board with IP42 protection and 250A main switch—ideal for residential and commercial installations. Built for easy maintenance, with a split chassis design and robust 12+72 pole configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DBX³ - Distribution board IP42 2 DIN split chassis with main switch grey 12P+72P 250A 1400Hx590Wx225Dmm
Brand: Legrand
SKU: DB12/72P14002D
Alternatively Known As: Legrand Distribution Board, IP42 Distribution Board, 12P+72P Distribution Chassis
Technical Specifications
- Rated Current: 250A
- Material: Steel enclosure with a grey finish
- Configuration: 2 DIN split chassis
- Incoming Supply: Main switch included
- Dimensions (H x L x W): 1400mm x 225mm x 590mm
- Weight: 18 kg
Key Features
- IP42 rated protection against dust and water.
- Designed for 12+72 pole configurations with a robust main switch.
- Split chassis design allows for easy installation and maintenance.
Professional Installation Requirements
- Installation by a licensed electrician is required for compliance with safety regulations.
Applications
- Residential: Homes, apartments, electrical systems
- Commercial: Offices, retail spaces, industrial applications
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Sustainable design minimizes environmental impact.
- Energy-efficient operation helps reduce overall power consumption.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Legrand DBX³ Distribution Board IP42 is available now for immediate purchase. Ideal for residential and commercial electrical installations.
