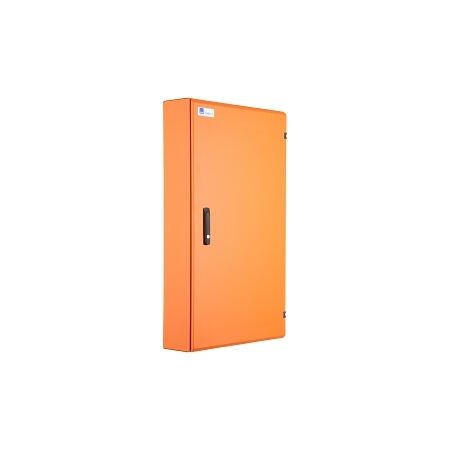

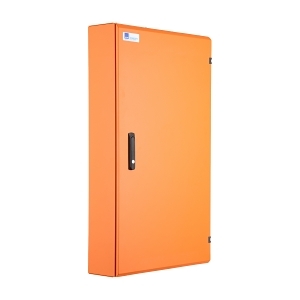

Dual Energy Meter Panelboard | 250A | 12-24 Way | Surface Mounted by NHP
Dual energy meter panelboard with 250A capacity and 12-24 way configuration—ideal for residential and commercial spaces. Built for efficient energy monitoring, with a durable surface-mounted steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus P/board Metering 1080mm Dual Energy Meter Split DIN-T 12 24 Way 250A MSW Orange
Brand: NHP
SKU: CPLMD1224M250O
Alternatively Known As: Dual Energy Meter, Split DIN-T Meter, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 36
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Impact Strength: IK10
- Degree of Protection: IP42
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1080mm x 200mm x 600mm
- Weight: 30 kg
Key Features
- Integrated energy metering function for efficient monitoring.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and industrial applications
- General: Any location requiring dual energy metering solutions
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient energy management reduces overall energy consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase. Ideal for residential and commercial spaces requiring dual energy metering.
