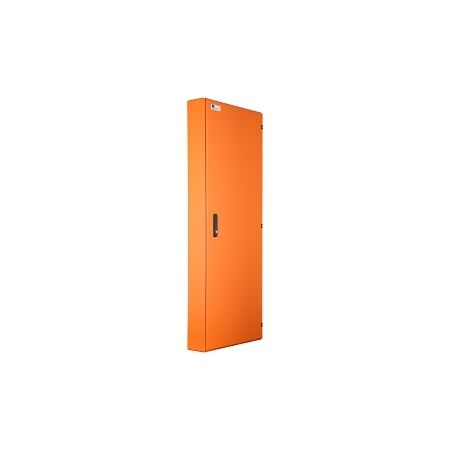

Dual Energy Meter Panelboard | 250A | 36 Way | IP42 Rated by NHP
Dual energy meter panelboard with 250A capacity and 36 ways—ideal for commercial and residential energy management. Built for durability with robust steel housing and IP42 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus P/board Metering 1728mm Dual Energy Meter Split DIN-T 36 36 Way 250A MSW Orange
Brand: NHP
SKU: CPLMD3660M250O
Alternatively Known As: Dual Energy Meter, Split DIN-T Meter, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 14
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1728mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Integrated energy metering function for efficient energy management.
- Robust steel housing with a thickness of 1.6 mm for durability.
- IP42 rated for protection against solid objects and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Commercial: Large buildings, industrial facilities
- Residential: High-demand homes requiring advanced metering solutions
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design supports sustainable energy management.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase. Ideal for commercial and residential applications requiring advanced energy management solutions.
