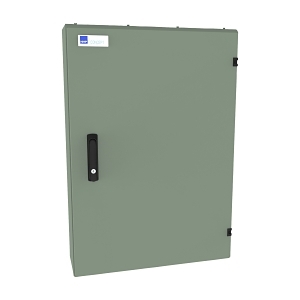

Dual Energy Meter Panelboard | 250A | 42 Way | IP42 Surface Mount by NHP
Dual energy meter panelboard with 250A capacity and 42 outgoing ways—ideal for residential and commercial energy management. Built for efficient monitoring, with robust IP42 steel housing and surface mount design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus P/board Metering 1296mm IP42 Dual Energy Meter Split DIN-T 18 42 Way 250A MSW Grey
Brand: NHP
SKU: CPLMD1842M250G
Alternatively Known As: Dual Energy Meter, Split DIN-T Meter, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 14
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Integrated energy metering function for dual energy monitoring.
- Surface mounted design with a robust steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient energy management reduces overall energy consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.
