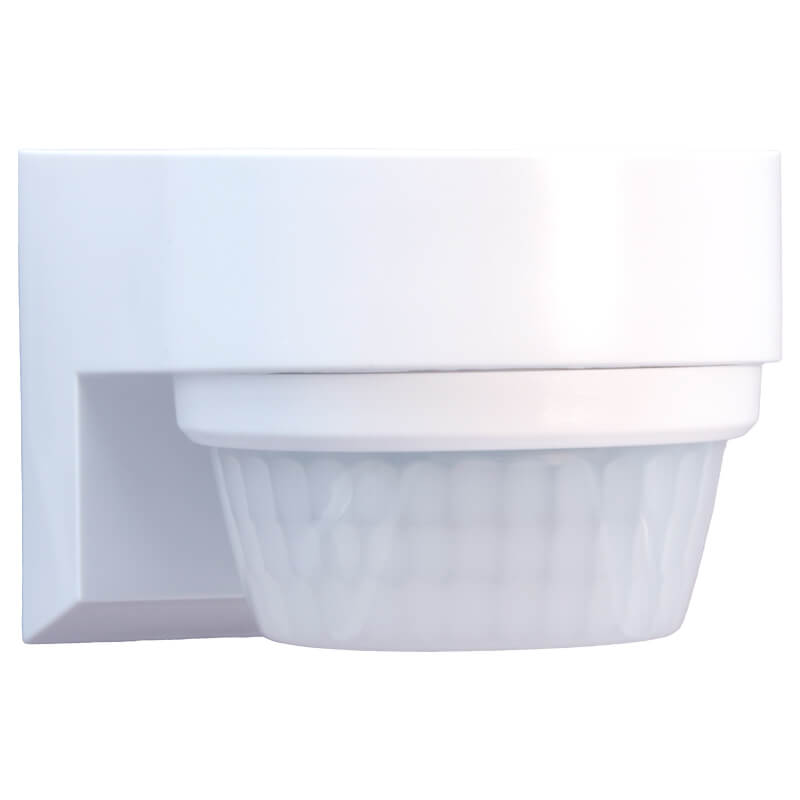

Dual PIR Motion Sensor 240 Degree IP65 MajorTech
MajorTech PIR motion sensor features 240 degree dual sensing and IP65 rating. Ideal for outdoor automatic lighting and movement detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 240° PIR Motion Sensor, Outdoor PIR Sensor, Wall-Mounted Motion Sensor, Lighting Motion Detector
Technical Specifications
- Model: PIR49
- Detection Area: 240°
- Detection Distance: 8–14m adjustable
- Ambient Light Range: Less than 3–2000 lux adjustable
- Detection Motion Speed: 0.6–1.5m/s
- Input Voltage: 220–240V AC
- Power Frequency: 50/60Hz
- Rated Load: 2000W incandescent; 1000W LED/CFL
- Time Delay: 10 seconds (±3 seconds) to 15 minutes (±2 minutes)
- Power Consumption: Less than 0.5W
- Installation Height: 1.8–2.5m
- Mounting: Wall mount
- Operating Temperature: -20°C to 40°C
- Operating Humidity: Less than 93% RH
- Ingress Protection: IP65 for indoor and outdoor installation
- Accessories: Screws and instruction manual
- Dimensions (H x L x W): 125mm x 90mm x 55mm
- Weight: 0.18 kg
Key Features
- Wide 240° motion detection coverage
- Adjustable detection distance from 8m to 14m
- Adjustable ambient-light, sensitivity and time-delay controls
- Automatically switches connected lighting or electrical devices when motion and body heat are detected
- Suitable for indoor and outdoor installations
- IP65-rated housing for protection against dust and water jets
- Supports LED, CFL and incandescent lighting loads
- Automatically identifies day and night operating conditions
Professional Installation Requirements
- Must be installed by a qualified electrician. Installation involves 220–240V AC mains wiring and must be completed with the power supply isolated and in accordance with applicable electrical installation requirements.
Applications
- Outdoor automatic lighting
- Driveways, paths, entrances and gardens
- Security and movement detection
- Workshops, garages and commercial premises
- Automatic control of compatible lighting and electrical devices
Standards & Compliance
- AS/NZS 60669.1
- AS/NZS 60669.2.1
Environmental Benefits
- Can reduce unnecessary lighting operation by switching lights on only when movement is detected
- Low standby power consumption of less than 0.5W
- May extend lamp service life and reduce replacement waste through occupancy-based control
- Durable IP65 construction can support longer service life in suitable outdoor applications
Warranty Information
5-year warranty for sensors, subject to Major Tech warranty terms, proof of purchase and any required product registration. ([majortech.com.au](https://majortech.com.au/site/download-manual/355))
