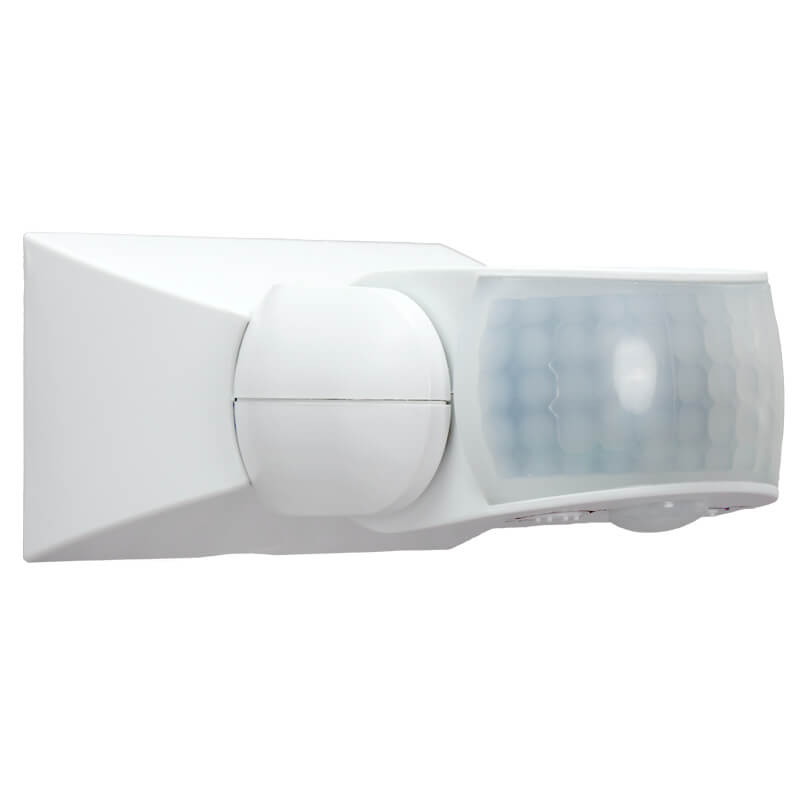

Dual PIR Motion Sensor IP65 MajorTech
MajorTech PIR motion sensor features dual sensing and IP65 rating. Ideal for outdoor automatic lighting and movement detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PIR48 Dual PIR Presence Sensor, Major Tech Outdoor PIR Sensor, Dual-Sensor Motion Detector
Technical Specifications
- Model: PIR48
- Sensor Type: Dual passive infrared (PIR) sensor
- Supply Voltage: 220–240V AC
- Power Frequency: 50/60Hz
- Front Detection Area: 180°
- Bottom Detection Area: 360°
- Front Detection Distance: Up to 12m
- Bottom Detection Distance: Up to 6m
- Detection Motion Speed: 0.6–1.5m/s
- Ambient Light Adjustment: Less than 3–2000 lux
- Time Delay: 10 seconds to 15 minutes
- Rated Load: 1200W incandescent; 600W LED/CFL
- Power Consumption: Approximately 0.5W
- Mounting: Wall or ceiling surface mount
- Recommended Installation Height: 1.8–2.5m
- Working Temperature: -20°C to 40°C
- Working Humidity: Less than 93% RH
- Swivel Adjustment: 45° left to right; 180° up and down
- Ingress Protection: IP65
- Warranty: 5 years
- Dimensions (H x L x W): 105mm x 115mm x 75mm
- Weight: 0.2 kg
Key Features
- Dual PIR sensing combines a 180° front sensor with a 360° downward sensor
- IP65-rated housing for indoor and outdoor installations
- Adjustable ambient light threshold from less than 3 to 2000 lux
- Adjustable time delay from 10 seconds to 15 minutes
- Automatically switches connected lighting or electrical loads when movement and body heat are detected
- Wall and ceiling mountable with adjustable sensor head
- Suitable for automatic lighting and movement detection applications
Professional Installation Requirements
- Installation must be performed by a qualified electrician because the sensor connects to 220–240V AC mains supply. Install in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Outdoor automatic lighting
- Driveways, paths and patios
- Building entrances and corridors
- Security and perimeter lighting
- Garages, utility areas and stairwells
- Commercial and residential movement detection
Standards & Compliance
- AS/NZS 60669.1
- AS/NZS 60669.2.1
Environmental Benefits
- Can reduce unnecessary lighting energy consumption by activating connected lights only when movement is detected
- Adjustable time delay helps limit the operating time of connected lighting
- Reduced lamp operating hours may extend lamp life and reduce replacement waste
- Long-term use supported by a five-year product warranty
Warranty Information
5-year warranty against manufacturing defects, subject to MajorTech warranty terms and exclusions. Warranty claims require proof of purchase; damage caused by incorrect use, electrical surges, sea-air corrosion, unauthorised modification or inadequate maintenance may be excluded.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
