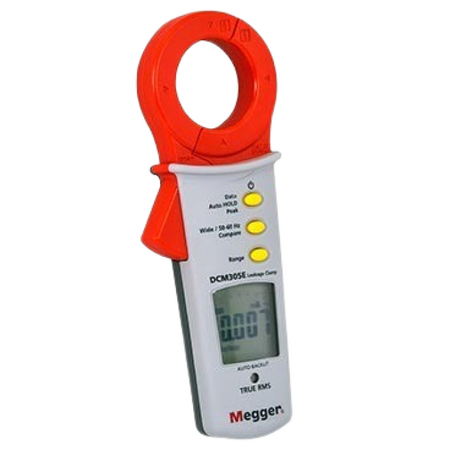

Earth Leakage Clamp Meter | 6 mA to 100 A Range | True RMS Measurement | Low Pass Filter | by Rapid Tech
The Earth Leakage Clamp Meter is designed for electrical professionals, offering a measurement range of 6 mA to 100 A and true RMS measurement for accurate readings. With a low pass filter to reduce noise and a 40 mm jaw size for versatile applications, this meter is perfect for diagnosing earth leakage currents and ensuring safety in electrical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Leakage Clamp Meter | 6 mA to 100 A Range | True RMS Measurement | Low Pass Filter | by Rapid Tech
Brand: Rapid Tech
SKU: DCM305E
Alternatively Known As: Earth Leakage Clamp Meter, Leakage Current Clamp Meter, Earth Leakage Tester, RCD Leakage Clamp Meter
Technical Specifications
- Measurement Range: 6 mA to 100 A
- Resolution: 0.001 mA
- Display: Analogue bargraph
- Jaw Size: 40 mm
- Measurement Type: True RMS
- Safety Standard: IEC1010-2-32
- Features: Low pass filter for noise reduction
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.5 kg
Key Features
- High precision measurement with 0.001 mA resolution for detecting minute earth leakage currents
- Wide measurement range from 6 mA to 100 A for versatile applications
- True Root Mean Square (TRMS) readings for accurate measurement of sine-wave and distorted currents
- Integrated low pass filter to reduce high-frequency noise and improve reading stability
- 40 mm jaw size suitable for clamping around insulated and non-insulated conductors
- Analogue bargraph display for trending and visual assessment
- Rugged and portable design with tactile hand barrier for enhanced user safety
Professional Installation Requirements
- No professional installation required; however, use by qualified electrical professionals is recommended for safety and accuracy.
Applications
- Electrical professionals diagnosing earth leakage currents
- Maintenance and safety checks for Residual Current Devices (RCDs)
- Industrial and commercial electrical safety inspections
- Workplace safety enhancement in electrical environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps identify and reduce earth leakage currents, improving electrical system efficiency and safety
- Supports maintenance that prevents electrical faults and potential energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Rapid Tech for specific warranty details.
Available Now
The Rapid Tech Megger DCM305E Earth Leakage Clamp Meter is available now for immediate purchase. Ideal for electrical professionals and businesses requiring precise earth leakage current measurement.
