EcoVac.3 Central Vacuum Power Unit Valet

BRAND: Ness
SKU: VAC-127
$945.30 List price: $1,260.40
+ −
30 Days Return Electricians Unlock Trade Access

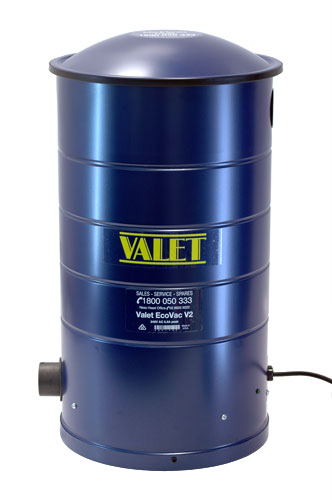

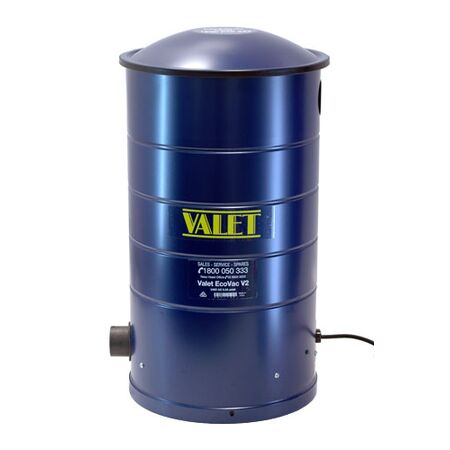

Valet EcoVac.3 is a central vacuum power unit. Ideal for central vacuum installs.

Alternatively Known As: Valet ECOVAC.3, Valet VAC-127, Valet Ducted Vacuum Power Unit, Central Vacuum Motor Unit

Technical Specifications
  • Model: VAC-127
  • Filtration: Max-Flo HEPA bag
  • Motor: Ametek 119996
  • Peak Current: 5.5 A
  • Vacuum: 2,837 mm water lift (111.7 in)
  • Air Power: 484–461 air watts
  • Airflow: 120.5 CFM
  • Noise Level: 66 dB
  • Flow Type: 5.7 inch flow-through
  • Speed Control: No
  • Recommended Maximum Installation Distance: 35 metres
  • Control System: Integrated control board with soft-start, low standby current and LED status indicators
  • Motor Life: 500 hours
  • Power Connection: Universal plug-in mains lead
  • Included: Vacuum bag, bag adaptor, mounting bracket, bottom baffle, user manual and unpluggable mains cable
  • Included Fittings: 90° sweep elbow, 90° sweep elbow spigot, stop coupling and 500 mm PVC pipe
  • Dimensions (H x L x W): 603mm x 310mm x 310mm
  • Weight: 8 kg
Key Features
  • Designed for homes, units and offices with central vacuum pipe runs up to 35 metres
  • Max-Flo HEPA bag filtration for fine dust capture
  • Soft-start control helps reduce motor starting stress
  • Low standby current supports reduced energy consumption
  • LED status indicators and externally accessible fuse
  • Compact 603 mm high by 310 mm wide body
  • Supplied with fittings for retrofit installations
  • Suitable for sheltered installation in a garage, carport or covered area
Professional Installation Requirements
  • Installation should be performed by a suitably qualified central vacuum installer and licensed electrician where required. The unit requires a grounded 230 V mains outlet, low-voltage switch wiring, duct connection and correct exhaust ventilation. Install in a sheltered, accessible location and do not enclose or obstruct airflow.
Applications
  • Residential central vacuum systems
  • Apartments, units and townhouses
  • Small offices and light-commercial premises
  • Retrofit ducted vacuum installations
  • Garage, carport and utility-room vacuum power-unit installations
Standards & Compliance
  • Relevant appliance safety reference: AS/NZS 60335.2.2:2018 for vacuum cleaners and water-suction cleaning appliances; central-sited vacuum installation requirements require separate consideration
  • Electrical installation should comply with AS/NZS 3000 by a suitably licensed electrician
Environmental Benefits
  • Soft-start control and low standby current can reduce electrical stress and standby energy use
  • Replaceable vacuum bags, motor and control-board components can extend service life and reduce premature equipment disposal
  • Central vacuum installation removes exhaust air and fine dust from the occupied room when correctly ducted outdoors
  • HEPA bag filtration supports improved indoor air quality by retaining fine dust within the collection system
Warranty Information

Five-year parts warranty on central vacuum power units, with one additional year available after returning the warranty card or registering the warranty online.

Available Now

Available through Valet and authorised Australian central vacuum distributors.
