Trade Discount 20%

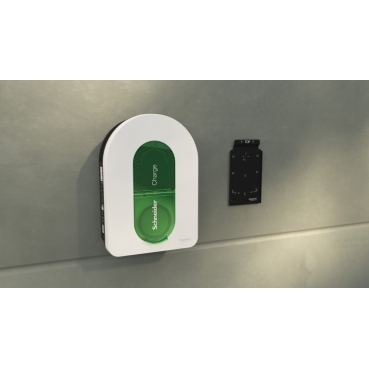

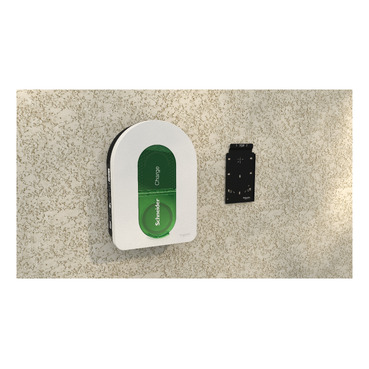

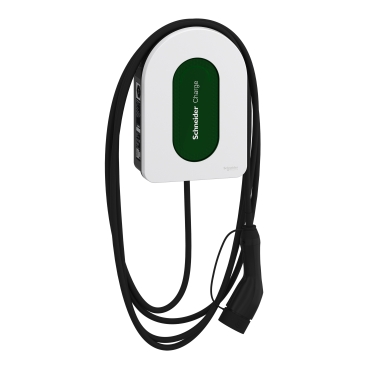

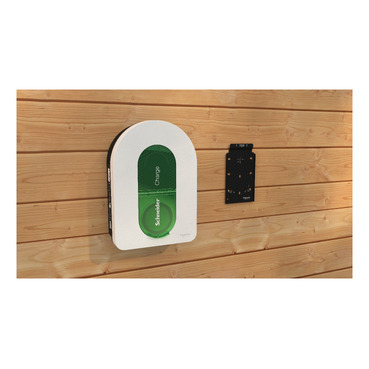

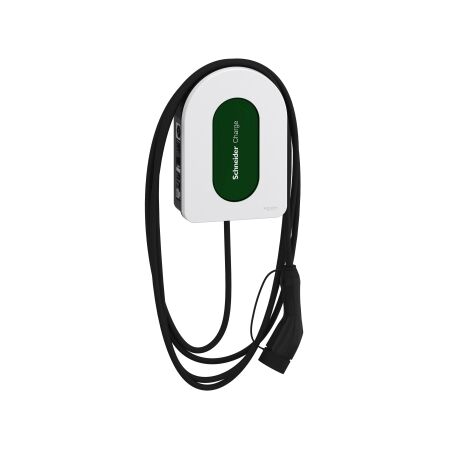

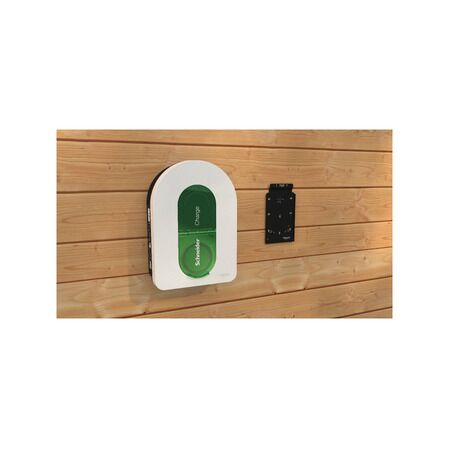

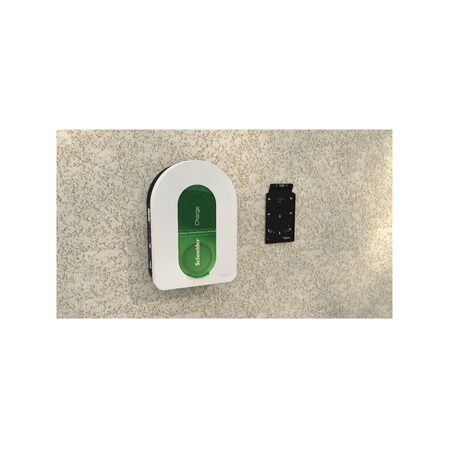

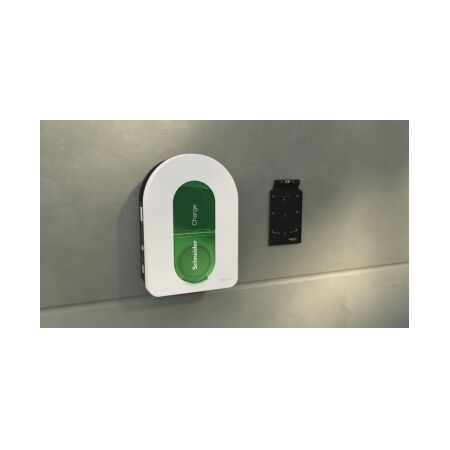

Electric Vehicle Charging Station 7.4kW 32A 7m Cable Clipsal
Clipsal Electric Vehicle Charging Station Cable features 7.4kW, 32A, cable T2 and dry contact for dynamic energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal output power: 7.4 kW, 32 A
- Socket outlet type: cable T2
- Input type: dry contact for dynamic energy management
- Rated supply voltage: 230...240 V AC 50...60 Hz +/- 10 %
- Communication network type: Wi-Fi, wireless, Ethernet
- Communication port protocol: OCPP 1.6
- Operating altitude: 0...2000 m
- Ambient air temperature for operation: -35...50 °C
- Ambient air temperature for storage: -40...85 °C
- Relative humidity: 5...95 %
- Dimensions (H x L x W): 352mm x 117mm x 244mm
- Weight: 5.3 kg
Key Features
- Wall-mounted design for easy installation.
- Attached 7m cable for convenient charging.
- Local status indication with red, green, and blue LED.
- Earth-leakage protection for safety.
- IP55 rated for outdoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging for electric vehicles
- Commercial: Charging stations for businesses and public areas
Standards & Compliance
- Complies with EN 61851 and IEC 61851-1 standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single-use plastic.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Schneider Charge Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: What cable is included with this EV charging station?
A: This model includes an attached 7m Type T2 charging cable for convenient electric vehicle charging.
Q: Does this charging station support connected charging management?
A: Yes. It supports Wi-Fi, Ethernet and wireless communication, and is compatible with the OCPP 1.6 communication protocol.
