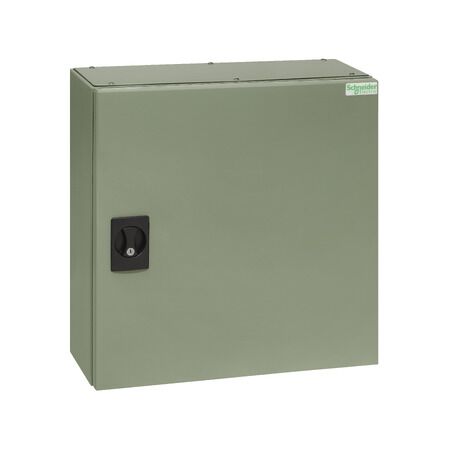

Encapsulated Distribution Board 24 Poles | 250A | IP42 | Grey by Clipsal
Encapsulated distribution board with 24 poles and 250A capacity—ideal for residential, commercial, and industrial applications. Built for safety and durability, with IP42 protection and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MB Encapsulated distribution board, 24 poles, 250A no main switch, 18mm, IP42, grey
Brand: Clipsal
SKU: MB224B30
Alternatively Known As: Acti9 Distribution Board, Encapsulated DB, Circuit Protection Board
Technical Specifications
- Rated operational voltage: 415 V
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 600mm x 235mm x 580mm
- Weight: 26 kg
Key Features
- 24 poles with 250A rated operational current.
- IP42 rated for protection against solid objects and water.
- Surface mounting enclosure for easy installation.
- Includes removable gland plates and circuit schedule card.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Factories, warehouses, and large facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
