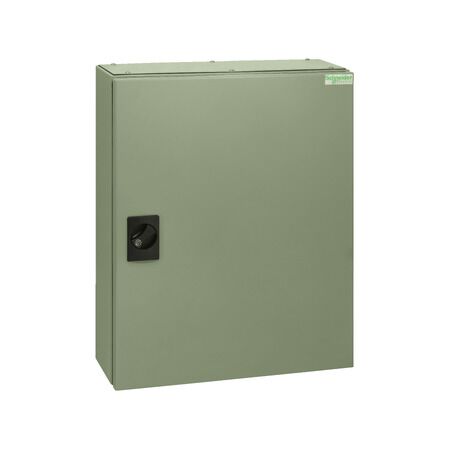

Acti9, MB Encapsulated distribution board, 24 poles, 250A main switch, 18mm, IP42, grey

Encapsulated Distribution Board 24 Poles | 250A Main Switch | IP42 Rated | Grey by Clipsal

BRAND: Clipsal

SKU: MB224C32

$1,507.50 List price: $2,261.30

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Encapsulated distribution board with 24 poles and a 250A main switch—ideal for residential, commercial, and industrial applications. Built for robust circuit protection, with IP42 rating and steel enclosure for enhanced safety.

Description
Attachments

Product Name/Title: Acti9, MB Encapsulated distribution board, 24 poles, 250A main switch, 18mm, IP42, grey

Brand: Clipsal

SKU: MB224C32

Alternatively Known As: Acti9 Distribution Board, Encapsulated DB, Circuit Protection Board

Technical Specifications

Rated operational voltage: 415 V
Rated operational current: 250 A
Breaking capacity: 25 kA
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 6 kV
Enclosure material: Steel
Enclosure type: Standard
Door type: External plain
Network frequency: 50 Hz
Enclosure mounting: Surface
Dimensions (H x L x W): 750mm x 235mm x 580mm
Weight: 31 kg

Key Features

24 poles with a 250A main switch for robust distribution.
IP42 rated for protection against solid objects and water.
Includes earth/neutral terminal block and removable gland plates.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
Industrial: Factories, warehouses, and large facilities

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Packaging made with recycled cardboard.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

MB224C32 (MB224C32, 189 Kb) [Download]
