Home/Electrical/Switchboards/Distribution Boards/Encapsulated Distribution Board 36 Poles | 160A Main Switch | IP42 Grey by Clipsal

Trade Discount 33%

Acti9, MB Encapsulated distribution board, 36 poles, 160A main switch, 18/27mm, IP42, grey

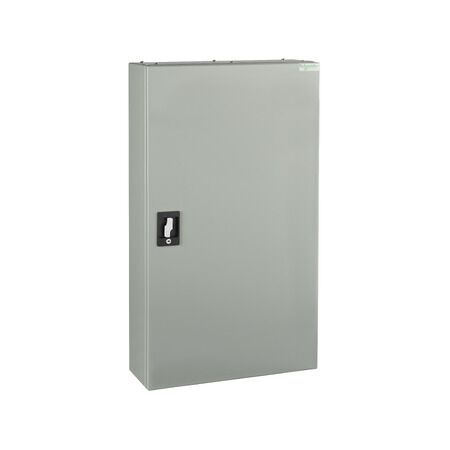

Encapsulated Distribution Board 36 Poles | 160A Main Switch | IP42 Grey by Clipsal

BRAND: Clipsal

SKU: MB236DH1

$2,149.00 List price: $3,223.40

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Encapsulated distribution board with 36 poles and a 160A main switch—ideal for residential and commercial applications. Built for robust distribution management, with IP42 protection and a sleek grey finish.

Description
Attachments

Product Name/Title: Acti9, MB Encapsulated distribution board, 36 poles, 160A main switch, 18/27mm, IP42, grey

Brand: Clipsal

SKU: MB236DH1

Alternatively Known As: Acti9 Distribution Board, Encapsulated DB, Circuit Protection Board

Technical Specifications

Rated operational voltage: 415 V
Rated operational current: 160 A
Number of poles: 6 x 27 mm, 30 x 18 mm
Breaking capacity: 25 kA
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 6 kV
Enclosure material: Steel
Enclosure type: Standard
Door type: External plain
Network frequency: 50 Hz
Enclosure mounting: Surface
Dimensions (H x L x W): 1000mm x 235mm x 580mm
Weight: 36 kg

Key Features

36 poles with a 160A main switch for robust distribution management.
IP42 rated for protection against solid objects and water.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Packaging made with recycled cardboard.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.

MB236DH1 (MB236DH1, 189 Kb) [Download]
