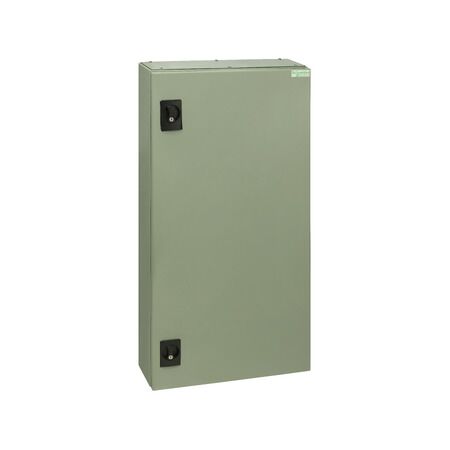

Encapsulated Distribution Board 72 Poles | 250A Main Switch | IP42 Rated | Grey by Clipsal
Encapsulated distribution board with 72 poles and 250A main switch—ideal for commercial and residential electrical distribution. Built for high capacity, with IP42 protection and robust steel enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Enclosure type: Standard
- Door type: External plain
- Dimensions (H x L x W): 1200mm x 235mm x 580mm
- Weight: 41 kg
Key Features
- 72 poles with 250A main switch for high capacity distribution.
- IP42 rated for protection against solid objects and water.
- Includes removable gland plates and circuit schedule card.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings requiring robust electrical distribution.
- Residential: Large homes with extensive electrical needs.
Standards & Compliance
- Pro-active compliance with EU RoHS directive.
Environmental Benefits
- Free of substances of very high concern and toxic heavy metals.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
