Trade Discount 33%
Encapsulated Distribution Board 84 Poles | 250A Main Switch | IP56 Grey by Clipsal
Encapsulated distribution board with 84 poles and a 250A main switch—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with weatherproof IP56 rating and steel enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

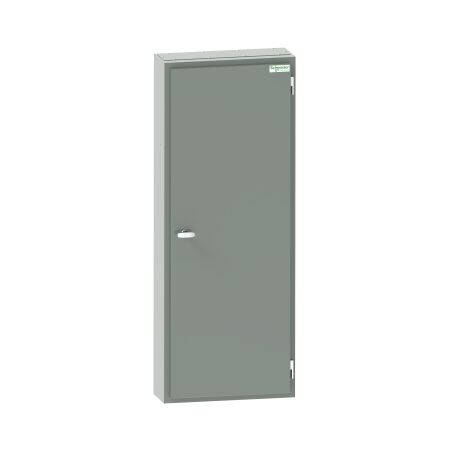

Product Name/Title: Acti9, MD Encapsulated distribution board, 84 poles, 250A main switch, 18mm, IP56, grey
Brand: Clipsal
SKU: MD284F32
Alternatively Known As: Acti9 Distribution Board, Encapsulated DB, Clipsal Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure type: Weatherproof enclosure
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 1500mm x 225mm x 580mm
- Weight: 51 kg
Key Features
- 84 poles with a 250A main switch for extensive circuit protection.
- IP56 rated for weatherproof performance.
- Includes earth/neutral terminal block and removable gland plates.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings requiring robust electrical distribution.
- General: Any application needing a reliable and weatherproof distribution board.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty terms apply, please check with the manufacturer.
Available Now
The Acti9 MD Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
