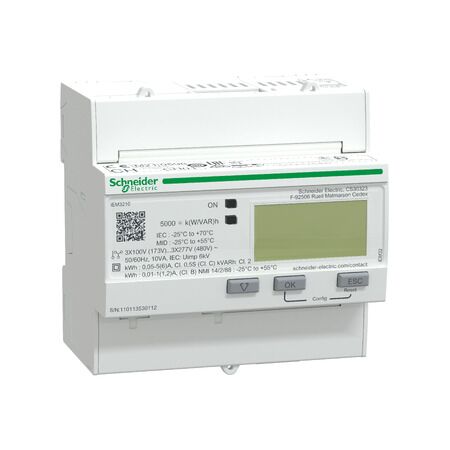

Energy Meter IEM3210 | 5A Current | DIN Rail Mount | IP40 Front by Clipsal
Energy meter with 5A rated current and DIN rail mounting—ideal for residential and commercial energy monitoring. Built for precision with class 0.5S accuracy and IP40 front panel protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, IEM3210 energy meter, CT - 1 pulse O - MID
Brand: Clipsal
SKU: A9MEM3210
Alternatively Known As: Acti9 Energy Meter, IEM3210 Energy Meter, Clipsal Energy Meter
Technical Specifications
- Rated current: 5 A
- Rated voltage: 100...277 V / 173...480 V
- Communication port protocol: None
- Mounting mode: Clip-on
- Connections: Screw terminals for current and voltage circuits
- IP Rating: IP40 front panel, IP20 body
- Operating temperature: -25...70 °C
- Storage temperature: -40...85 °C
- Measurement current: 1...32767000 mA
- Maximum value measured: 99999999 MWh
- Sampling rate: 32 samples/cycle
- Dimensions (H x L x W): 95mm x 69mm x 90mm
- Weight: 0.34 kg
Key Features
- Active energy measurement with class 0.5S accuracy.
- Compatible with current transformers of 1 A or 5 A.
- DIN rail mounting for easy installation.
- Local signaling with green indicator light and yellow flashing LED.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Small buildings, cost management, billing
- Commercial: Small and medium buildings, cost management, billing
- Industrial: Data centers, healthcare, cost management
Standards & Compliance
- Complies with BS EN 61557-12 and IEC 61557-12 for safety and performance.
Environmental Benefits
- CE and UKCA certified for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 IEM3210 Energy Meter is available now for immediate purchase. Ideal for residential and commercial energy monitoring.
