Energy Sensor Monoconnect 63A 3P+N | IP20 | Radio Frequency by Clipsal
Energy sensor with Monoconnect design and 63A capacity—ideal for energy management in buildings. Built for easy installation on circuit breakers, with radio frequency support for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

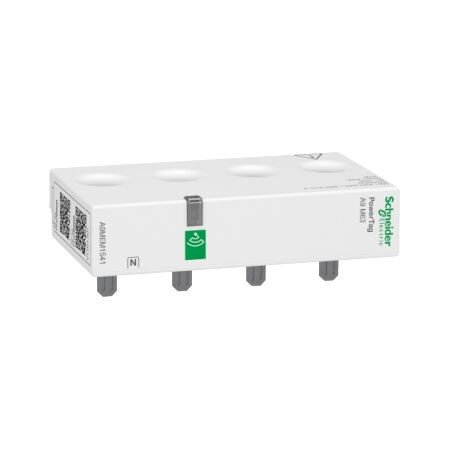

Product Name/Title: PowerTag, Energy sensor, PowerTag Monoconnect 63A 3P+N top position
Brand: Clipsal
SKU: A9MEM1541
Alternatively Known As: PowerTag Energy Sensor, Clipsal Energy Monitor
Technical Specifications
- Rated operational voltage: 220...240 V AC, +/- 20 %
- Max current: 63 A
- IP Rating: IP20
- Operating temperature: -25...60 °C
- Transmission support medium: Radio frequency 2.4-2.4835 GHz
- Power consumption: 2 VA
- Accuracy class: Class 1 current, Class 0.5 voltage
- Dimensions (H x L x W): 16.5mm x 43mm x 72mm
- Weight: 0.1 kg
Key Features
- Monoconnect design for easy installation on circuit breakers.
- Compatible with Acti 9 and Multi9 ranges.
- Supports voltage and current measurement for energy management.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Buildings: Breaker voltage monitoring
- Cost allocation
- Overload alarm
- Energy management
Standards & Compliance
- Complies with IEC 61557-12 for energy monitoring.
Environmental Benefits
- Green Premium product with reduced environmental impact.
Warranty Information
Standard warranty as per Clipsal's policy.
Available Now
The Clipsal PowerTag Monoconnect 63A Energy Sensor is available now for immediate purchase. Ideal for energy management in commercial and residential buildings.
