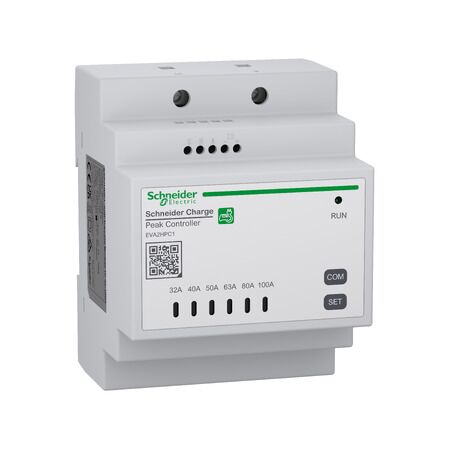

EV Load Shedder 1P 32A To 100A LED Indicators Clipsal

BRAND: Clipsal
SKU: SCHEVA2HPC1
$378.20 List price: $471.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal EV Load Shedder To LED Indicators features 4W, 220-230V AC 50 60Hz + 10% and -30 to 50 °C. Manually set maximum current from 32A to 100A.
Technical Specifications
  • Power consumption: 4W
  • Operating voltage: 220-230V AC 50/60Hz +/- 10%
  • Operating temperature: -30 to 50 °C
  • Storage temperature: -40 to 85 °C
  • Relative humidity: 5 to 95%
  • Overvoltage category: III
  • Pollution degree: 2
  • Mounting support: 35 mm DIN rail
  • Dimensions (H x L x W): 70mm x 69mm x 93mm
  • Weight: 0.196 kg
Key Features
  • Manually set maximum current from 32A to 100A
  • Compatible with EVlink Home
  • Local signaling with LED indicators for control and fault indication
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging stations for electric vehicles
  • Commercial: Charging solutions for businesses and public charging stations
Standards & Compliance
  • Complies with EN 61010-1:2010 and EN 61326-1:2013 for safety and performance.
Environmental Benefits
  • Designed to comply with environmental standards, contributing to reduced emissions.
Warranty Information

Standard warranty applies, please check with the retailer for specific terms.

Available Now

The Schneider Charge Load-shedder 1P is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging applications.

FAQ

Q: What current range can this EV load shedder be configured for?
A: The unit allows the maximum current to be manually set from 32A to 100A.

Q: What charging system is this load shedder compatible with?
A: It is compatible with EVlink Home charging systems and includes local LED indicators for control and fault indication.


Pair this load shedder with an EV charging station with T2 connector 32A 1 Ph IP54 rated for efficient residential charging installations.
Integrate an EV load management system for 12 charge points to coordinate charging across multiple vehicles.
Install the charger on an EV charging station pedestal floor standing aluminum for a secure freestanding setup.

Read the commercial EV charger selection guide when planning charging systems with integrated load management.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.


EVA2HPC1 (EVA2HPC1, 207 Kb) [Download]
