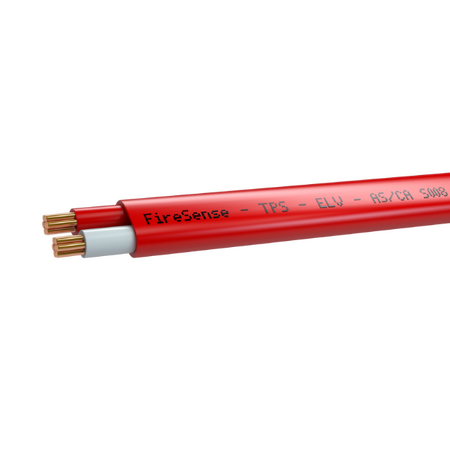

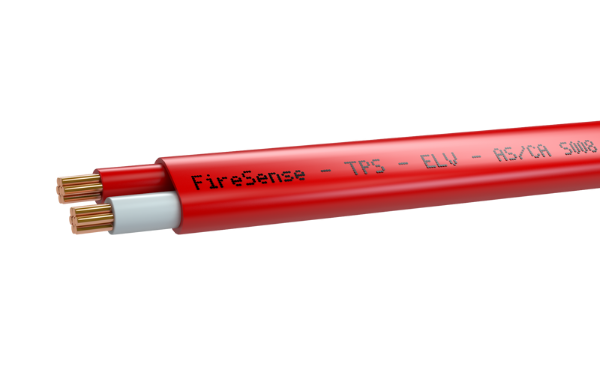

Fire Alarm Cable 1.50mm 2 Core Flat | 250V Rated | PVC V-90 Insulation | Red Sheath by Firebox
Fire alarm cable with 1.50mm² conductor size and 2 core flat design—ideal for fire alarm and ELV system installations. Built for compliance with AS/NZS standards, featuring PVC V-90 insulation and easy installation for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Alarm Cable 1.50mm 2 Core Flat | 250V Rated | PVC V-90 Insulation | Red Sheath by Firebox
Brand: Firebox
SKU: TPSLD-1.50-2C-200
Alternatively Known As: Fire Alarm Cable 2 Core Flat, FireSense TPS Fire Alarm Cable, Fire Rated TPS Cable, ActivFire Certified Fire Alarm Cable
Technical Specifications
- Conductor Size: 1.50mm²
- Core Count: 2 Core Flat
- Voltage Rating: 250/250V
- Insulation and Sheath: PVC V-90
- Mechanical Protection: WSX1 to AS/NZS 3013
- Compliance: AS/CA S008, AS/NZS 1670:2018
- Length: 200m roll
- Colour: Red outer sheath with red and white cores
- Markings: Metre markings and ELV/LV markings
- Dimensions (H x L x W): 3mm x 200000mm x 10mm
- Weight: 3.5 kg
Key Features
- Double insulated red outer sheath marked as 'fire alarm cable'
- ActivFire certified
- Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
- Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
- Easy to strip, install & terminate
- 250/250V voltage rating
- PVC V-90 insulation and sheath
- Red and white cores with metre markings
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
- AS/CA S008 compliant
Professional Installation Requirements
- Installation should be performed by qualified electricians familiar with fire alarm system wiring and compliance with AS/NZS standards.
Applications
- ELV applications
- Cabling from Fire Alarm systems to ancillary devices such as detectors, speakers, strobes, and field modules
- Fire Alarm, OWS & EWIS systems wiring
Standards & Compliance
- AS/CA S008 – Fire Alarm Cable Standard
- AS/NZS 1670.1:2018 – Fire Detection, Warning, Control and Intercom Systems
- AS/NZS 3013 – Electrical Installations – Fire Resistant Cables
Environmental Benefits
- Certified under Best Environmental Practice PVC v 2.0 ensuring reduced environmental impact
- Meets Green Building Code Australia / Green Star requirements
Warranty Information
Warranty details available upon request from Firebox; typically includes coverage against manufacturing defects.
Available Now
The FireSense TPSLD Cable 1.50mm 2 Core Flat 200m Roll is available now for immediate purchase. Ideal for fire alarm and ELV system installations requiring certified fire-rated cabling.
