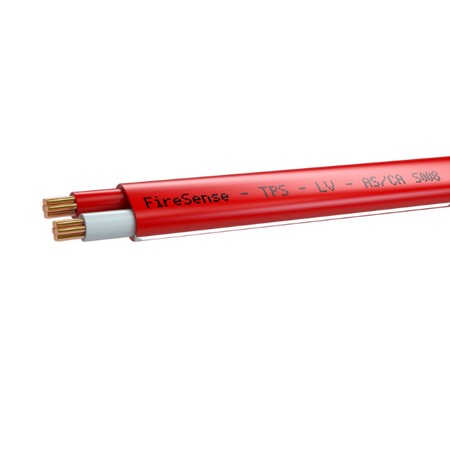

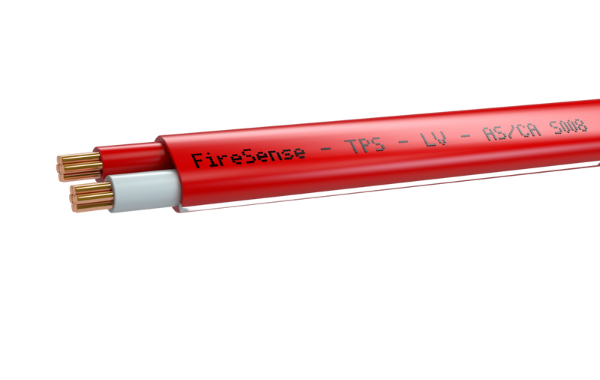

Fire Alarm Cable 1.50mm 2 Core Flat | PVC V-90 Insulation | ActivFire Certified | Red with White Stripe by Firebox
Fire alarm cable featuring 1.50mm² conductor size and double insulated PVC V-90 sheath—ideal for fire alarm systems and emergency warning installations. Built for low voltage applications, with easy strip and installation, ensuring compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Alarm Cable 1.50mm 2 Core Flat | PVC V-90 Insulation | ActivFire Certified | Red with White Stripe by Firebox
Brand: Firebox
SKU: TPSLD-1.50-2CW-200
Alternatively Known As: FireSense TPS Fire Alarm Cable, 2 Core Flat Fire Rated Cable, Fire Alarm Speaker Cable, Fire Alarm TPS Cable White Stripe
Technical Specifications
- Conductor Size: 1.50mm²
- Number of Cores: 2
- Cable Type: Flat TPSLD
- Voltage Rating: 250/250V
- Insulation and Sheath: PVC V-90
- Outer Sheath Colour: Red with white stripe
- Length: 200 meters per roll
- Mechanical Protection: WSX1 to AS/NZS 3013
- Markings: Metre markings, ELV/LV markings as per AS/NZS 1670:2018
- Certification: ActivFire certified, AS/CA S008 compliant
- Dimensions (H x L x W): 10mm x 200000mm x 10mm
- Weight: 4.0 kg
Key Features
- Double insulated red outer sheath marked as 'fire alarm cable'
- ActivFire certified
- Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
- Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
- Easy to strip, install & terminate
- 250/250V voltage rating
- PVC V-90 insulation and sheath
- Red and white cores with white stripe for circuit distinction
- Metre markings for easy measurement
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013
- Complies with AS1670.1.2018 Fire Alarm Installation Standards
- AS/CA S008 compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with AS/NZS 1670 and AS/NZS 3013 standards to ensure compliance and safety.
Applications
- Low Voltage (LV) applications
- Speaker feeds (100V line)
- Fire Alarm systems cabling
- OWS (Open Warning Systems) & EWIS (Emergency Warning and Intercommunication Systems)
- Cabling between fire alarm panels and ancillary devices such as detectors, speakers, strobes, and field modules
Standards & Compliance
- AS/NZS 1670 – Fire detection, warning, control and intercom systems
- AS/NZS 3013 – Electrical installations – Fire-resistant cables
- AS/CA S008 – Requirements for cabling products in fire detection and alarm systems
Environmental Benefits
- Certified under Best Environmental Practice PVC v 2.0 ensuring reduced environmental impact
- Meets Green Building Code Australia / Green Star requirements promoting sustainable building practices
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The FireSense TPSLD Cable 1.50mm 2 Core Flat White Stripe 200m Roll is available for immediate purchase, ideal for fire alarm and emergency warning system installations.
