Trade Discount 17%

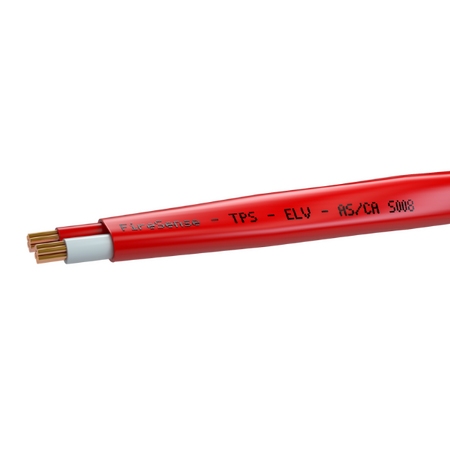

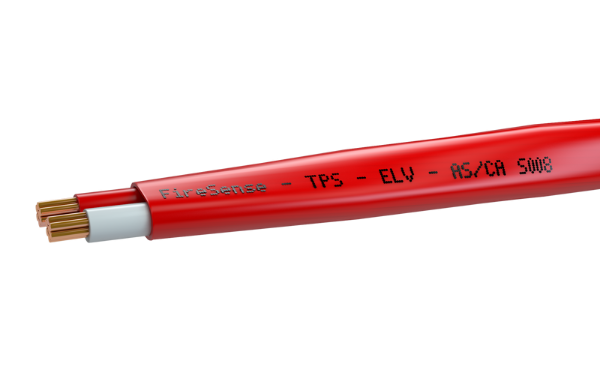

Fire Alarm Cable 1.50mm 2 Core Twisted | 200m Roll | Double Insulated & ActivFire Certified | Red by Firebox
Fire alarm cable with 1.50mm thickness and 2 core twisted design—ideal for fire alarm system installations. Built for compliance with AS/NZS standards, featuring double insulation and ActivFire certification for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fire Alarm Cable 1.50mm 2 Core Twisted | 200m Roll | Double Insulated & ActivFire Certified | Red by Firebox
Brand: Firebox
SKU: TPS-1.50-2CT-200
Alternatively Known As: Fire Alarm Cable, Twisted Pair Fire Cable, FireSense Twisted TPS Cable, Fire Rated TPS Cable
Technical Specifications
- Roll length: 200m
- Voltage rating: 250/250V
- PVC V-90 insulation and sheath
- Double insulated with red outer sheath
- Red and white cores
- Metre markings on cable
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013
- ActivFire certified
- AS/CA S008 compliant
- Dimensions (H x L x W): 10mm x 200000mm x 10mm
- Weight: 4.0 kg
Key Features
- Double insulated red outer sheath marked as 'fire alarm cable'
- ActivFire certified
- Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
- Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
- Easy to strip, install & terminate
- 250/250V voltage rating
- PVC V-90 insulation and sheath
- Red and white cores with metre markings
- ELV/LV markings as per AS/NZS 1670:2018
- WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
- AS/CA S008 compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with fire alarm system cabling and compliance with AS/NZS standards.
Applications
- ELV applications
- Cabling between addressable fire panels and ancillary devices
- Fire Alarm systems to ancillary devices and detection circuits
- OWS and EWIS systems
Standards & Compliance
- AS/NZS 1670 – Fire detection, warning, control and intercom systems
- AS/NZS 3013 – Electrical installations – Fire-resistant cables
- AS/CA S008 – Requirements for fire alarm systems
- Complies with ActivFire certification standards
Environmental Benefits
- Certified under Best Environmental Practice PVC v 2.0 ensuring reduced environmental impact
- Meets Green Building Code Australia / Green Star requirements
Warranty Information
Warranty details available upon request from the manufacturer or supplier.
Available Now
The FireSense TPS Cable - 1.50mm - 2 Core Twisted - 200m Roll is available now for immediate purchase. Ideal for fire alarm and safety system installations in commercial and residential buildings.
