Floodlight LED 10W 1400lm 4000K MajorTech

BRAND: Major Tech
SKU: ALF10NW
$22.90 List price: $30.50
+ −
30 Days Return Electricians Unlock Trade Access

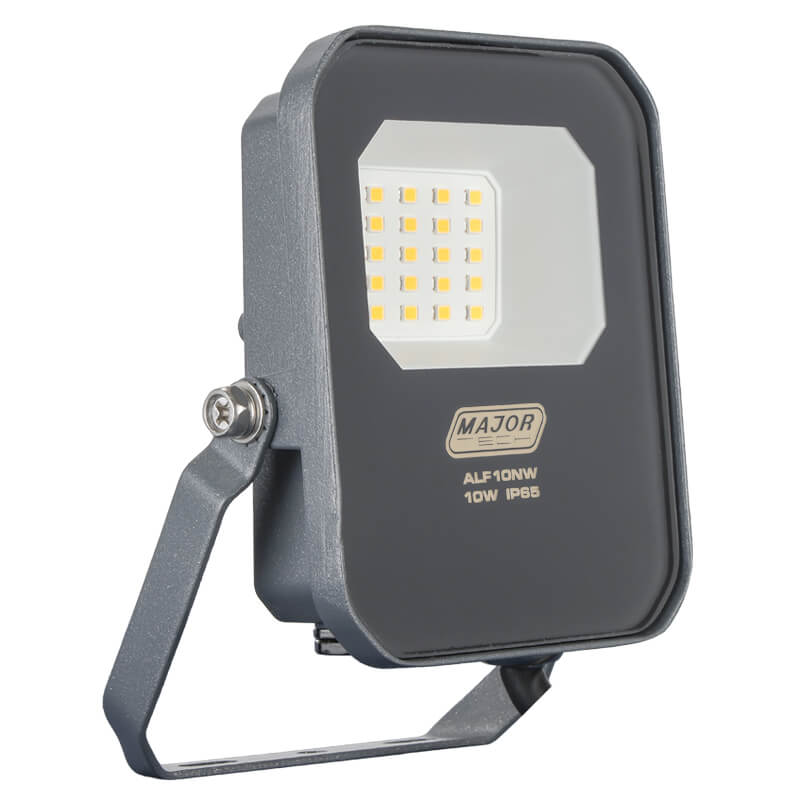

MajorTech LED floodlight features 10W output, 1400lm and 4000K neutral white colour. Ideal for outdoor area and security lighting.

Alternatively Known As: MajorTech ALF10NW Floodlight, 10W LED Floodlight, Outdoor LED Floodlight, Security LED Floodlight

Technical Specifications
  • Model: ALF10NW
  • Power: 10W
  • Luminous Output: 1400lm
  • Lumen Efficiency: 140lm/W
  • Colour Temperature: 4000K natural white
  • LED Type: SMD 2835
  • Input Voltage: 185–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • Colour Rendering Index: >80
  • Beam Angle: 110°
  • Ingress Protection: IP65
  • Impact Protection: IK07
  • Surge Protection: 2kV
  • Rated Life: 50,000 hours
  • Operating Temperature: -20°C to 45°C
  • Storage Temperature: -20°C to 65°C
  • Installation Height: 2m to 3m
  • Material: Die-cast aluminium housing with 4mm strengthened clear glass lens
  • Bracket: Angled bracket with 360° rotation
  • Dimensions (H x L x W): 92mm x 120mm x 34mm
  • Weight: 0.238 kg
Key Features
  • 1400 lumens from a 10W LED light source
  • 4000K natural white light for outdoor area and security lighting
  • IP65 dust and water protection
  • IK07 impact resistance
  • 2kV surge protection
  • 110° wide beam angle
  • 360° rotating mounting bracket for directional adjustment
  • 50,000-hour rated operating life
  • Breather hole helps manage internal pressure and condensation
  • High power factor above 0.9
Professional Installation Requirements
  • Installation must be carried out by a qualified electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. The fitting requires connection to 185–265V AC mains supply.
Applications
  • Outdoor area lighting
  • Security lighting
  • Driveways and pathways
  • Gardens and residential outdoor areas
  • Building façades and entrances
  • Signage and small commercial areas
  • Replacement for traditional halogen or metal-halide floodlights
Standards & Compliance
  • AS/NZS 60598.1: Luminaires – General requirements and tests
  • AS/NZS 60598.2.5: Luminaires – Particular requirements for floodlights
Environmental Benefits
  • High efficiency of 140lm/W can reduce energy consumption compared with traditional halogen floodlights for similar light output
  • 50,000-hour rated life can reduce replacement frequency and associated material waste
  • Aluminium housing and glass lens are durable materials with established recycling pathways
  • LED operation produces lower heat output than many traditional floodlight technologies
Warranty Information

5-year limited warranty, subject to MajorTech warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian distributors.
