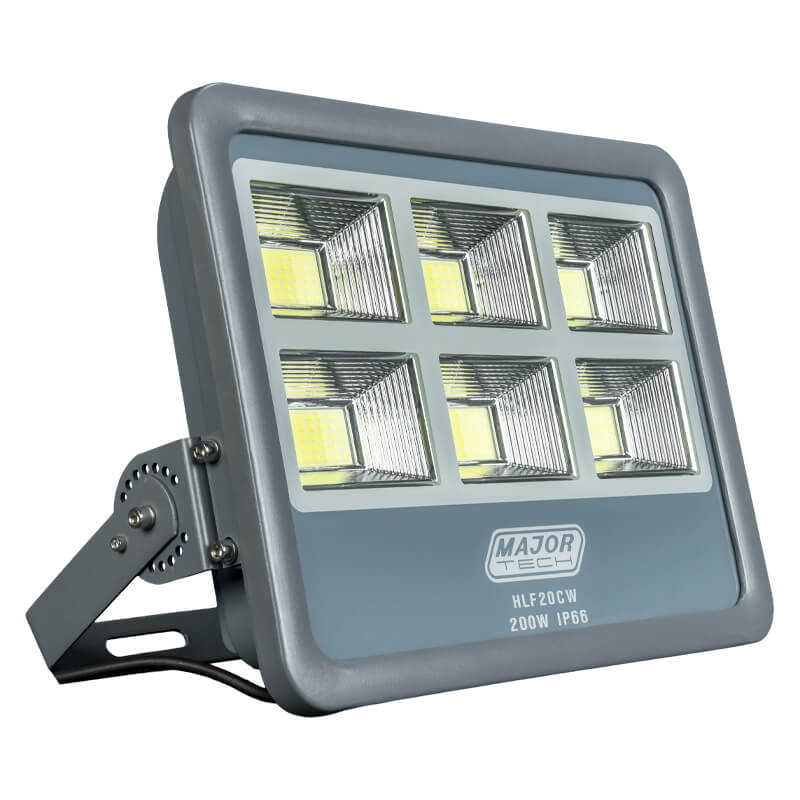

Floodlight LED 200W 24000lm 6000K MajorTech

BRAND: Major Tech
SKU: HLF20CW
$342.90 List price: $457.20
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED floodlight features 200W output, 24000lm and 6000K daylight colour. Ideal for outdoor area and security lighting.

Alternatively Known As: MajorTech HLF20CW LED Floodlight, Heavy-Duty LED Floodlight, Outdoor Area Floodlight

Technical Specifications
  • Power: 200W
  • Luminous Flux: 24,000 lm
  • Luminous Efficacy: 120 lm/W
  • Colour Temperature: 6500K cool white
  • LED Type: SMD 3518
  • Input Voltage: 85–265V AC
  • Frequency: 50/60Hz
  • Power Factor: Greater than 0.95
  • Colour Rendering Index: Greater than 70
  • Beam Angle: 120°
  • Rated Life: 50,000 hours
  • Housing Ingress Protection: IP66
  • Driver Ingress Protection: IP67
  • Impact Resistance: IK08
  • Surge Protection: 6kV
  • Cable Length: 500mm
  • Recommended Installation Height: 5–8m
  • Operating Temperature: -25°C to 50°C
  • Material: Heavy-duty rust-resistant aluminium frame
  • Dimensions (H x L x W): 75mm x 423mm x 323mm
  • Weight: 5.1 kg
Key Features
  • Produces 24,000 lumens from a 200W LED assembly
  • 6500K cool-white light suitable for outdoor area and security lighting
  • IP66-rated housing and IP67-rated isolated driver for outdoor use
  • IK08 impact resistance for demanding commercial and industrial environments
  • 6kV surge protection
  • 120° wide beam angle
  • Heavy-duty aluminium frame with corrosion-resistant construction
  • 50,000-hour rated LED life
  • Includes adjustable fixing brackets and 500mm cable
Professional Installation Requirements
  • Mains electrical connection should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Ensure the floodlight is securely mounted and correctly earthed where applicable.
Applications
  • Outdoor area lighting
  • Security lighting
  • Warehouses and industrial facilities
  • Agricultural holdings and farm buildings
  • Car parks and loading areas
  • Sports grounds and recreational facilities
  • Mining and other demanding commercial environments
Standards & Compliance
  • AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
  • AS/NZS 60598.2.5:2018 – Luminaires, particular requirements for floodlights
Environmental Benefits
  • LED technology provides high luminous efficacy of 120 lm/W, reducing energy use compared with many conventional floodlights
  • 50,000-hour rated life can reduce replacement frequency and associated waste
  • Aluminium housing is durable and recyclable at end of service life
  • Long service life supports lower maintenance and material consumption
Warranty Information

5-year extended warranty for HLF floodlights, subject to MajorTech warranty terms, proof of purchase and product registration requirements.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
