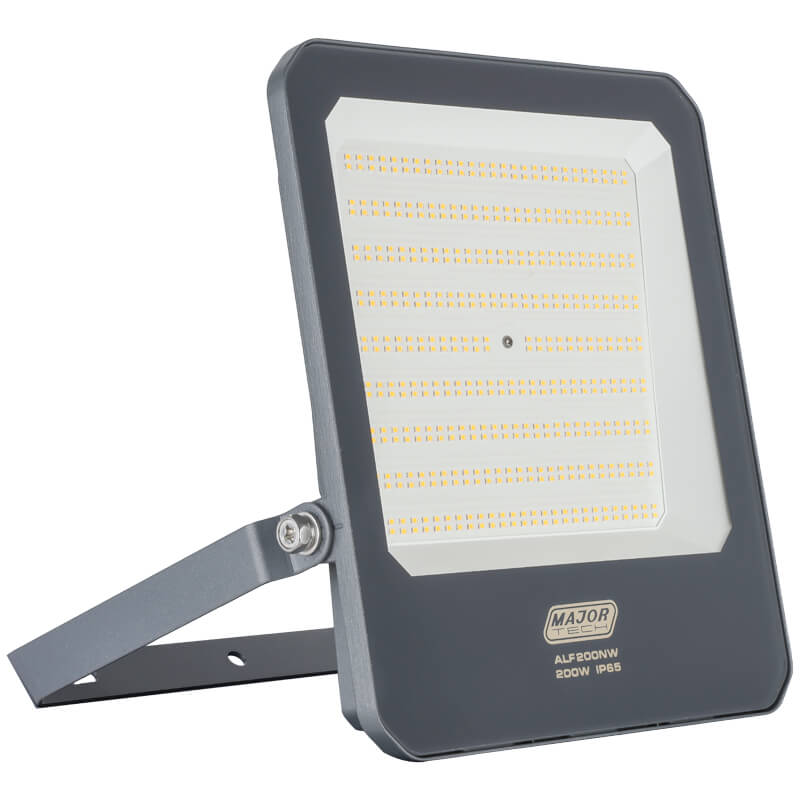

Floodlight LED 200W 30000lm 4000K MajorTech

BRAND: Major Tech
SKU: ALF200NW
$179.30 List price: $239.00
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED floodlight features 200W output, 30000lm and 4000K neutral white colour. Ideal for outdoor area and security lighting.

Alternatively Known As: Major Tech ALF200NW, High-Lumen LED Floodlight, 200W Outdoor LED Floodlight, Commercial LED Floodlight

Technical Specifications
  • LED Power: 200W
  • Luminous Output: 30,000 lm
  • Luminous Efficacy: 150 lm/W
  • Colour Temperature: 4000K natural white
  • LED Type: SMD 2835
  • Input Voltage: 185–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • Colour Rendering Index: >80 Ra
  • Beam Angle: 110°
  • Ingress Protection: IP65
  • Impact Rating: IK08
  • Surge Protection: 4kV
  • Rated Life: 50,000 hours
  • Operating Temperature: -20°C to 45°C
  • Storage Temperature: -20°C to 65°C
  • Construction: Die-cast aluminium housing with 4mm strengthened clear glass lens
  • Mounting: Angled bracket with 360° rotation
  • Recommended Installation Height: 5–8m
  • Compliance: IEC 60598-1, IEC 60598-2-5, AS/NZS 60598.1, AS/NZS 60598.2.5 and CISPR 15
  • Approvals: C-Tick, SAA, RCM, LOA, CE and RoHS
  • Dimensions (H x L x W): 314mm x 349mm x 50mm
  • Weight: 3.82 kg
Key Features
  • 30,000 lm output from a 200W LED floodlight
  • 4000K natural white light suitable for outdoor and security lighting
  • High luminous efficacy of 150 lm/W
  • IP65-rated dust and water protection
  • IK08 impact resistance for demanding environments
  • 4kV surge protection
  • 110° wide beam angle for broad area coverage
  • 360° adjustable mounting bracket
  • Breather hole designed to help reduce condensation
  • 50,000-hour rated operating life
  • Pre-connected IP65 cable gland
Professional Installation Requirements
  • Installation and mains electrical connection must be carried out by a qualified electrical professional in accordance with applicable wiring regulations, including AS/NZS 3000. Mounting height, fixing method, earthing and weather sealing should be verified for the installation environment.
Applications
  • Outdoor area lighting
  • Security lighting
  • Commercial building exteriors
  • Warehouses and industrial facilities
  • Car parks and loading areas
  • Workshops and agricultural buildings
  • Large compounds, yards and access roads
Standards & Compliance
  • AS/NZS 60598.1 for luminaires general requirements and tests
  • AS/NZS 60598.2.5 for floodlights
Environmental Benefits
  • 150 lm/W efficacy can reduce energy consumption compared with lower-efficiency traditional floodlights
  • 50,000-hour rated life can reduce replacement frequency and associated material waste
  • Aluminium housing and glass lens are durable materials with established recycling pathways
  • RoHS compliance supports reduced use of restricted hazardous substances
Warranty Information

5-year limited warranty for the ALF floodlight range, subject to Major Tech warranty terms, product registration requirements where applicable and exclusions for incorrect use, electrical surges, corrosion, unauthorised alterations or inadequate maintenance.

Available Now

Available through Major Tech and authorised Australian distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
