Trade Discount 25%

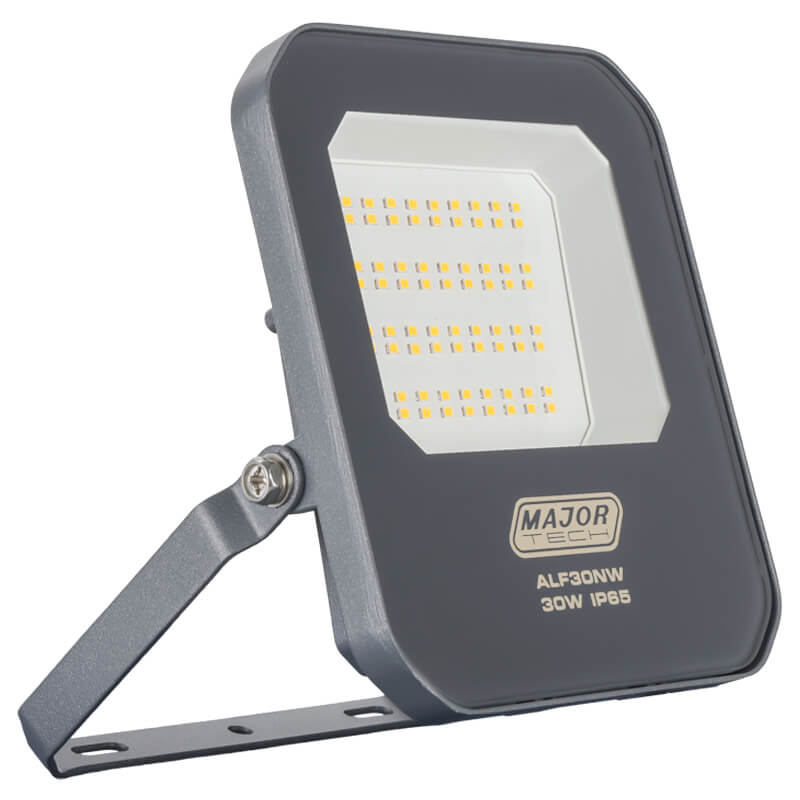

Floodlight LED 30W 4500lm 4000K MajorTech
MajorTech LED floodlight features 30W output, 4500lm and 4000K neutral white colour. Ideal for outdoor area and security lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech ALF30NW Floodlight, High-Lumen LED Floodlight, Outdoor LED Security Floodlight
Technical Specifications
- Model: ALF30NW
- LED Output: 4500 lumens
- Power Consumption: 30W
- Luminous Efficacy: 150 lm/W
- Colour Temperature: 4000K natural white
- LED Type: SMD 2835
- Input Voltage: 185–265V AC
- Frequency: 50/60Hz
- Power Factor: >0.9
- Colour Rendering Index: >80 CRI
- Beam Angle: 110°
- Ingress Protection: IP65
- Impact Protection: IK07
- Surge Protection: 2kV
- Rated Life: 50,000 hours
- Operating Temperature: -20°C to 45°C
- Storage Temperature: -20°C to 65°C
- Installation Height: 2–5m
- Housing and Lens: Die-cast aluminium housing with 4mm strengthened clear glass lens
- Mounting: Angled bracket with 360° rotation
- Dimensions (H x L x W): 176mm x 157mm x 40mm
- Weight: 0.583 kg
Key Features
- 4500-lumen output from a 30W LED module
- High luminous efficacy of 150 lm/W
- 4000K neutral white light for outdoor area and security lighting
- IP65 dust-tight and water-jet-resistant construction
- IK07 impact protection
- 2kV surge protection
- 110° wide beam angle
- 360° rotating angled mounting bracket
- 50,000-hour rated LED life
- Breather hole to assist housing pressure equalisation
- Low-maintenance aluminium housing and strengthened glass lens
Professional Installation Requirements
- Installation and mains electrical connection must be performed by a qualified electrician in accordance with applicable Australian wiring requirements, including AS/NZS 3000. Ensure power is isolated before installation or maintenance.
Applications
- Outdoor area lighting
- Security lighting
- Driveways and entrances
- Gardens and pathways
- Car parks and commercial premises
- Building, sign and feature illumination
Standards & Compliance
- AS/NZS 60598.1:2017 - Luminaires, general requirements and tests
- AS/NZS 60598.2.5 - Luminaires, particular requirements for floodlights
Environmental Benefits
- 150 lm/W luminous efficacy helps reduce energy consumption compared with lower-efficiency floodlights
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Die-cast aluminium housing and glass lens are recyclable materials
- RoHS compliance supports restriction of hazardous substances
Warranty Information
5-year limited warranty for MajorTech ALF floodlights, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian distributors.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
