Hi-Lift Condensate Pump | 11L/h Max Flow Rate | 12m Head | IP20 Rated | by Aspen Pumps
The Hi-Lift Condensate Pump is designed for efficient condensate removal in HVAC applications, featuring a maximum flow rate of 11L/h and a vertical discharge capability of up to 12m. With a built-in spirit level for easy installation and thermal protection for motor safety, this pump is perfect for ducted and cassette air conditioning units, ensuring reliable performance and preventing water damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hi-Lift Condensate Pump | 11L/h Max Flow Rate | 12m Head | IP20 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2099
Alternatively Known As: Condensate Pump, Peristaltic Pump, HVAC Drain Pump, High Lift Condensate Pump
Technical Specifications
- Max flow rate: 11L/h at 12m head
- Maximum recommended head: 12m
- Tank capacity: 1L
- Noise level: 51 dB(A) at 1 meter
- Power supply: 230 VAC, 0.4A, 50/60Hz
- Rated for continuous operation
- Maximum water temperature: 40°C (104°F)
- Inlet size: 25mm
- Outlet size: 6mm
- IP Protection rating: IP20
- Safety switch: 3.0A normally closed
- Thermal protection included

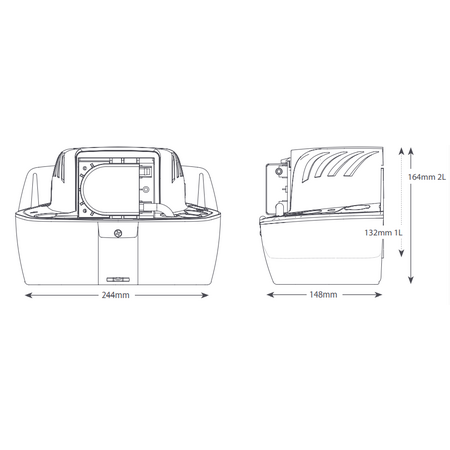

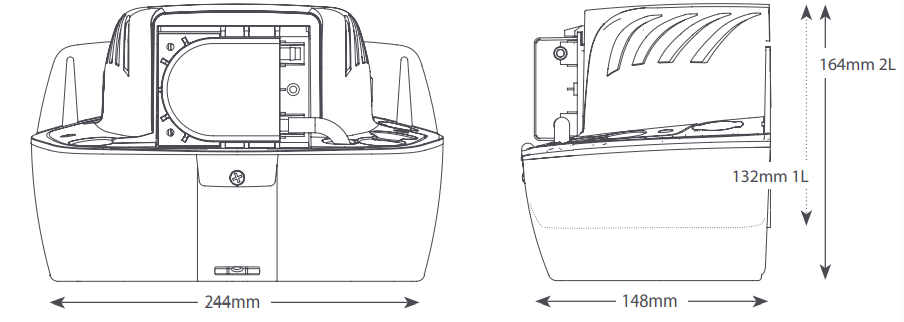

- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 1.2 kg
Key Features
- High vertical discharge capability
- Easy to fit and maintain
- Built-in spirit level for accurate installation
- Thermal protection for motor safety
- Safety switch rated at 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Ducted air conditioning units
- Cassette air conditioning units
Standards & Compliance
- Complies with AS/NZS 60335 - Safety of household and similar electrical appliances (related to electrical safety)
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Hi-Lift 1L Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC applications requiring reliable condensate drainage with high vertical lift.
