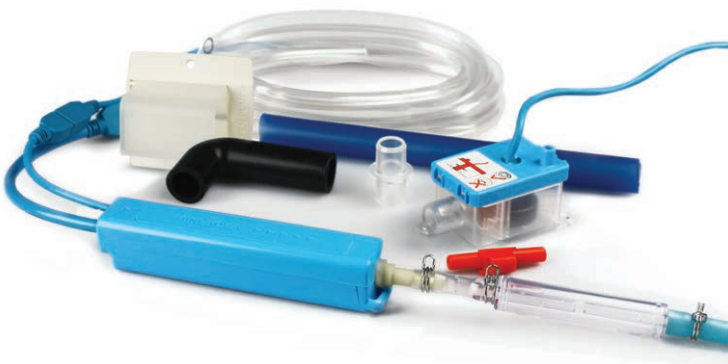

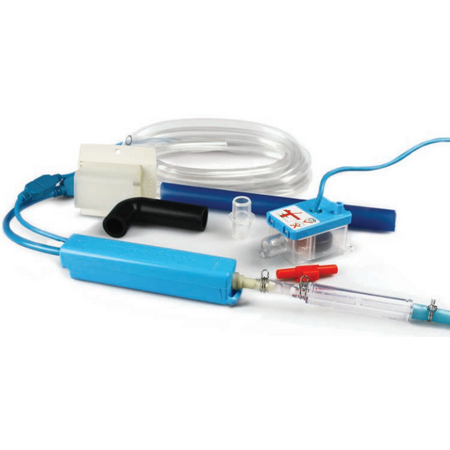

Silent+ Mini Aqua Condensate Pump | 12L/h Max Flow Rate | 19dB Noise Level | IP24 Rated | by Aspen Pumps
The Silent+ Mini Aqua condensate pump is designed for quiet and efficient operation, featuring a maximum flow rate of 12L/h and a noise level of just 19dB. Ideal for high wall mini split systems and installations behind AC units, this pump ensures reliable condensate removal while preventing water damage and mold growth. With its plug & play design and included anti-siphon device, it's perfect for both residential and commercial HVAC applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Silent+ Mini Aqua Condensate Pump | 12L/h Max Flow Rate | 19dB Noise Level | IP24 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3326
Alternatively Known As: Mini Aqua Pump, Silent+ Aqua Pump, Condensate Pump for AC, HVAC condensate removal pump
Technical Specifications
- Max flow rate: 12L/h at 0 head
- Max recommended head: 10m
- Max suction lift: 1.5m
- Noise level: 19dB(A) @ 1m (Silent+ Aqua), 21dB(A) @ 1m (Mini Aqua)
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Discharge tube size: 6mm ID
- IP Protection rating: IP24
- Safety switch: 3.0A normally closed
- Thermal protection included
- Fully potted motor
- Self-priming pump
- Dimensions (H x L x W): 70mm x 150mm x 100mm
- Weight: 0.3 kg
Key Features
- Quietest and reliable operation
- Plug & play design
- Anti-siphon device included
- Silent+ extras to reduce noise and vibration: Acoustic damper, silicon tubing, rubber bracket
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- High wall mini split systems
- Installation behind AC units
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Helps prevent water damage and mold growth by efficient condensate removal
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps Silent+ Mini Aqua Condensate Removal Pump is available now for immediate purchase. Ideal for residential and commercial HVAC applications requiring quiet and compact condensate removal solutions.
