Silent+ Mini Lime Condensate Pump | 10m Max Head | 20 dB(A) Noise Level | IP24 Rated | by Aspen Pumps
The Silent+ Mini Lime Condensate Pump is designed for quiet and efficient condensate removal in commercial HVAC systems. With a maximum head of 10m and a noise level of just 20 dB(A), it’s perfect for applications where silence is crucial. Built with anti-vibration dampers and LED operating feedback, this pump ensures reliable performance and easy maintenance, making it ideal for high wall split systems up to 16kW.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Silent+ Mini Lime Condensate Pump | 10m Max Head | 20 dB(A) Noise Level | IP24 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3312
Alternatively Known As: Silent Plus Mini Lime Condensate Pump, Aspen Mini Lime Pump, Silent+ Mini Condensate Pump
Technical Specifications
- Max recommended head: 10m
- Noise level: 20 dB(A) at 1m
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Discharge tube: 6mm internal diameter
- IP Protection: IP24
- Safety switch: 5.0A Normally Closed/Open
- Thermal protection included
- Fully potted motor
- Self-priming pump
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Anti-vibration damper reduces noise and vibration

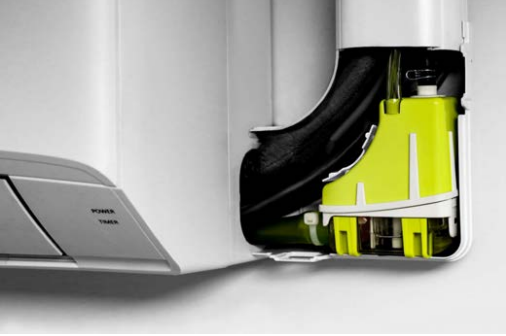

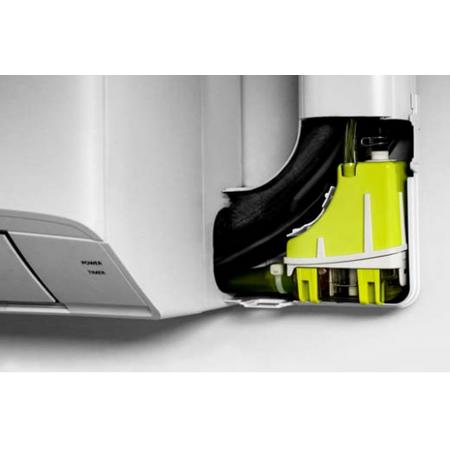

- Pump sits in trunking elbow for compact installation
- LEDs provide visual operating feedback for easy commissioning and monitoring
- Built-in sound absorbing materials for quiet operation
- Quick release reservoir for easy maintenance
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper commissioning and compliance with safety standards.
Applications
- Commercial use where silence is important
- High wall split systems up to 16kW / 54,000Btu/h
- Left or right installation with range of trunking systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Quiet operation minimizes noise pollution in commercial environments
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Silent+ Mini Lime Condensate Removal Pump is available now for immediate purchase. Ideal for commercial HVAC systems requiring quiet and reliable condensate removal.
