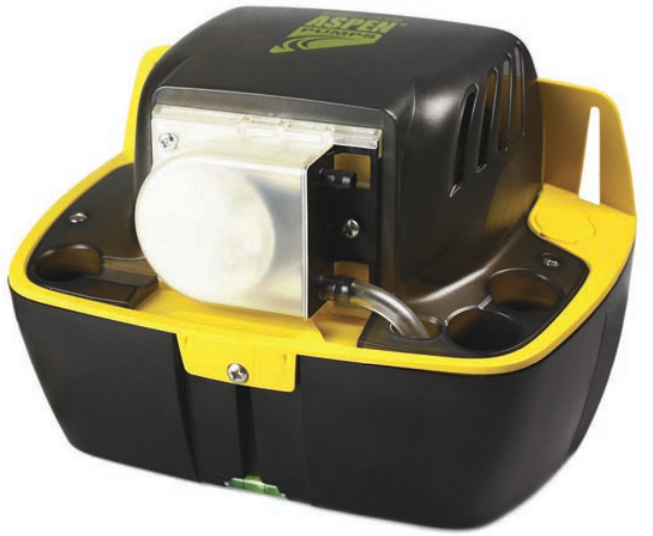

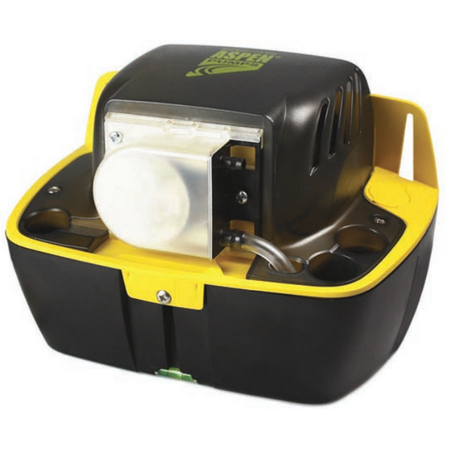

Hi-Lift Condensate Pump 2L | 11L/h Max Flow Rate | IP20 Rated | by Aspen Pumps
The Hi-Lift Condensate Pump 2L is designed for efficient condensate removal in ducted and cassette air conditioning units. With a maximum flow rate of 11L/h at a 12m head and a built-in safety switch, it ensures reliable operation and safety. Ideal for HVAC systems, this pump helps prevent water damage and mold growth, promoting healthier indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hi-Lift Condensate Pump 2L | 11L/h Max Flow Rate | IP20 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2071
Alternatively Known As: Condensate Pump, Peristaltic Pump, Hi-Lift Condensate Removal Pump
Technical Specifications
- Max flow rate: 11L/h at 12m head
- Maximum recommended head: 12m
- Tank capacity: 2L
- Noise level: 51 dB(A) at 1m
- Power supply: 230 VAC, 0.4A, 50/60Hz
- Rated for continuous operation
- Maximum water temperature: 40°C (104°F)
- Inlet size: 25mm
- Outlet size: 6mm
- IP Protection rating: IP20
- Safety switch: 3.0A normally closed
- Thermal protection included
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 1.2 kg
Key Features
- High vertical discharge capability
- Easy to fit and maintain
- Built-in spirit level for accurate installation
- Thermal protection for motor safety
- Safety switch rated at 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Ducted air conditioning units
- Cassette air conditioning units
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Hi-Lift 2L Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC systems requiring reliable condensate management with high vertical discharge.
