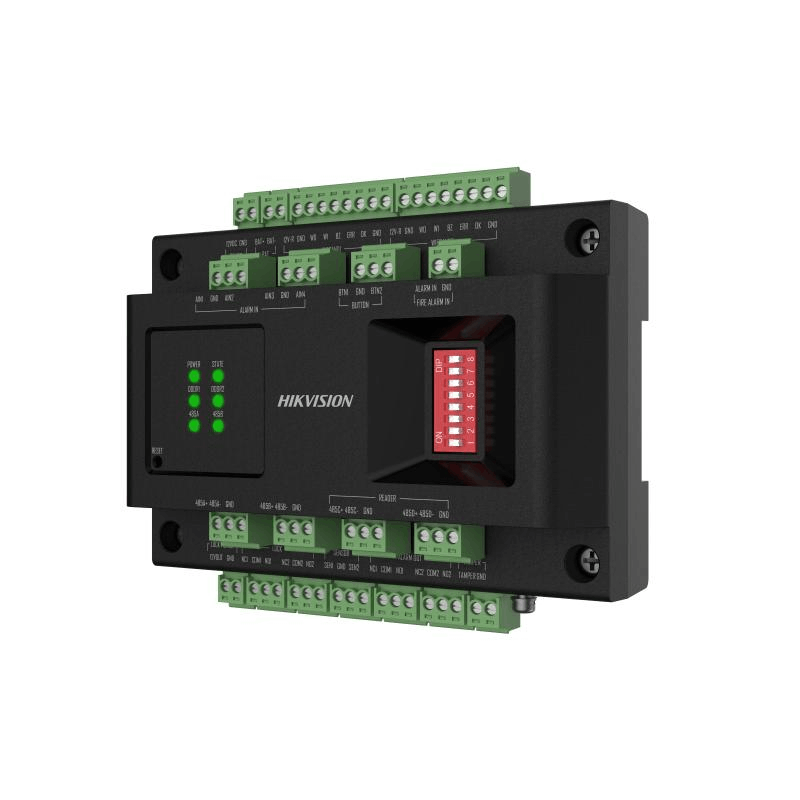

HIKVISION Access Control 2-Door Control Module | RS-485 Connection | Easy Guide Rail Installation | by HIKVISION
The HIKVISION Access Control 2-Door Control Module is designed for efficient security management in commercial buildings. With support for RS-485 connections to access controllers and card readers, it ensures seamless integration. Ideal for professional installations, this module features indicators for power and door status, making it a reliable choice for enhancing security in offices and facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Access Control 2-Door Control Module | RS-485 Connection | Easy Guide Rail Installation | by HIKVISION
Brand: HIKVISION
SKU: DS-K2M002X
Alternatively Known As: 2-Door Access Control Module, K2M002X Control Board, HIKVISION Door Controller Module
Technical Specifications
- Supports 2 door control
- Connection to access controller via RS-485
- Card reader connection via RS-485 (OSDP) or Wiegand
- Guide rail installation
- Indicators for power, communication, running, and door status
- Dimensions (H x L x W): 100mm x 40mm x 150mm
- Weight: 1.2 kg
Key Features
- Supports 2 door control with connection to access controller via RS-485
- Connects with card reader via RS-485 (OSDP) or Wiegand
- Installs easily with guide rail
- Supports battery charging and discharging
- Includes indicators for power status, communication status, running status, and door status
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and safety.
Applications
- Access control systems for commercial buildings
- Security management in offices and facilities
- Integration with card readers and access controllers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports battery charging and discharging to optimize power usage
- Designed for energy-efficient operation in access control systems
Warranty Information
2 years warranty from the date of purchase covering manufacturing defects.
Available Now
The HIKVISION K2M002X 2-Door Control Module is available for immediate purchase, ideal for commercial and industrial access control applications.
