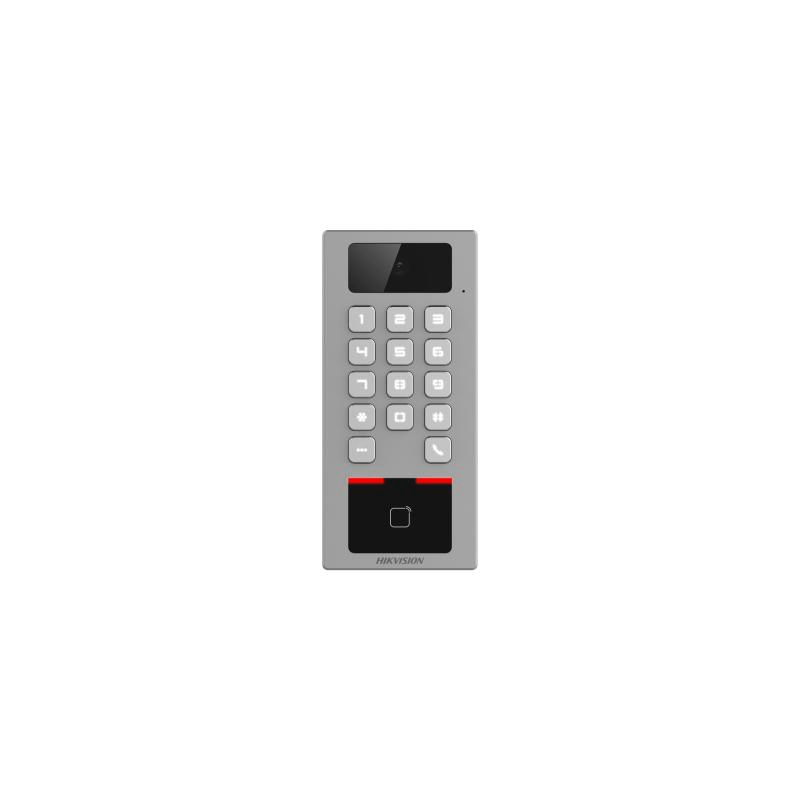

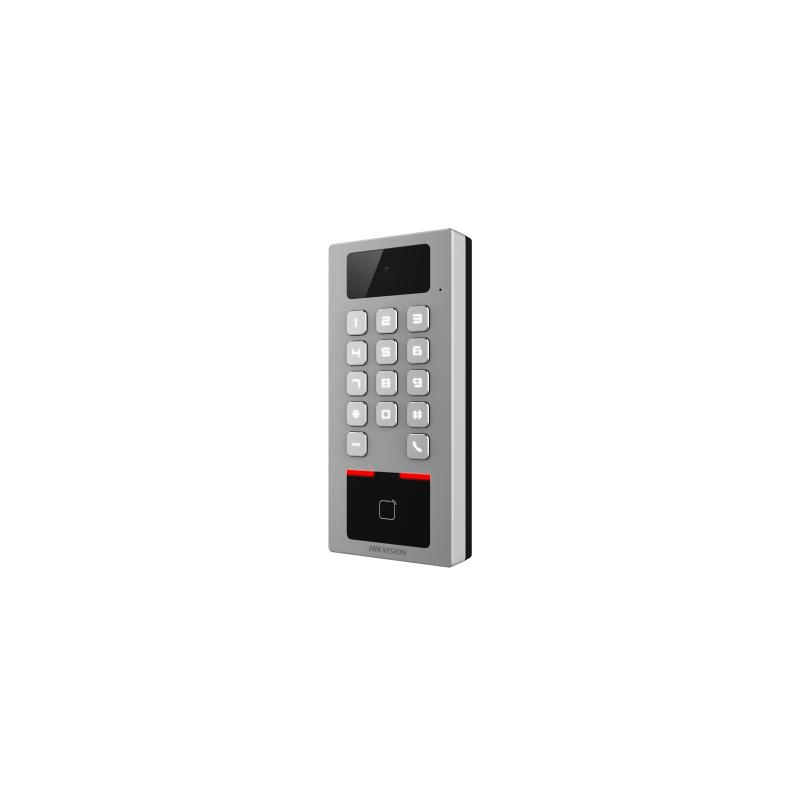

HIKVISION Access Control Terminal K1T502DBWX-C | IP65 & IK09 Rated | Card & PIN Authentication | by HIKVISION
The HIKVISION Access Control Terminal K1T502DBWX-C combines robust security features with user-friendly access management. With IP65 and IK09 ratings, it’s designed for durability in various environments. This terminal supports both card and PIN authentication, making it ideal for commercial and residential applications. Enjoy seamless integration with external access controllers and video intercom capabilities via SIP protocol, all managed conveniently through the Hik-Connect mobile app.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Access Control Terminal K1T502DBWX-C | IP65 & IK09 Rated | Card & PIN Authentication | by HIKVISION
Brand: HIKVISION
SKU: DS-K1T502DBWX-C
Alternatively Known As: HIKVISION Access Control Terminal, K1T502DBWX-C, Hikvision Card Reader Terminal, IP65 Access Control Device
Technical Specifications
- IP65 and IK09 rated for dust and impact protection
- Supports card and PIN authentication methods
- Video intercom via SIP protocol compatible with Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX, PBX ware
- RS-485 communication interface for external card reader and elevator control
- Supports Wiegand protocol for external access controller connection
- Supports AP mode for network flexibility
- Up to 256 GB Micro SD card support for storage
- Configurable network priority between wired and wireless
- Dimensions (H x L x W): 200mm x 40mm x 120mm
- Weight: 1.2 kg
Key Features
- Manage access control and intercom functions in one device
- IP65 & IK09 protections with zinc alloy materials for increased stability
- Supports multiple authentication methods including card and PIN
- Remote control via Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Video intercom via SIP protocol supporting multiple SIP servers
- RS-485 communication for external card reader and elevator calling
- Supports AP mode for flexible network configuration
- Press calling button to call management center, indoor stations, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings in platform and local modes
- Configurable priority for wired and wireless networks
Professional Installation Requirements
- Installation by a qualified security systems technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Access control management for commercial and residential buildings
- Intercom functions for secure communication
- Integration with external access controllers and elevators
- Remote access control via mobile app
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc alloy construction reduces need for frequent replacements
- Supports remote management reducing onsite visits and associated emissions
Warranty Information
2 years warranty covering manufacturing defects and hardware failures.
Available Now
The HIKVISION ACCESS K1T502DBWX-C Control Terminal is available for immediate purchase, ideal for commercial and residential access control and intercom applications.
