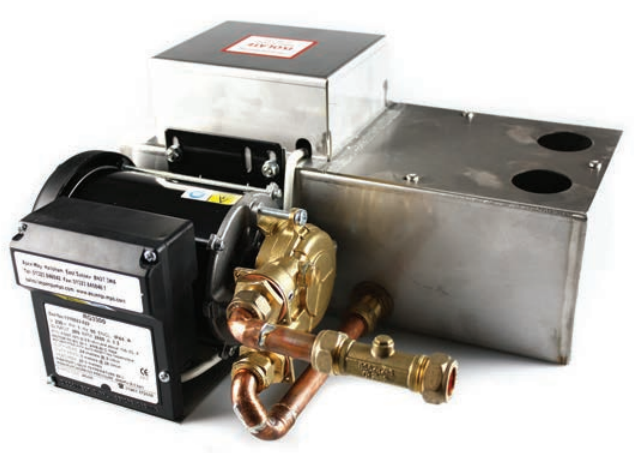

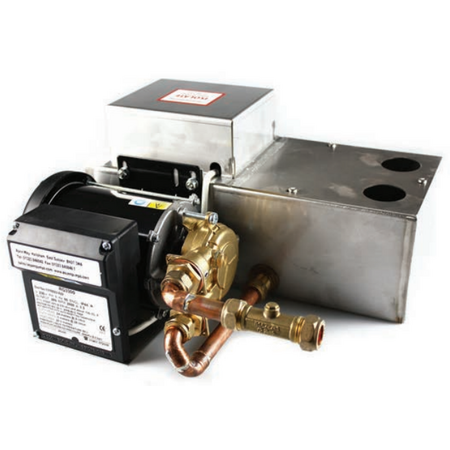

Hot Water Heavy Duty Condensate Pump | 1800L/h Flow Rate | 100°C Max Temperature | IP21 Rated | by Aspen Pumps
The Hot Water Heavy Duty Condensate Pump is designed for efficient condensate removal in HVAC, refrigeration, and boiler applications. With a high flow rate of 1800L/h and capable of handling water temperatures up to 100°C, this pump ensures reliable performance. Its IP21 rating provides protection against solid objects and dripping water, making it a safe choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hot Water Heavy Duty Condensate Pump | 1800L/h Flow Rate | 100°C Max Temperature | IP21 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2132
Alternatively Known As: Heavy Duty Condensate Pump, Hot Water Condensate Pump, High Temperature Condensate Removal Pump
Technical Specifications
- Max flow rate: 1800L/h at 0 head
- Max recommended head: 15m
- Tank capacity: 5L
- Noise level: 63 dB(A) at 1m
- Power supply: 230 VAC, 1.5A, 50/60Hz
- Rated for continuous operation
- Max water temperature: 100°C
- Inlet size: 40mm
- Outlet size: 15mm
- IP Protection: IP21
- Safety switch: 3.0A normally closed
- Thermal protection included
- Dimensions (H x L x W): 250mm x 300mm x 200mm
- Weight: 3.5 kg
Key Features
- High flow rate of 1800L/h
- Handles water temperatures up to 80°C
- Non-return valve included
- Easy installation
- Thermal protection for safety
- IP21 rated for protection against solid objects and dripping water
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper electrical and plumbing connections and compliance with safety standards.
Applications
- Air handling units (AHUs)
- Humidifiers
- Boilers
- Refrigeration systems
Standards & Compliance
- Complies with AS/NZS 60335 for safety of household and similar electrical appliances
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
- Energy-efficient operation reduces power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Hot Water Heavy Duty Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC, refrigeration, and boiler condensate management applications.
