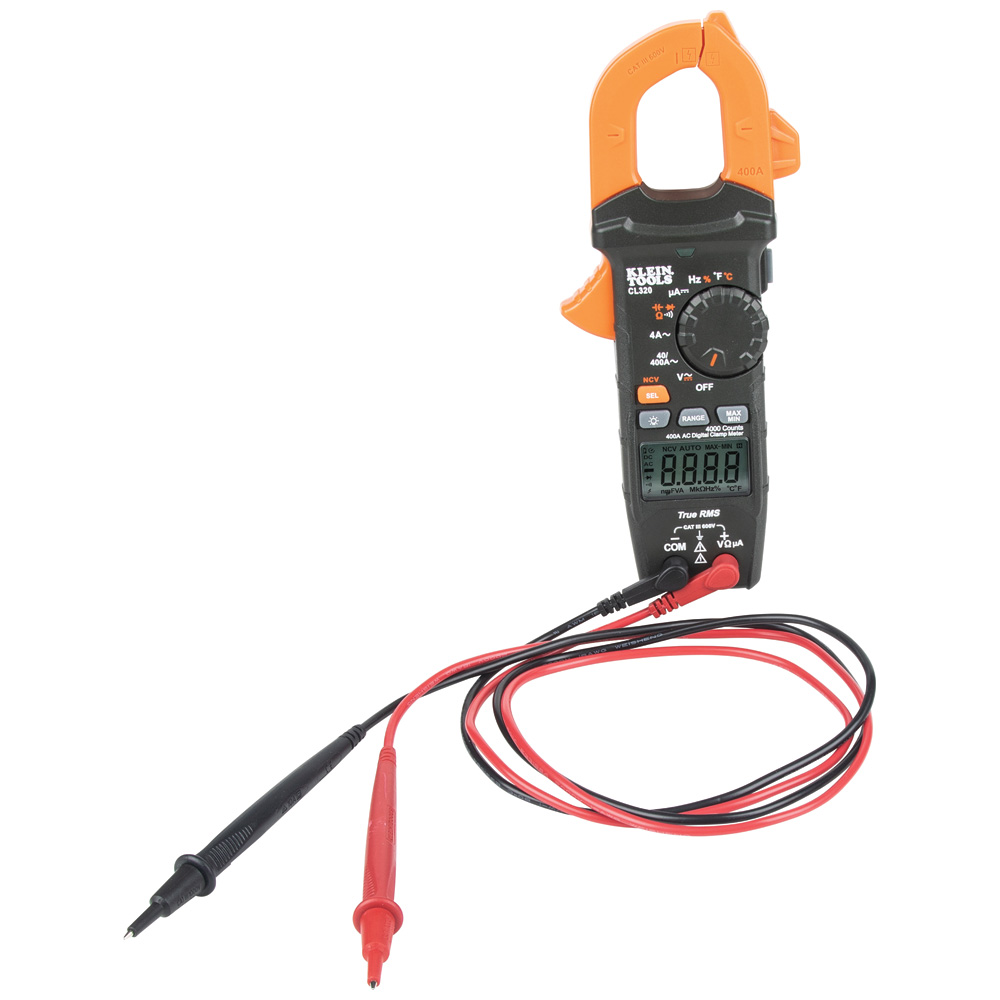

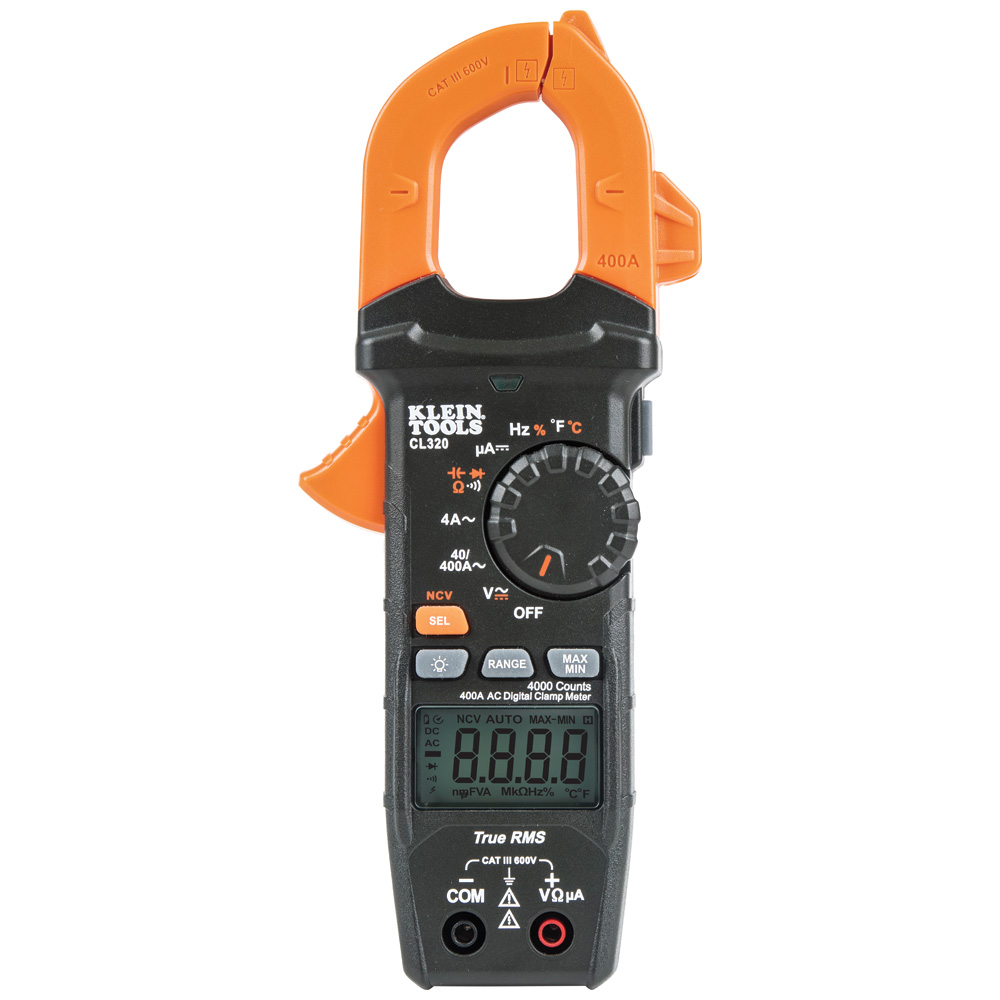

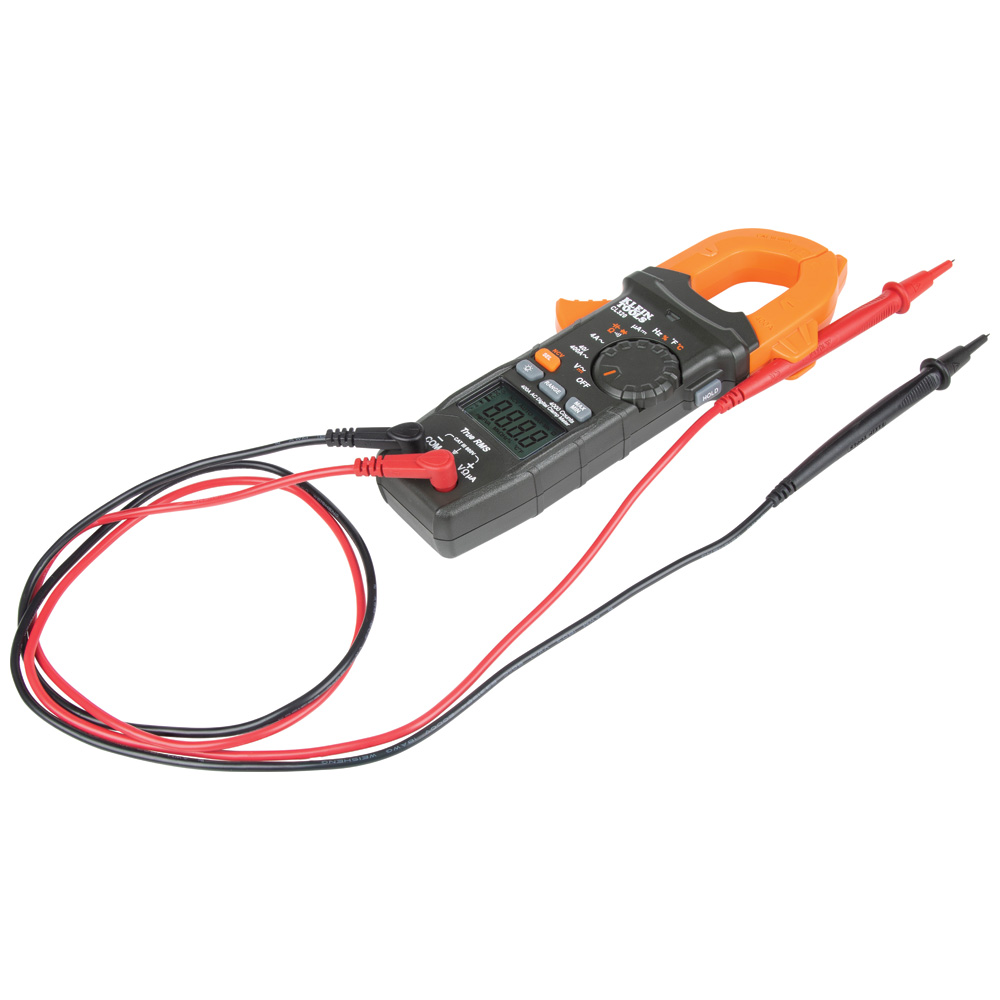

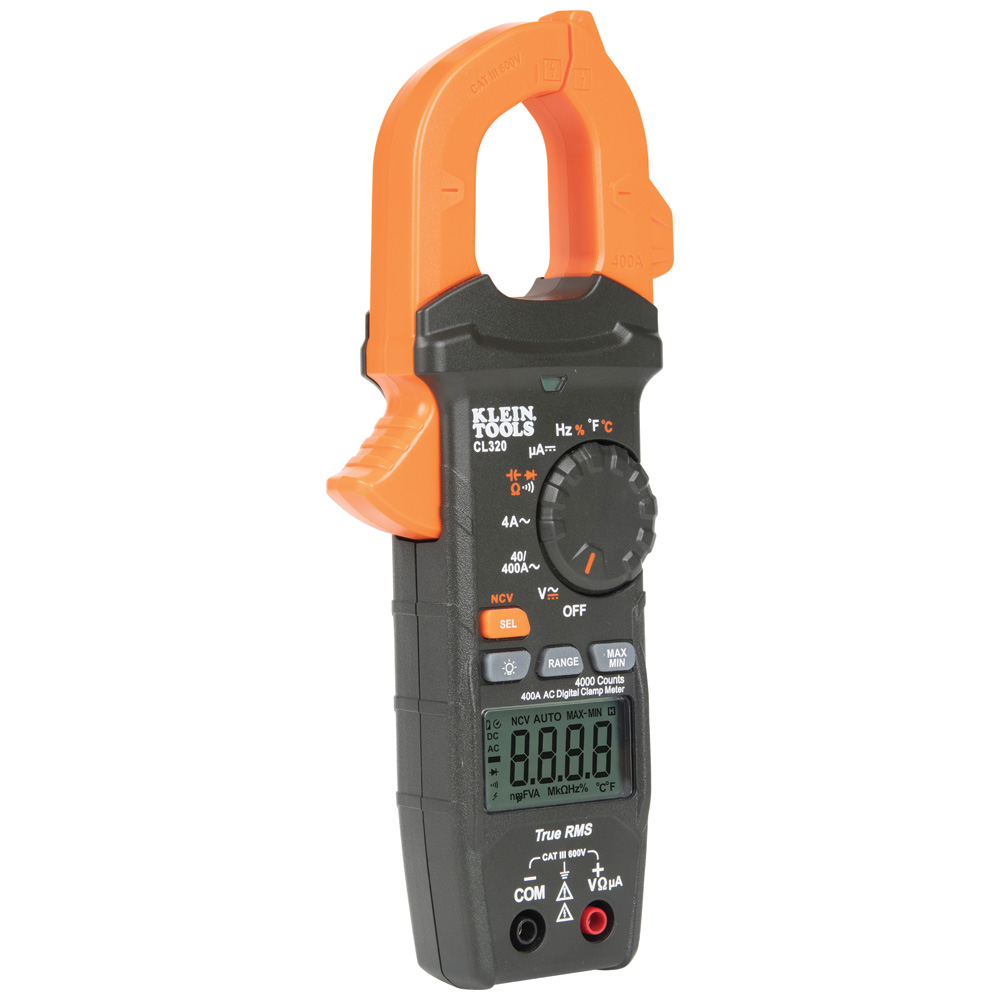

HVAC Digital Clamp Meter | AC Auto-Ranging 400 Amp | TRMS Measurement | Backlit LCD Display | by Wattmaster
The HVAC Digital Clamp Meter is designed for HVAC professionals, offering AC auto-ranging up to 400 amps and true RMS measurement for accurate readings. With a backlit LCD display, it ensures visibility in low light, making it ideal for electrical diagnostics in residential and commercial settings. This versatile tool also measures AC/DC voltage, resistance, and temperature, providing comprehensive functionality for all your electrical needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HVAC Digital Clamp Meter | AC Auto-Ranging 400 Amp | TRMS Measurement | Backlit LCD Display | by Wattmaster
Brand: Wattmaster
SKU: A-CL320
Alternatively Known As: Digital Clamp Meter, HVAC Clamp Meter, TRMS Clamp Meter, AC Clamp Meter, Auto-Ranging Clamp Meter
Technical Specifications
- AC Current Measurement: 400 A
- Voltage Measurement: 600 V AC/DC
- Resistance Range: 40 MΩ
- Frequency Range: 10 Hz to 60 kHz
- Capacitance Range: 4000 µF
- DC Microamp Range: 200 µA
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Jaw Size: 1.6 inches (4.1 cm)
- Display: 4000 count backlit LCD (1.57 x 0.87 inches)
- Safety Rating: CAT III 600 V, Class 2, Double Insulation
- Drop Protection: 2 meters (6.6 feet)
- Power: 3 x AAA batteries
- Dimensions (H x L x W): 38mm x 215mm x 89mm
- Weight: 0.314 kg
Key Features
- Automatically ranging true RMS (TRMS) digital clamp meter
- Measures AC current up to 400A and NCVT via clamp

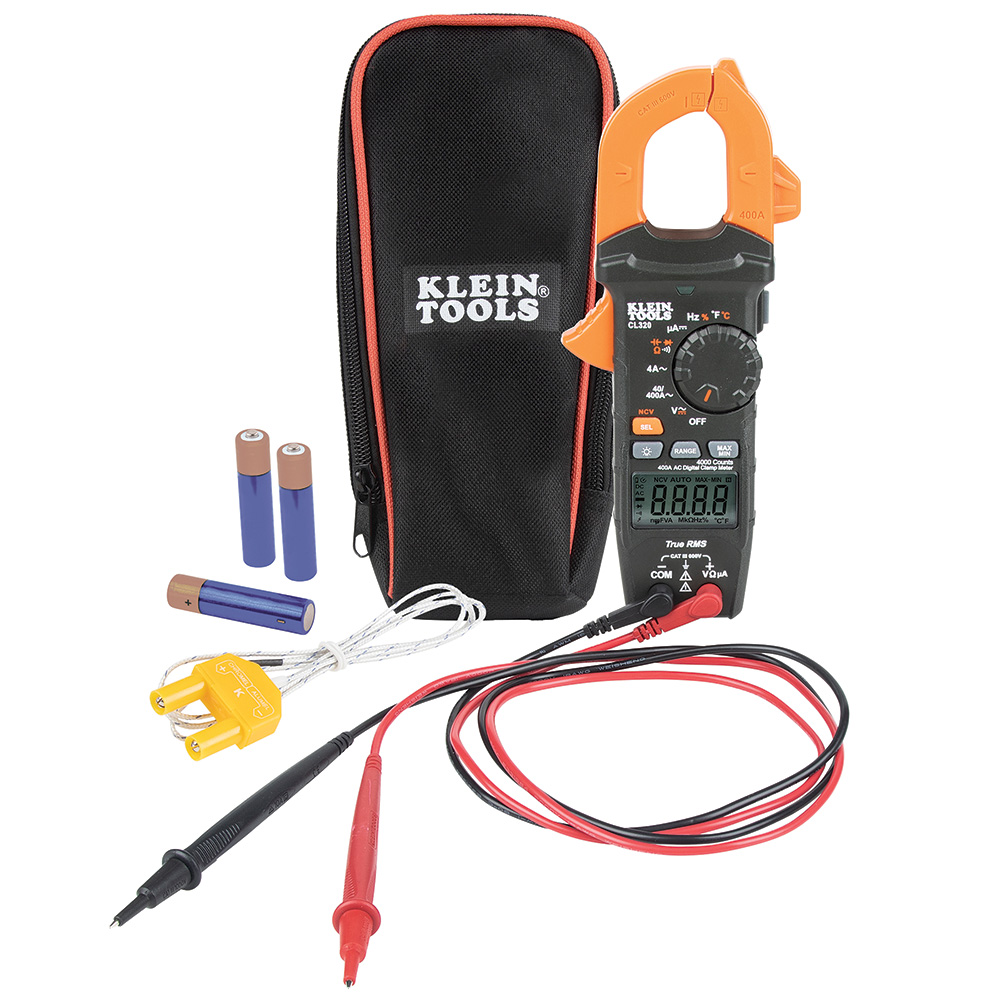

- Measures AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test leads
- Temperature measurement with K-Type thermocouple probe
- Backlit 4000 count LCD display for easy viewing in low light
- Auto power-off after 10 minutes to conserve battery life
- Test lead holder and optional magnetic hanger for hands-free operation
- Built to withstand 2 m (6.6 ft) drop
- CAT III 600 V, Class 2, double insulation safety rating

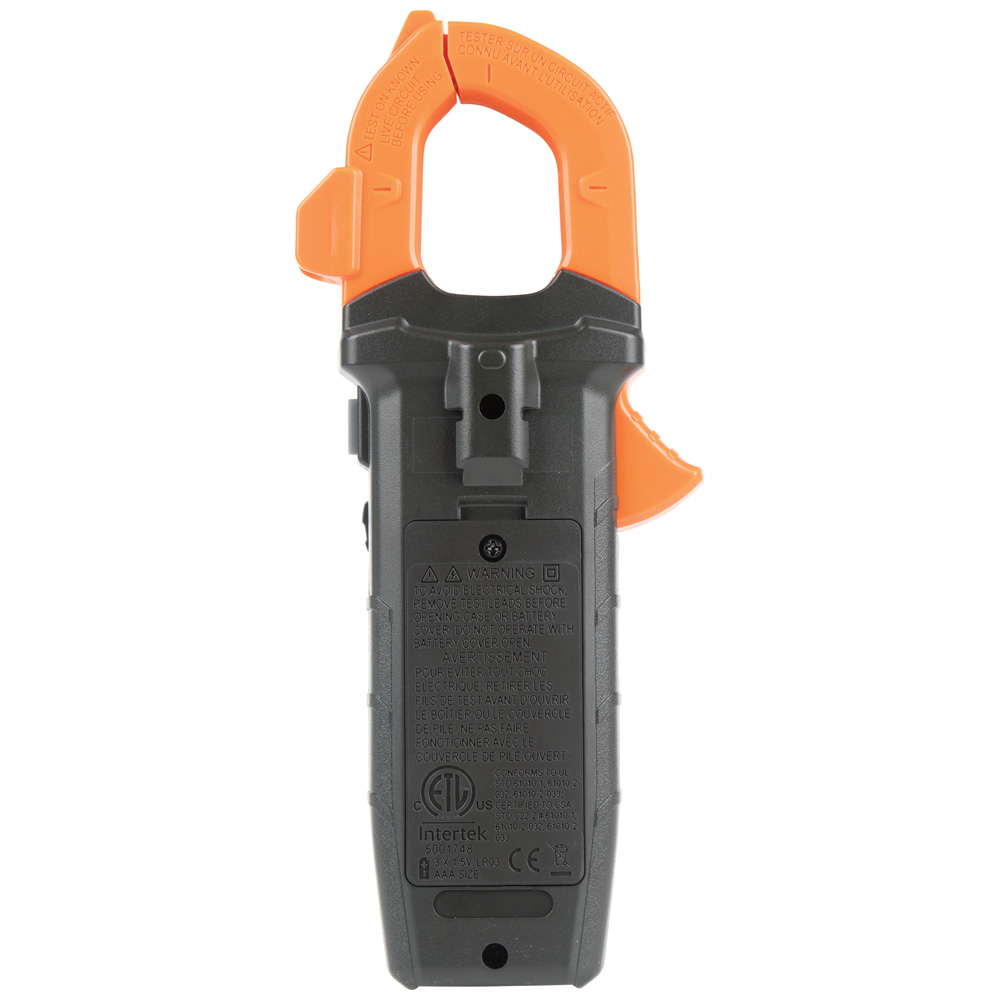

- Low battery indicator and accessible battery compartment
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge and follow all safety instructions for safe operation.
Applications

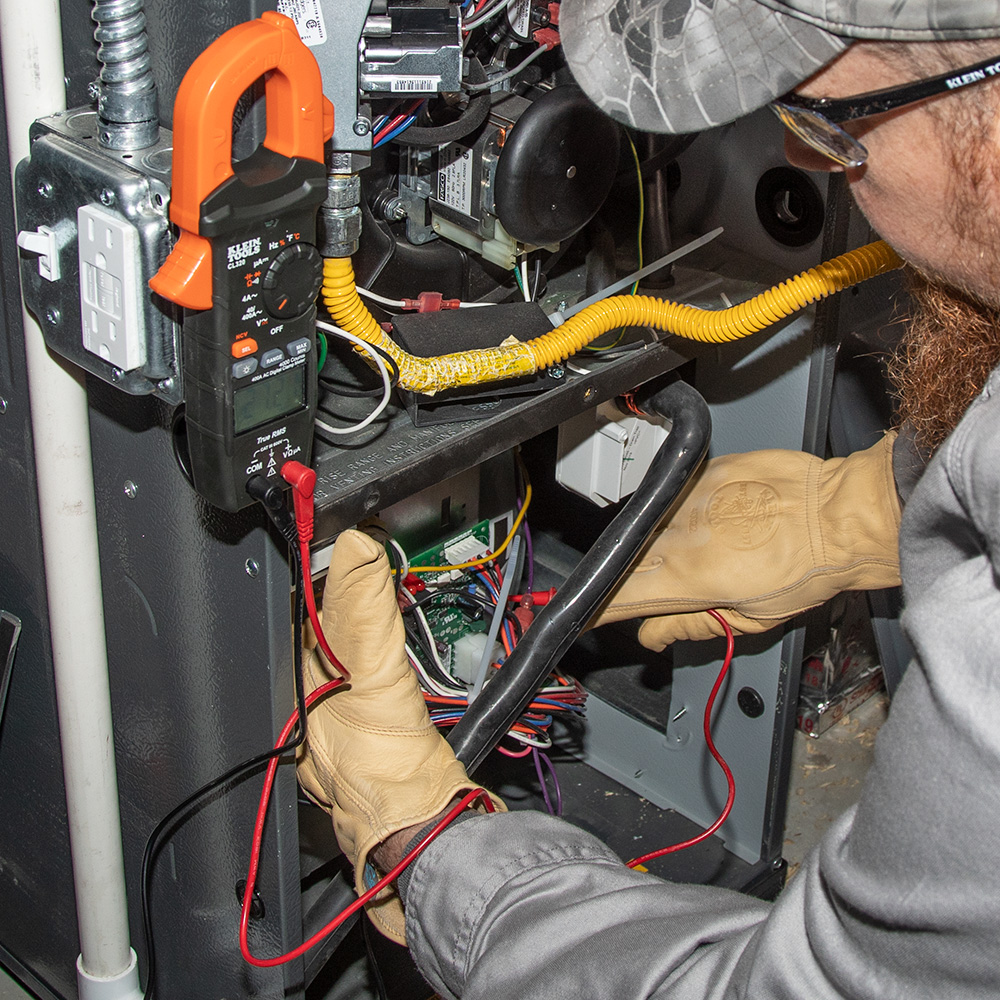

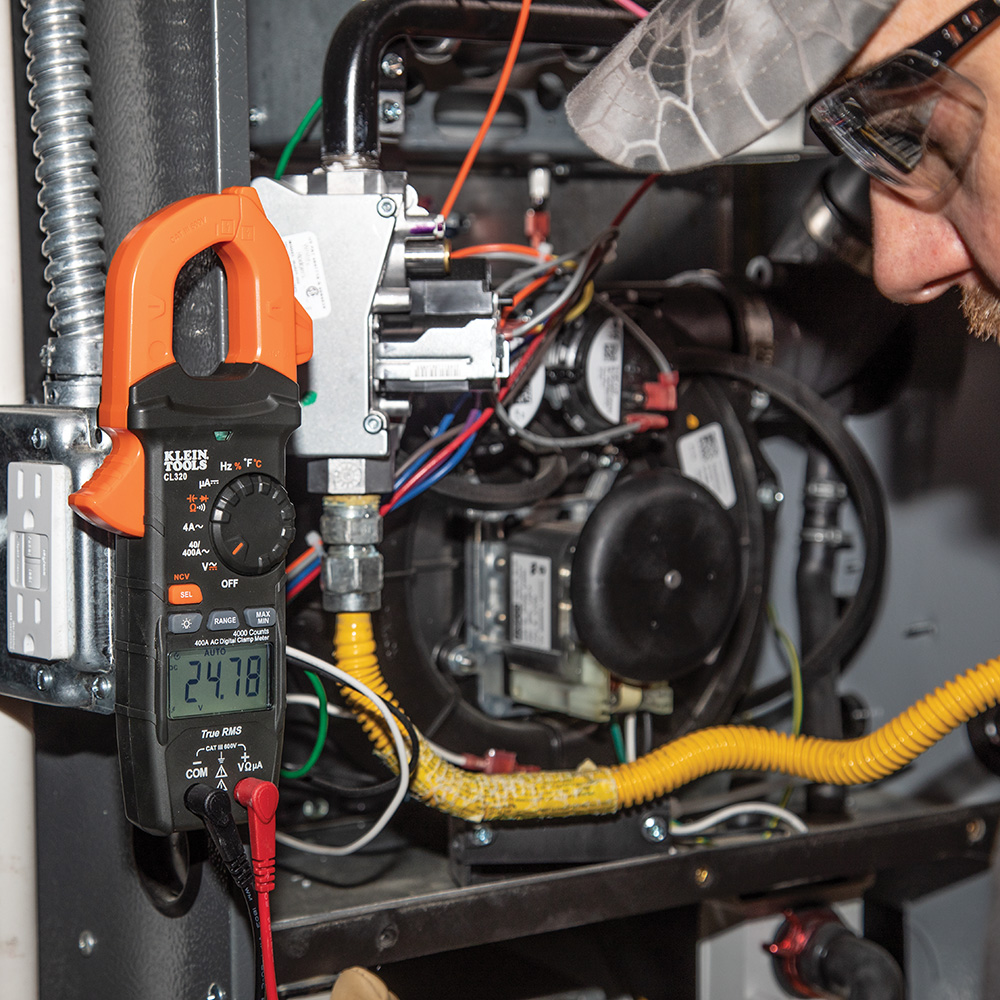

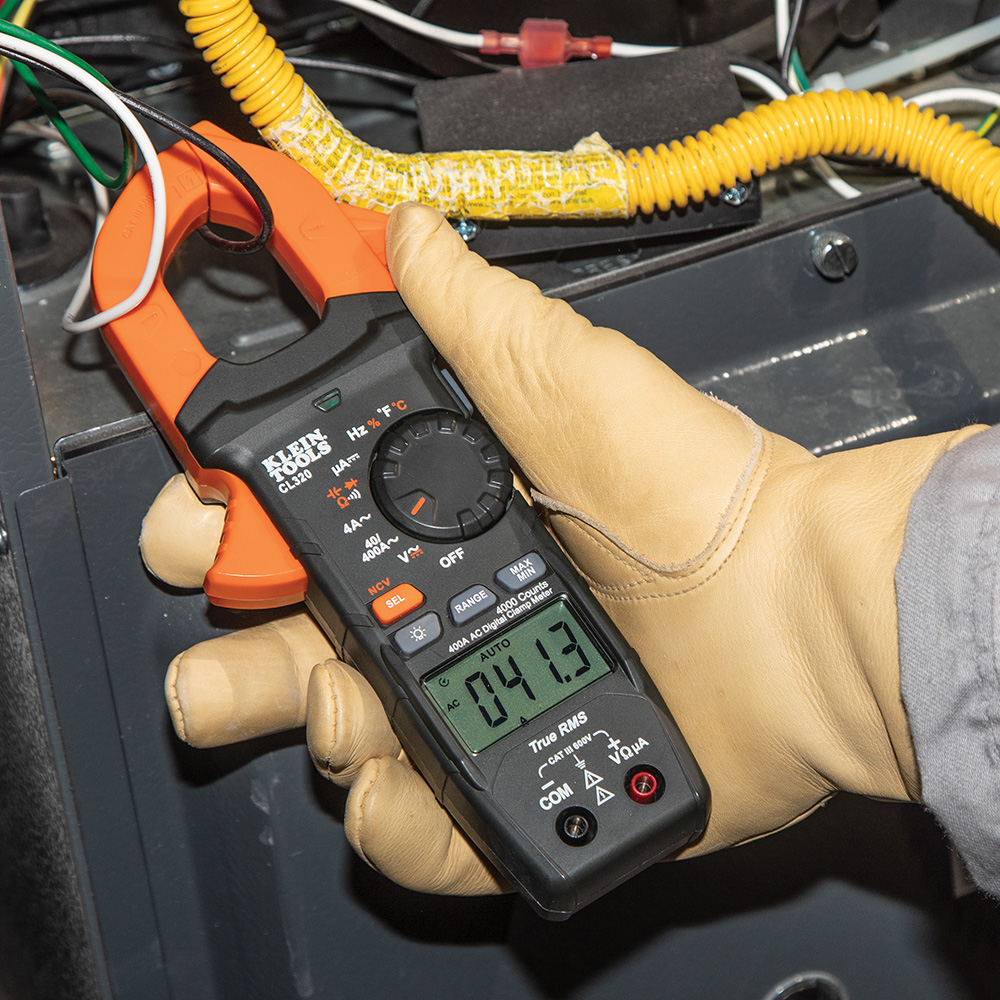

- HVAC system diagnostics and maintenance
- Electrical current measurement in residential, commercial, and light industrial environments
- Testing AC/DC voltage, resistance, frequency, capacitance, and continuity
- Temperature measurement with thermocouple probe
- Non-contact voltage detection for safety checks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Auto power-off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
- Accurate measurements help optimize HVAC system efficiency, reducing energy consumption
Warranty Information
Manufacturer warranty details available upon purchase; typically includes limited warranty against defects.
Available Now
The Wattmaster HVAC Digital Clamp Meter is available for immediate purchase, ideal for HVAC professionals and electricians requiring accurate and reliable electrical measurements.
