ISO Enclosed Isolator 3P 160A | IP65 Aluminium Yellow | Red Handle by NHP
ISO enclosed isolator with 160A rating and IP65 protection—ideal for industrial and commercial power distribution. Built for safety with a padlock locking feature and durable aluminium construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

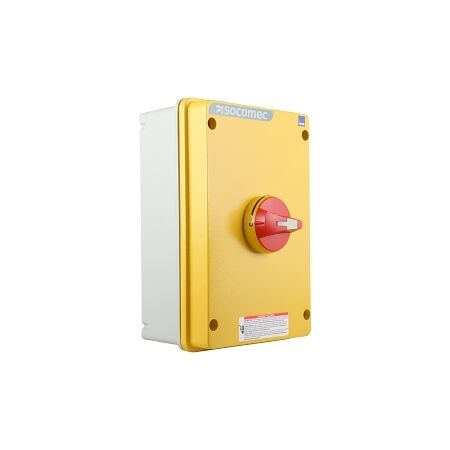

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Aluminium Yellow, Handle - Red, 3P 160A
Brand: NHP
SKU: ISO3160MYS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
Technical Specifications
- Rated Permanent Current: 160 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Short Time Withstand Current: 15 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Operating Voltage: 690 V
- Degree of Protection: IP65
- NEMA Rating: 4X
- Connectable Conductor Cross Section: 50-95 mm²
- Dimensions (H x L x W): 500mm x 213mm x 350mm
- Weight: 1.5 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Rated permanent current of 160A with 3 poles.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and isolation in manufacturing facilities
- Commercial: Electrical installations requiring reliable isolation
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable construction reduces the need for frequent replacements.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
