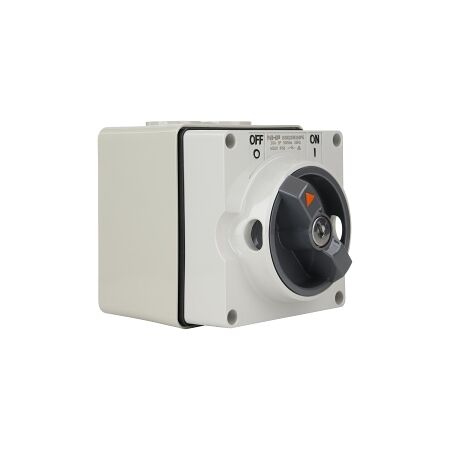

ISO Surface Switch Key Lock | 3 Pole 50A 500V AC | IP66 Rated | Grey by NHP
ISO surface switch with key lock mechanism and 3 pole 50A 500V AC capacity—ideal for industrial and commercial power control. Built for secure operation, with IP66 rating for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP ISO Surface Switch - Key, Lock in ON/OFF, 3 Pole 50A 500V AC, w/ Base, Grey
Brand: NHP
SKU: ISOK2SW350PG
Alternatively Known As: NHP Surface Switch, Key Lock Switch, ISO Switch Disconnector
Technical Specifications
- Rated Operating Voltage: 500 V
- Rated Permanent Current: 50 A
- Number of Poles: 3
- Frequency: 50 Hz
- Material Housing: Plastic
- Degree of Protection: IP66, NEMA 4X
- Connectable Conductor Cross Section: 10-16 mm²
- Dimensions (H x L x W): 101mm x 117mm x 101mm
- Weight: 1.5 kg
Key Features
- Key lock mechanism for secure ON/OFF operation.
- IP66 rated for protection against dust and water.
- 3 pole design suitable for high current applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Power distribution in buildings
- General: Any application requiring a robust surface switch
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP ISO Surface Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power control.
