Isolation Busbar Chassis 250A | 84 Way 3-Pole | Top Feed | IP20 by NHP
Isolation busbar chassis with 250A rated current and 84 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

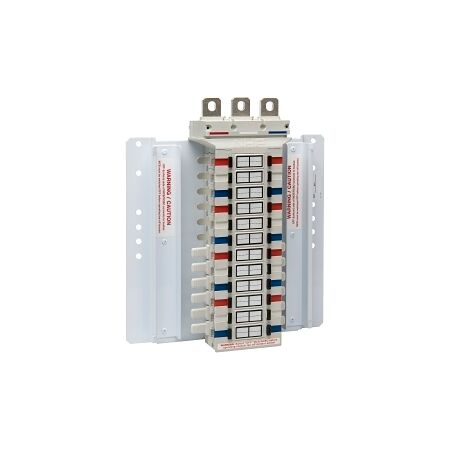

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 84 Way 3Pole Top Feed
Brand: NHP
SKU: GB284183TF
Alternatively Known As: Isolation Busbar, Power Distribution Busbar, DIN Rail Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 84
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.2 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Tee Off Isolator: Yes
- Capped Tee Offs: 0.5
- Degree of Protection: IP20
- Dimensions (H x L x W): 788mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- 250A rated current for high-capacity applications.
- 84 poles with 18mm pitch for flexible configuration.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 84 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
