LED Downlight 10W 3000K Dimmable 75mm Cut-Out Matt White Pira Telbix

BRAND: Telbix
SKU: PIRA DL85-WH93
$62.20 List price: $83.00
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Pira downlight features switchable 6W to 10W LED, 3000K, 500lm, 75mm cut-out and Triac dimming in matt white. Ideal for living areas and halls.

Alternatively Known As: Pira 85 LED Downlight, PIRA DL85-WH93, Recessed LED Downlight, Pinhole Downlight

Technical Specifications
  • Brand: Telbix
  • Model: PIRA DL85-WH93
  • Light Source: Integrated LED COB
  • Selectable Wattage: 6W nominal; 10W maximum
  • Luminous Flux: 500 lm
  • Colour Temperature: 3000K warm white
  • Colour Rendering Index: CRI >90
  • Beam Angle: 24°
  • Input Voltage: 240V
  • Dimming: Triac dimmable
  • Current Output: 240mA
  • Ingress Protection: IP44 from room side
  • Insulation Classification: IC-4
  • Electrical Protection: Class III low voltage, below 54V
  • Raked Ceiling Compatible: Yes
  • Surge Protection: Yes
  • Material: Aluminium
  • Finish: Matt white
  • Mounting: Recessed

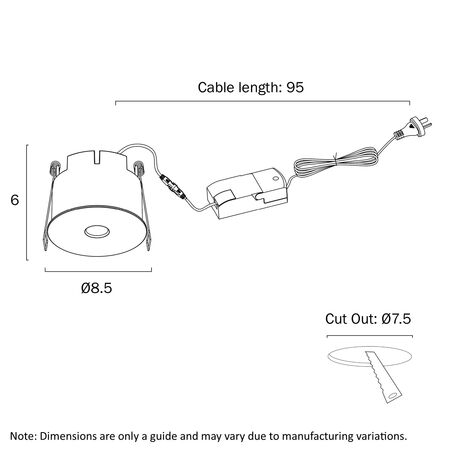

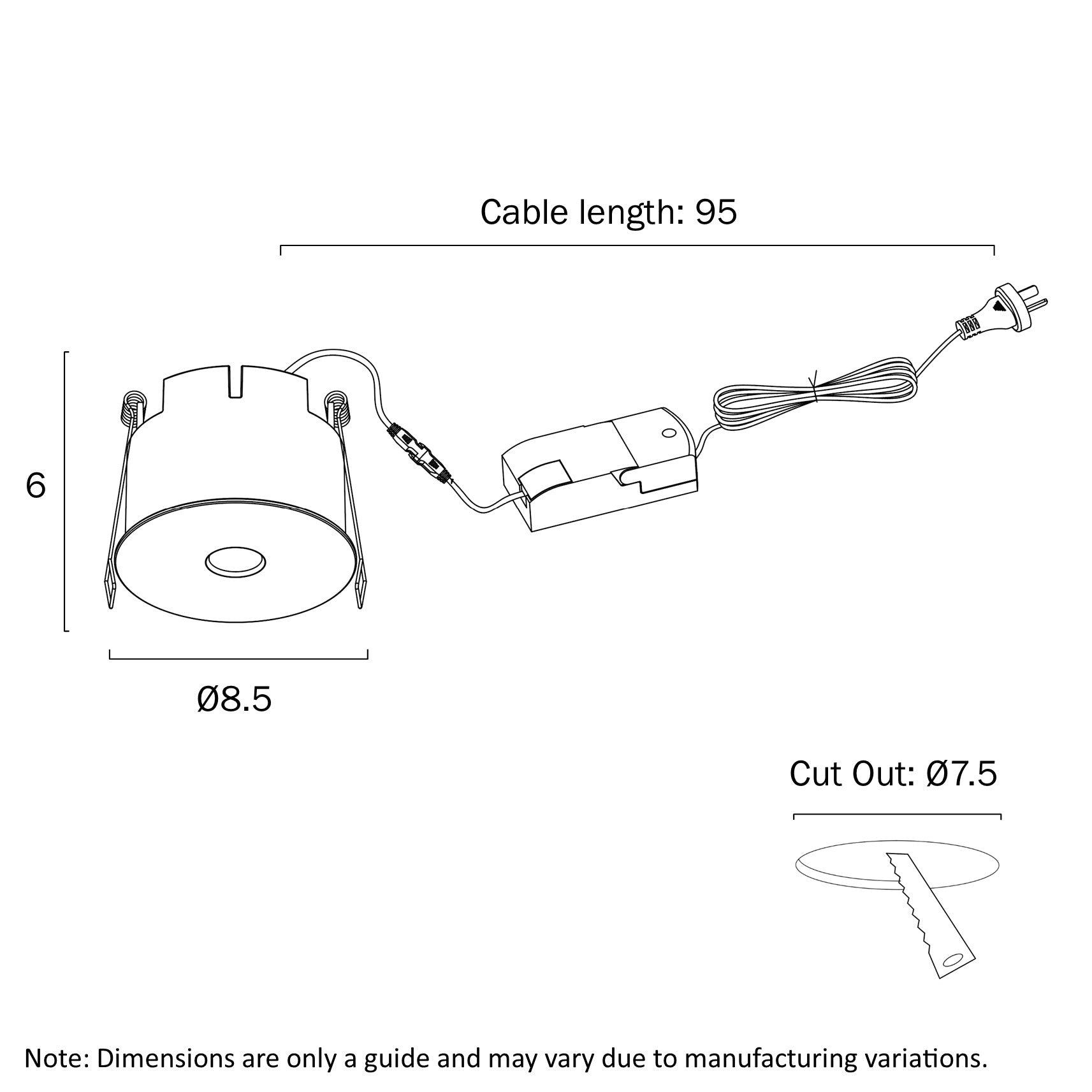

  • Cut-Out Diameter: 75 mm
  • Dimensions (H x L x W): 60mm x 85mm x 85mm
  • Weight: 0.38 kg
Key Features
  • Switchable 6W to 10W LED output
  • Warm 3000K colour temperature for residential interiors
  • High colour rendering with CRI greater than 90
  • Triac dimmable for compatibility with suitable trailing-edge or leading-edge controls
  • Pinhole design for controlled, low-glare illumination
  • Integrated LED light source supplied with the fitting
  • IC-4 insulation classification
  • Suitable for raked ceilings
  • IP44 rating from the room side
  • Compact 75 mm ceiling cut-out
Professional Installation Requirements
  • Must be installed by a licensed electrician in accordance with AS/NZS 3000. Confirm dimmer compatibility, isolate the electrical supply before installation and maintain the required clearances for the IC-4 classification.
Applications
  • Living rooms
  • Hallways and corridors
  • Bedrooms
  • Kitchens
  • Residential interiors
  • Light commercial interior spaces
Standards & Compliance
  • AS/NZS 3000 installation requirements for electrical installations
  • AS/NZS 60598.1 applicable general requirements for luminaires
  • AS/NZS 60598.2.2 applicable particular requirements for recessed luminaires
Environmental Benefits
  • LED technology provides efficient illumination compared with conventional halogen downlights
  • Selectable 6W operating mode can reduce energy consumption where maximum output is not required
  • Aluminium construction is recyclable at end of service life
  • Integrated LED construction can reduce lamp replacement and associated waste
Warranty Information

Telbix provides a general 3-year warranty from the purchase date where no specific product warranty is stated; coverage is generally limited to manufacturing, material and workmanship defects. Installation must be completed by a licensed electrician. Clearance, sale or obsolete products may have a 1-year warranty.

Available Now

Available through Telbix authorised Australian distributors, subject to distributor stock.
