LED Downlight 6-10W 3000K 85mm Cut-Out White Silver Brex Telbix

BRAND: Telbix
SKU: BREX DL93-WHSL93
$48.00 List price: $63.90
+ −
30 Days Return Electricians Unlock Trade Access

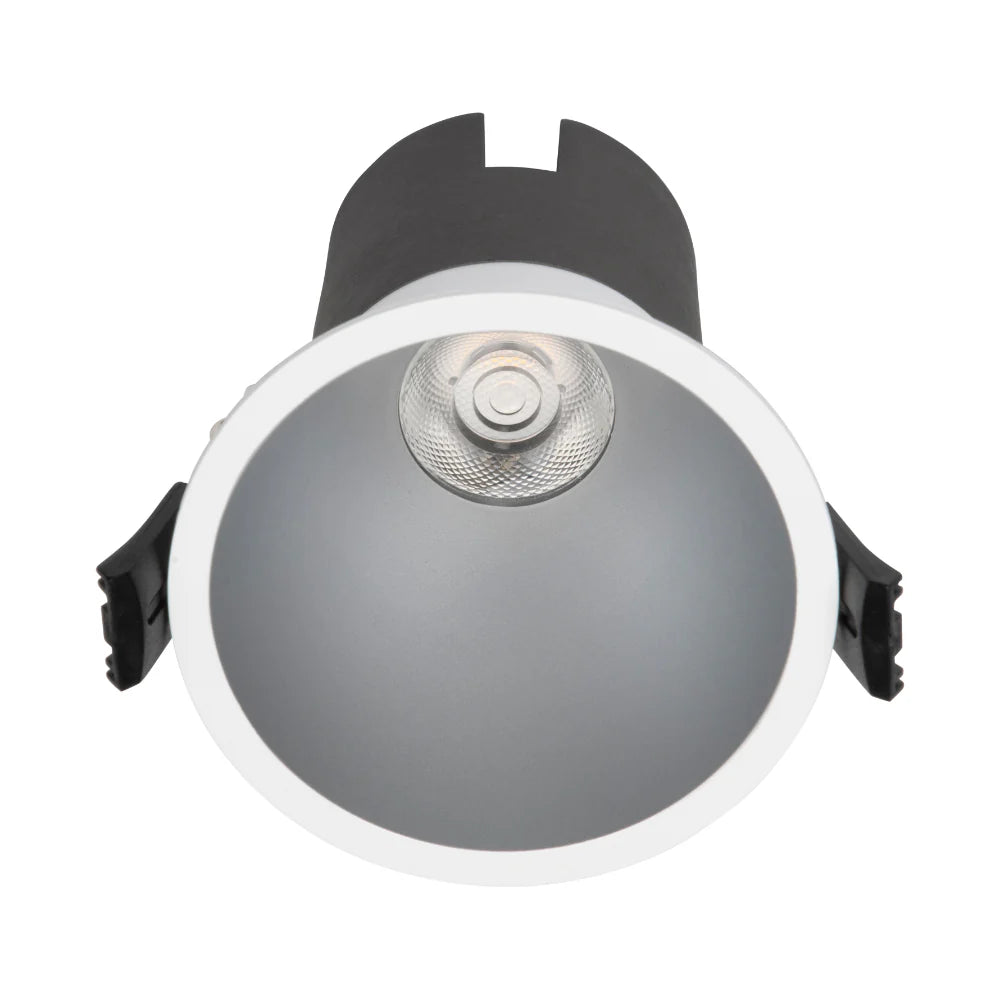

Telbix Brex LED downlight features selectable 6/7/9/10W, 3000K, 870lm, 36 degree beam, TRIAC dimmable and 85mm cut-out in white and silver. Ideal for living areas.

Alternatively Known As: BREX DL93-WHSL93, Brex 93 Downlight, recessed LED downlight

Technical Specifications
  • Selectable Wattage: 6/7/9/10W
  • Nominal Wattage: 6W; maximum 10W
  • Light Output: 870lm
  • Colour Temperature: 3000K warm white
  • Beam Angle: 36°
  • Colour Rendering Index: CRI >90
  • Input Voltage: 240V
  • Dimming: TRIAC dimmable
  • Light Source: Integrated LED COB
  • Current Output: 240mA
  • Power Factor: >0.90
  • Ingress Protection: IP44 on room-facing side
  • Insulation Classification: IC-4
  • Electrical Protection: Class III low voltage, below 54V
  • Surge Protection: Yes, 1.5kVA
  • Mounting: Recessed
  • Lead and Plug: Included
  • Finish: White and silver
  • Material: Polycarbonate
  • Approvals: RCM

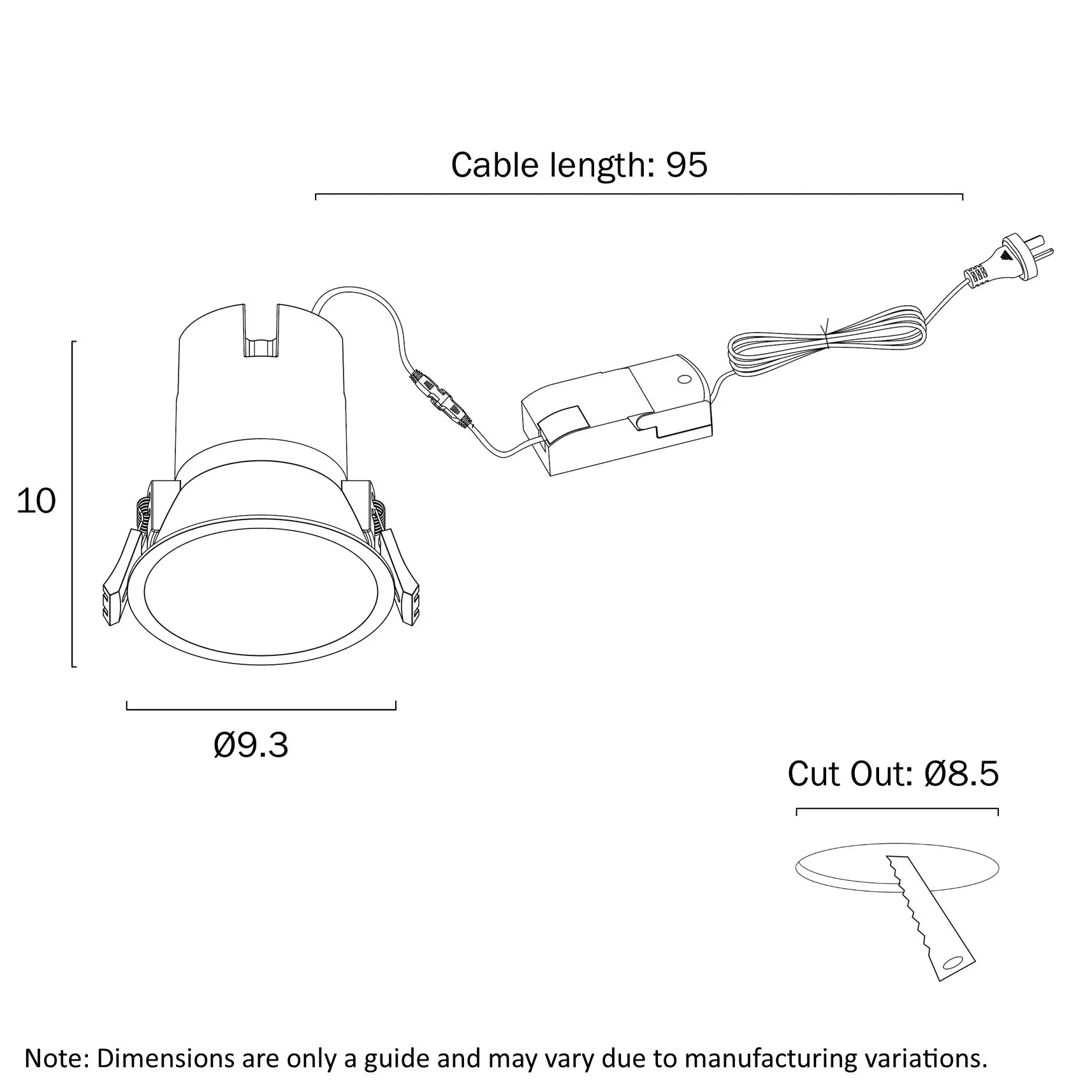

  • Dimensions (H x L x W): 100mm x 93mm x 93mm
  • Weight: 0.36 kg
Key Features
  • Selectable 6/7/9/10W output for flexible installation requirements
  • High-CRI warm white illumination with 870lm output
  • Deeply recessed reflector designed to minimise glare
  • 36° beam angle for focused general lighting
  • TRIAC dimmable for compatible residential and commercial dimmers
  • IC-4 rated for suitable insulated ceiling installations
  • Raked-ceiling compatible
  • IP44 rating on the room-facing side
  • Integrated LED light source with plug and lead included
  • Suitable for living areas, kitchens, bedrooms, hallways and other indoor spaces
Professional Installation Requirements
  • Must be installed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Confirm the downlight's insulation and ceiling classification before installation.
Applications
  • Living areas
  • Kitchens
  • Bedrooms
  • Hallways
  • Residential interior lighting
  • Commercial and trade lighting installations
Standards & Compliance
  • AS/NZS 3000:2018 Electrical Installations – Wiring Rules
  • AS/NZS 60598.2.2:2016 Luminaires – Particular requirements for recessed luminaires
  • RCM approval marking
Environmental Benefits
  • Integrated LED technology provides efficient illumination compared with traditional incandescent or halogen downlights
  • Selectable wattage allows the installer to use the lowest suitable power setting
  • Long-life LED construction can reduce replacement frequency and associated waste
  • IC-4 recessed classification supports installation in insulated ceilings where the installation requirements are met
Warranty Information

5-year replacement warranty according to the Telbix product datasheet, subject to Telbix warranty terms. Warranty covers manufacturing, material and workmanship defects; installation must be completed by a licensed electrician.

Available Now

Available through Telbix and authorised Australian lighting distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
