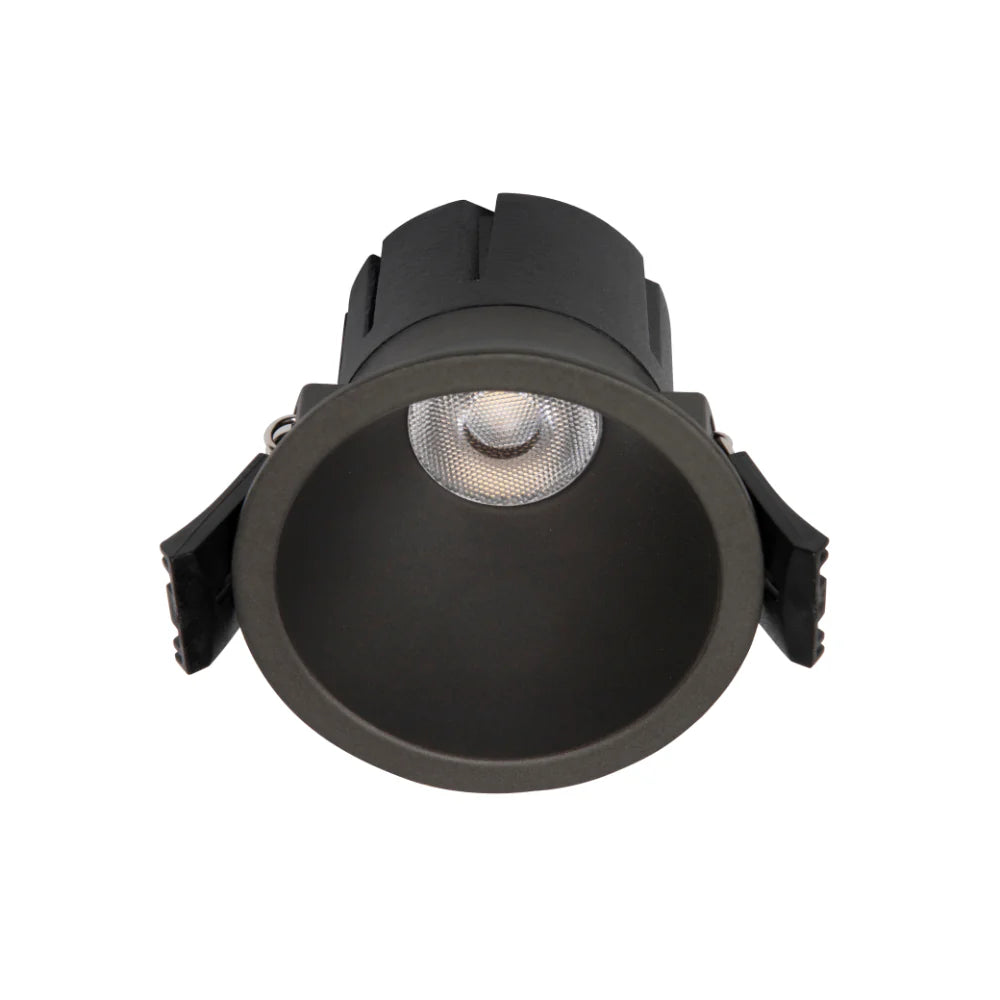

LED Downlight 6W 3000K Dimmable 65mm Cut-Out Grey Umbra Sova Telbix

BRAND: Telbix
SKU: SOVA DL70-DGY93
$60.30 List price: $80.40
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Sova downlight features 6W LED 3000K 630lm, triac dimming and IP44 rating with 65mm cut-out in grey umbra. Ideal for kitchens and bathrooms.

Alternatively Known As: SOVA DL70-DGY93, Sova 70mm recessed LED downlight, Grey Umbra LED downlight

Technical Specifications
  • Light Source: Integrated COB LED
  • Power: 6W
  • Luminous Output: 630 lm
  • Colour Temperature: 3000K warm white
  • Colour Rendering Index: CRI >90
  • Dimming: TRIAC dimmable
  • Beam Angle: 36°
  • Input Voltage: 220–240V AC, 50Hz
  • Electrical Protection: Class III low voltage, below 54V
  • Insulation Rating: IC-4, suitable for approved insulation types
  • Ingress Protection: IP44 from the room side
  • Material: Aluminium fixture with acrylic diffuser
  • Surge Protection: Yes
  • Cable Length: 950mm
  • Approval: RCM
  • Cut-Out: 65mm
  • Dimensions (H x L x W): 63mm x 70mm x 70mm
  • Weight: 0.3 kg
Key Features
  • Integrated 6W LED producing 630lm at 3000K
  • TRIAC dimmable for compatibility with suitable wall dimmers
  • Compact 70mm face with a 65mm ceiling cut-out
  • 36° beam angle for focused general or task lighting
  • CRI greater than 90 for improved colour rendering
  • IC-4 insulation rating when installed with permitted insulation
  • IP44 room-side rating for suitable indoor areas such as kitchens and bathrooms
  • Grey Umbra finish with aluminium construction
Professional Installation Requirements
  • Installation, repair and inspection must be performed by a qualified licensed electrician in accordance with AS/NZS 3000:2018. Install only in locations appropriate for the IP44 room-side rating; do not place within a shower zone unless the complete installation is suitable for that location. Telbix specifies compatible glass-wool insulation for the IC-4 installation and prohibits loose-fill insulation. ([files.plytix.com](https://files.plytix.com/api/v1.1/file/public_files/pim/assets/c2/7e/56/5b/5b567ec25d9c1404666487a0/texts/bc/d0/12/69/6912d0bc23b324d6677043a7/SOVA-DL-IM.pdf))
Applications
  • Residential kitchens
  • Bathroom ceilings outside direct shower exposure
  • Hallways, living areas and bedrooms
  • Commercial interior spaces
  • Low-glare accent and task lighting installations
Standards & Compliance
  • Installation requirements: AS/NZS 3000:2018 Electrical installations
  • Insulation test reference stated by the manufacturer: AS/NZS 60695.11.5
  • Manufacturer-listed approval: RCM
Environmental Benefits
  • Integrated LED technology provides efficient illumination compared with traditional halogen downlights
  • Low 6W power consumption can reduce operational energy use in suitable lighting layouts
  • Aluminium construction is recyclable at end of product life
  • Long-life integrated LED construction can reduce lamp replacement frequency and associated waste
Warranty Information

5-year replacement warranty as specified for the Sova 70 downlight. Telbix states that installation must be completed by a licensed electrician and that warranty coverage is limited to manufacturing, material and workmanship defects, subject to its policy and Australian Consumer Law. ([telbix.com](https://www.telbix.com/data_sheet/sova-70mm-led-downlight-dimmable-4701?utm_source=openai))

Available Now

Available through Telbix and authorised Australian lighting distributors. ([telbix.com](https://www.telbix.com/support?utm_source=openai))

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
