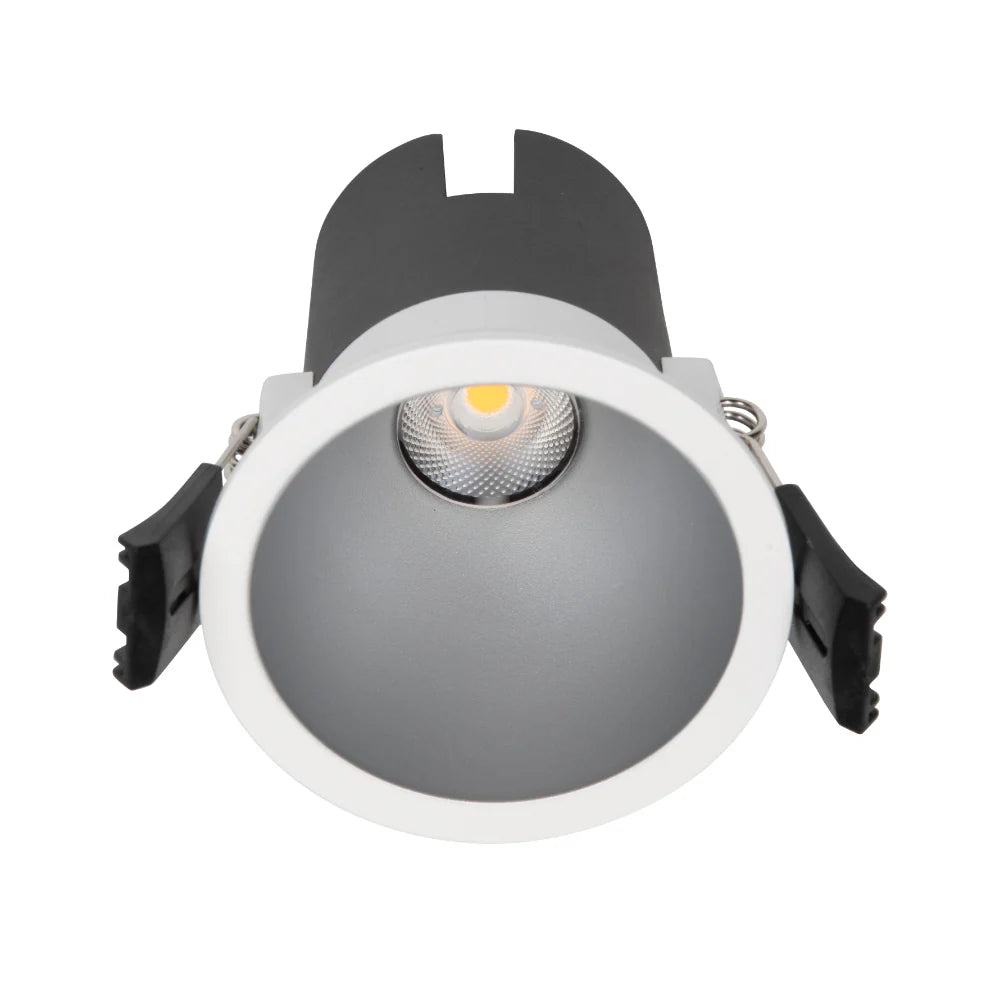

LED Downlight 7W 3000K Dimmable 65mm Cut-Out White Silver Brex Telbix

BRAND: Telbix
SKU: BREX DL70-WHSL93
$44.50 List price: $59.40
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Brex LED downlight features 7W, 3000K warm white, 610lm, 36 degree beam, TRIAC dimmable, IP20 and 65mm cut-out in white and silver. Ideal for living areas.

Alternatively Known As: Brex 70 LED Downlight, Telbix Brex Recessed Downlight, Integrated LED Downlight

Technical Specifications
  • Power: 7 W
  • Light Output: 610 lm
  • Colour Temperature: 3000 K warm white
  • Beam Angle: 36°
  • Dimming: TRIAC dimmable
  • Input Voltage: 240 V
  • Light Source: Integrated LED COB
  • Colour Rendering Index: >90 CRI
  • Ingress Protection: IP44 from the room side
  • Insulation Rating: IC-4
  • Electrical Protection: Class III low voltage, less than 54 V
  • Surge Protection: Yes
  • Material: Polycarbonate
  • Lead and Plug: Included
  • Approvals: RCM
  • Cut-Out: 65 mm
  • Dimensions (H x L x W): 80mm x 70mm x 70mm
  • Weight: 0.26 kg
Key Features
  • Deeply recessed reflector designed to minimise glare
  • High colour rendering performance above 90 CRI
  • Fixed 3000 K warm white light suitable for residential interiors
  • TRIAC dimmable for adjustable light levels
  • IC-4 rated for installation under insulation
  • IP44 protection from the room side
  • Integrated LED source supplied with the fitting
  • White and silver finish
  • Suitable for raked ceilings
  • Pre-wired lead and plug included
Professional Installation Requirements
  • Must be installed by a qualified licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Confirm ceiling classification, insulation clearance and dimmer compatibility before installation.
Applications
  • Living rooms
  • Bedrooms
  • Kitchens
  • Hallways
  • Home offices
  • Retail interiors
  • Commercial indoor areas
Standards & Compliance
  • AS/NZS 3000:2018 Electrical Installations — installation in accordance with Australian wiring rules
  • AS/NZS 60598.2.2:2016 Luminaires — particular requirements for recessed luminaires
  • RCM approval indicated for the product
Environmental Benefits
  • LED technology provides lower operating energy consumption than traditional halogen downlights
  • Integrated LED construction reduces the need for frequent lamp replacement and associated waste
  • Surge protection can help extend the service life of the fitting and reduce premature replacement
  • IC-4 suitability allows installation beneath insulation when installed in accordance with the product classification and wiring rules
Warranty Information

Five-year replacement warranty is listed for the BREX DL70-WHSL93 LED fixture, subject to Telbix warranty terms, proof of purchase and compliant installation by a licensed electrician. Telbix's general policy states that warranty coverage applies to manufacturing defects and that individual product warranty periods may vary.

Available Now

Available through Telbix and authorised Australian lighting distributors.
