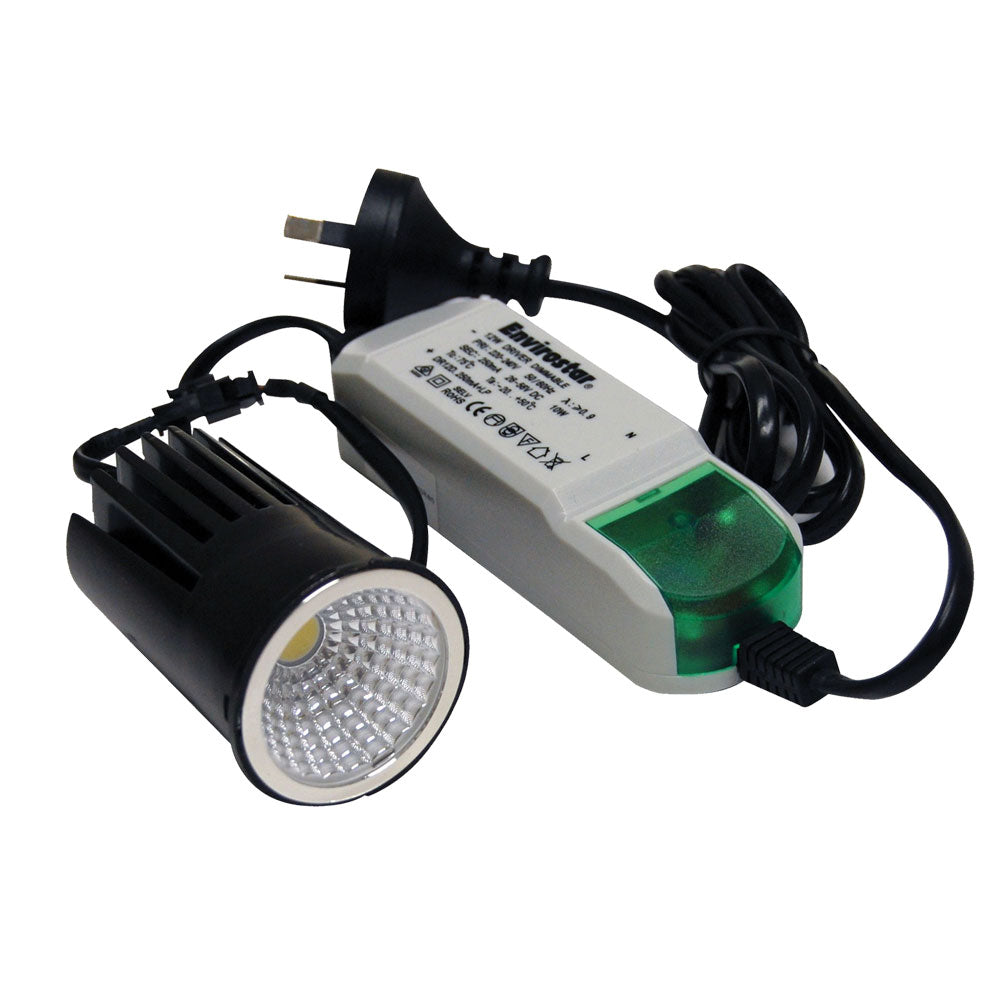

LED Downlight Module MDL-16D-840G2 | 4000K & 5000K Options | Dimmable & IP44 Rated | Black by Telbix

BRAND: Telbix
SKU: MDL-16D-840G2
$48.00
+ −
30 Days Return Delivery Options
Upgrade your indoor lighting with the Telbix MODULE 16 G2 LED downlight module, featuring 4000K and 5000K color temperature options and a dimmable design. Ideal for both domestic and commercial retrofit installations, this energy-efficient module offers impressive 92+ CRI for visual comfort and is IP44 rated for moisture resistance.

Product Name/Title: MODULE 16 G2

Brand: Telbix

SKU: MDL-16D-840G2

Alternatively Known As: LED Downlight Module, Retrofit LED Module, Telbix MDL-16D-840G2, Telbix LED Downlight

Technical Specifications
  • Fixture Color: Black
  • Fixture Material: Aluminium
  • Cable Color: Black
  • Cable Material: PVC
  • Beam Angle: 38 degrees
  • Color Temperature: 4000K (Natural White) or 5000K (Cool White)
  • Color Rendering Index (CRI): >84
  • Current Output: 250mA
  • Dimmable: Yes
  • Globe Type: LED integrated COB
  • Insulation Class: IC-4
  • IP Rating: IP44
  • Lead and Plug: Included
  • Lumens Output: 880 (Cool White) / 900 (Natural White)
  • Power Factor: >0.95
  • Surge Protection: Yes
  • Voltage Input: 240V
  • Maximum Wattage: 10W (Natural White) / 12W (Cool White)
  • Dimensions (H x L x W): 60.0mm x 180.0mm x 110.0mm
  • Weight: 0.45 kg
Key Features
  • High efficiency aluminium reflector
  • Impressive 92+ CRI for visual comfort
  • Dimmable LED integrated COB light source
  • IP44 rated for moisture resistance
  • Surge protection included
  • Power factor greater than 0.95
  • Available in 4000K (Natural White) and 5000K (Cool White) color temperatures
  • Fixture and cable made from durable aluminium and PVC respectively
  • Includes lead and plug for easy installation
Professional Installation Requirements
  • Installation required by a licensed electrician only to ensure safety and compliance.
Applications
  • Domestic indoor lighting
  • Commercial indoor lighting
  • Suitable for retrofit installations with MDL Click-On System frames
Standards & Compliance
  • Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
  • Long lifespan reduces waste and replacement frequency.
Warranty Information

5 years replacement warranty.

Available Now

The Telbix MODULE 16 G2 LED Downlight Module is available now for immediate purchase. Ideal for retrofit indoor lighting in domestic and commercial settings.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
