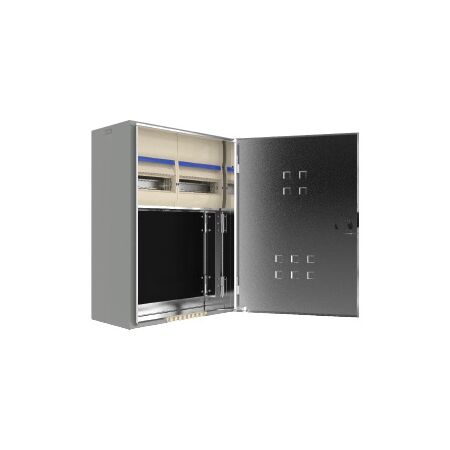

Lock Coin ETSA Standard | Recessed Wall Mount | IP23 Rated | Light Grey by B&R Enclosures

SKU: CL
$65.50 List price: $82.40
+
Lock Coin ETSA Standard with recessed wall mount and IP23 rating—ideal for domestic and light commercial metering installations. Built for durability with 1.0mm galvanised steel and powdercoated light grey finish.

Product Name/Title: Lock Coin ETSA Standard

Brand: B&R Enclosures

SKU: CL

Alternatively Known As: Horizon Metering Box, Bren Metering Solution

Technical Specifications
  • Material: 1.0mm galvanised steel or 316 stainless steel
  • Finish: Powdercoated Light Grey RAL7035 or N4 surface finish
  • IP Rating: IP23
  • Dimensions (H x L x W): 400mm x 200mm x 300mm
  • Weight: 2.5 kg
Key Features
  • Designed for both single and multi-phase installations
  • AS/NZS 3012 compliant for construction sites as standard
  • Provide safety, quality and performance
  • Self closing gravity catch
  • Top cable entry has ratchet aperture shut-off slide
  • RotaDIN rotating / removable DIN section
  • Cord retainer for easy retention of extension cords
  • Circuit identification label area with protective cover
  • Weatherproof installation label for AS/NZS3000 compliance
  • Padlockable facility
  • External frame mounting brackets
  • To suit type 1 and type 2 meter panel
  • Region D wind rated to AS1170.2-2002
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Domestic: Homes and residential buildings
  • Commercial: Light commercial metering installations
Standards & Compliance
  • Complies with AS/NZS 3012 for construction sites and AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Manufactured from recyclable materials, reducing environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Horizon S Series Metering Installation Solution is available now for immediate purchase. Ideal for domestic and light commercial applications.
