Low Profile Cold Cabinet | 700L/h Max Flow | IP44 Protection | by Aspen Pumps
The Low Profile Cold Cabinet is designed for efficient condensate removal in refrigeration units, featuring a maximum flow rate of 700L/h and IP44 protection. Ideal for supermarket refrigeration and OEM applications, this pump's integrated jet flow dispersal system reduces biofilm build-up, ensuring optimal hygiene and performance in shallow access areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile Cold Cabinet | 700L/h Max Flow | IP44 Protection | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3393
Alternatively Known As: Condensate Pump, Refrigeration Condensate Removal Pump, Supermarket Refrigeration Pump, Low Profile Refrigeration Pump
Technical Specifications
- Max flow: 700L/h @ 0 head
- Max head: 20m (Recommended max 18m)
- Tank capacity: 4.6L
- Noise level: 60 dB(A) @ 1m
- Power supply: 230 VAC, 0.6A, 50/60Hz
- Rated non-continuous
- Max water temperature: 40°C / 104°F
- Inlet: 4x 8mm inlet holes with plugs
- Outlet: 10mm / 12mm
- IP Protection: IP44
- Safety switch: 1A Normally closed
- Thermal protection: Yes

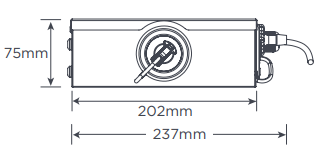

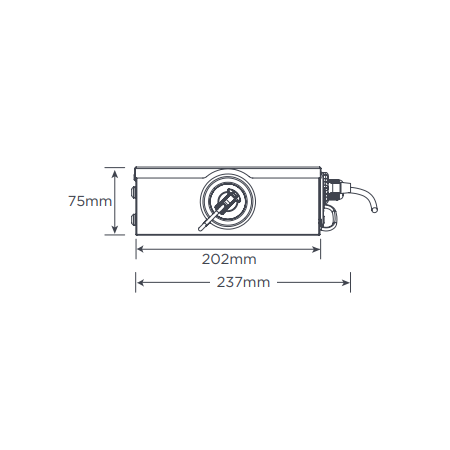

- Dimensions (H x L x W): 75mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Integrated jet flow dispersal system to reduce biofilm build up

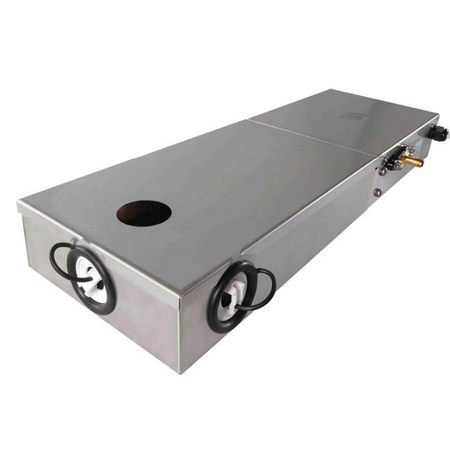

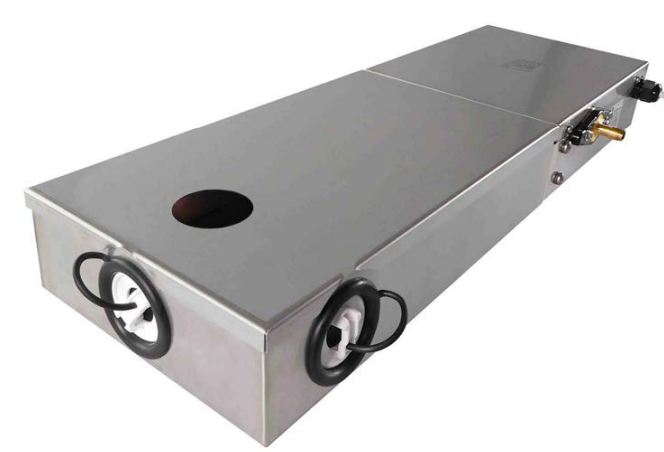

- Robust, abrasion resistant stainless steel casing
- Multiple inlets for flexible installation (top, end & both sides)
- Shallow 75mm height, lower than traditional dairy units
- Removable barbed brass outlet connector for ease of maintenance
- Highest performing Aspen refrigeration pump
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct setup and compliance with safety standards.
Applications
- Refrigeration units, OEM
- Ideal for refrigeration units with shallow access
- Supermarket refrigeration cabinets
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces biofilm build-up, improving hygiene and reducing maintenance frequency
- Energy efficient operation with low power consumption
- Helps maintain refrigeration efficiency by effectively removing condensate
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Low Profile Cold Cabinet Condensate Removal Pump is available for immediate purchase, ideal for supermarket refrigeration and OEM refrigeration units with shallow access.
